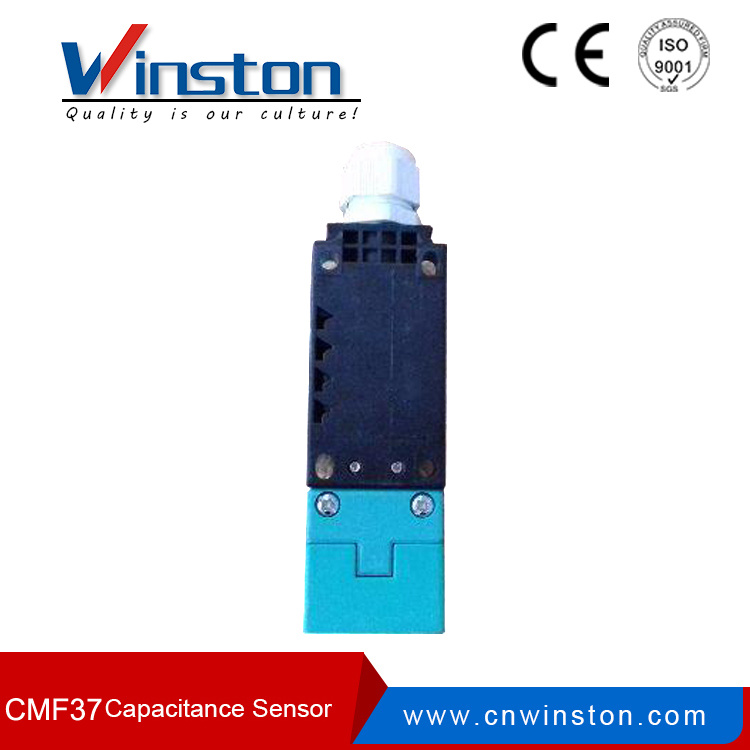

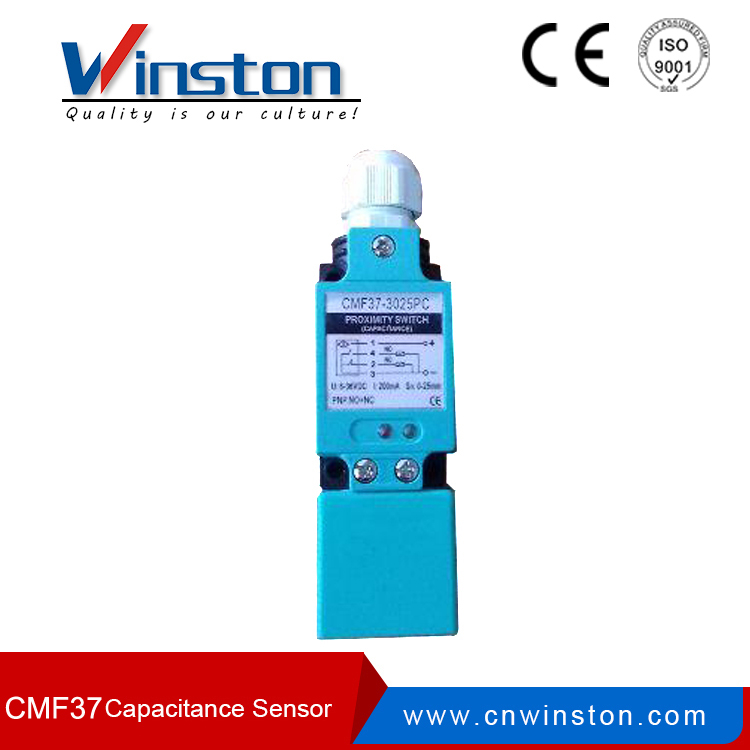

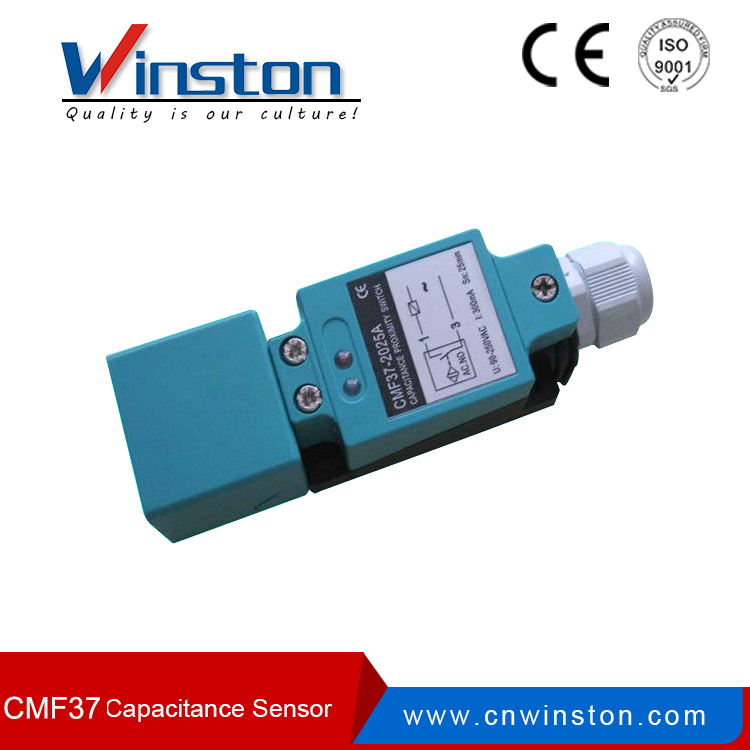

IP67 CMF37 NO NC Angular Column Square Type Capacitive Proximity Switch Sensor

Quantity:
  • CMF37-3025
  • WINSTON
Technical Data

Compact volume
Wide voltage range
Diversified exterior structures

high precision of repeated location

Good performance of anti-interference.

Dust proof,vibration proof,waterproof and Oil-proof.



Non-flush Detection distance 0-25mm
DC10-30V NPN NO CMF37-3025NA
NC CMF37-3025NB
NO+NC CMF37-3025NC
PNP NO CMF37-3025PA
NC CMF37-3025PB
NO+NC CMF37-3025PC
AC90~250V two wire system NO CMF37-3025LA
NC CMF37-3025LB
SCR Control label silicon  NO CMF37-3025A
NC CMF37-3025B
Control output DC 200mA
AC 300mA
Output voltage drop DC/AC DC<3V  AC<10V
Consumption current DC<15mA  AC<10mA
Detected object Conductor and Directric Body
Repeated precision 0.05
DC/AC Response frequency 50Hz/10Hz
Working environment temperature –25℃~75℃
Insulation resistance 50MΩ
Shell material ABS Plastic
Protection grade IEC standard IP54
Altemative model at home and abroad

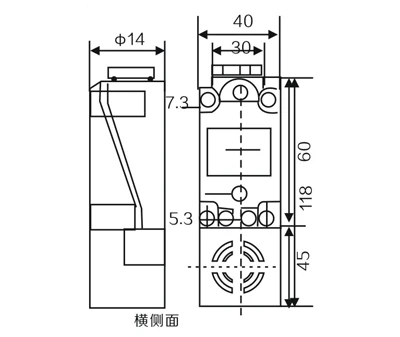

Dimension



Application



Packaging & Shipping
