UB500-18GM-U-V1
Winston
Analog Ultrasonic Sensor Level Switch (UB500-18GM-U-V1)
Technical Parameters
UB500-18GM-U-V1 | ||||||||
Technical data | ||||||||
Sensing distance | 30…500mm | |||||||
Adjustment range | 50…500mm | |||||||
Unusable area | 0…30mm | |||||||
Standard target plate | 100mm×100mm | |||||||
Transducer frequency | About 380kHz | |||||||
Response delay | About 50ms | |||||||
Indicators/Operating means | ||||||||
LED blue | Power on | |||||||
LED yellow | indication of the switching state Flashing: program function object detected | |||||||
LED red | permanently red: Error Red,flashing: program function,object not detected | |||||||
Electrical specifications | ||||||||
Operating voltage UB | 10…30VDC,ripple10%ss | |||||||
No-load supply current | ≤45mA | |||||||
Output | ||||||||
Output type | 1 analogue output 0…10V | |||||||
Resolution | 0.11mm at max.sensing range | |||||||
Deviation of the characteristic curve | ±1% of full-scale value | |||||||
Repeat accuracy | ±0.1% of full-scale value | |||||||
Load impedance | >1k Ohm | |||||||
Temperature influence | ±1.5% of full-scale value | |||||||

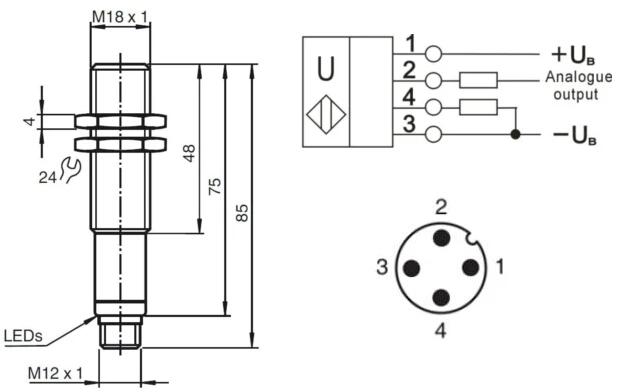

Mechanical specifications | ||||||||
Protection grade | IP67 | |||||||
Connection | connector(M12×1),4-pin | |||||||
Material Housing | brass,nickel-plated | |||||||
Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane,cover PBT | |||||||
Packaging & Shipping
