Ultrasonic Sensor Waterproof NO / NC Switch Type (UB1500-30GM-E4-V1)

Quantity:
  • UB1500-30GM-E4-V1
  • Winston

Ultrasonic Sensor Waterproof  NO / NC Switch Type (UB1500-30GM-E4-V1)


Technical Parameters


Ultrasonic Sensor Level Sensor 5m Distance (UB500-18GM-E5-V1)

UB1500-30GM-E4-V1
Technical data
Sensing distance 65…1500mm
Adjustment range 70…1500mm
Unusable area 0…65mm
Standard target plate 100mm×100mm
Transducer frequency About 175kHz
Response delay About 65ms
Indicators/Operating means
LED blue Power on
LED yellow

indication of the switching state Flashing:

program function object detected

LED red

permanently red: Error Red,flashing:

program function,object not detected

Electrical specifications
Operating voltage UB 10…30VDC,ripple10%ss
No-load supply current ≤45mA
Input
Input type

1 TEACH-IN input Operating distance A1:-UB…+1V, operating distanceA2:+6… + UB Input impedance:>4.7KΩ

TEACH-IN programmable pulse :  ≥1S

Output
Output type 1 switch output E4,PNP NO/NC, programmable
Rated operational current 200mA,short-circuit/overload protected
Default setting Switching point A1:70mm Switching point A2: 800mm
Voltage drop ≤ 3V
Repeat accuracy ≤ 1%
Switching frequency f ≤ 4 HZ
Mechanical specifications
Protection grade IP67
Connection V1 connector(M12×1),4-pin
Material Housing brass,nickel-plated
Transducer

epoxy resin/hollow glass sphere mixture;

foam polyurethane,cover PBT

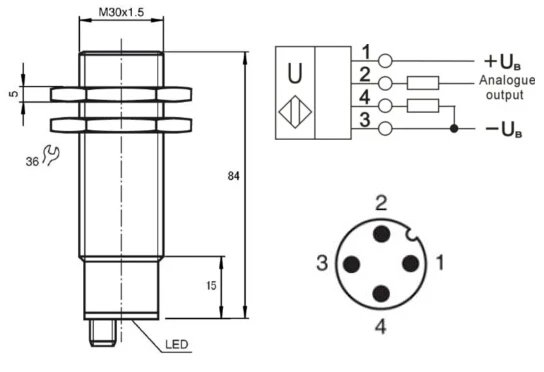

Ultrasonic Sensor Waterproof Position Sensor (UB1500-30GM-E4-V1)
