Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor

The 16A-63A monopole contactor is an AC contactor with a width of only 18mm. The product uses M5 wiring screws with a maximum wiring capacity of 25mm2. The product uses hidden coil terminal design, with larger and safer electrical clearance

Pole:	2P 4P
Availability:

Quantity:



Inquire Add to Basket

Model:
BMC7-16-32
Brand:
Winston/OEM

Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor

Products Description

Higher current :

The product is only 18mm wide and has a maximum current of 63A

Greater wiring capacity :

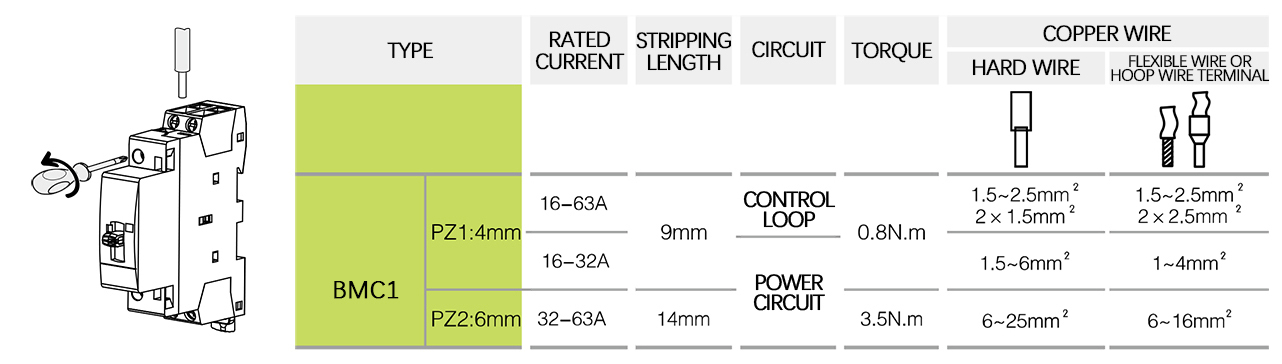

M5 cable screw, the maximum cable connection capacity is 25mm2

safer :

Hidden coil terminals for greater and safer electrical clearance

Two kinds of contacts :
The normally open and normally closed contacts are optional

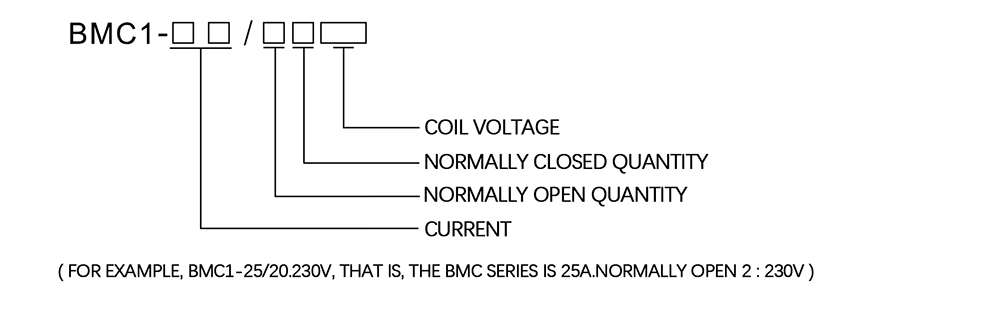

Model Explanation

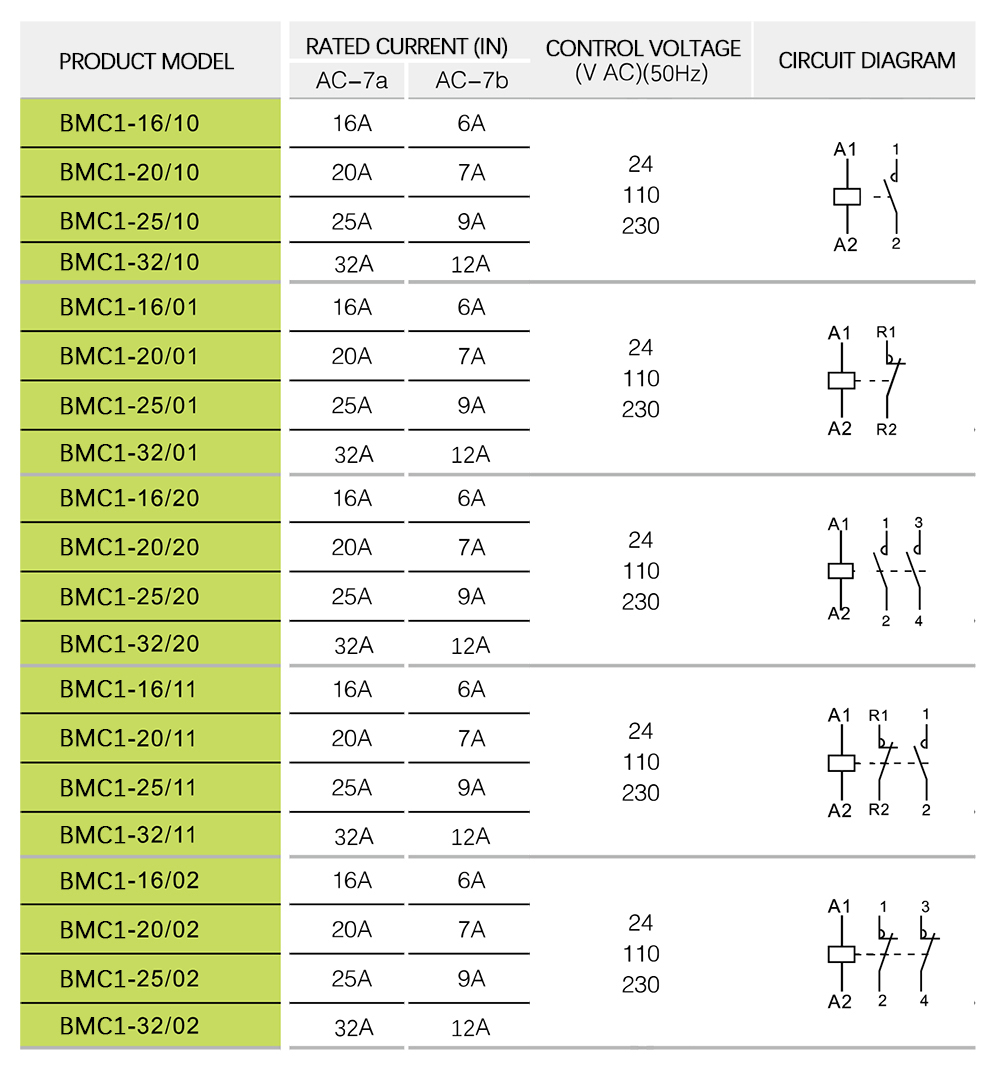

Technical parameter

参数1

Specifications

Main circuit
Rated voltage（Ue）		250V AC
Frequency		50/60Hz
Mechanical life		1 million times
Electrical life		100，000 times
Maximum number of switching operations per day		100
Insulation voltage（Ui）		500 V AC
Pollution level		2
Rated impulse tolerance voltage（Uimp）		2.5kV(4kV @ 12/24/48VAC)
Protection grade (IEC 60529)	Contactor body	IP20
	Installed in the distribution box	IP40
Operating temperature		-5℃~+60℃
Storage temperature		-40℃~+70℃
Resistance to humidity and heat (IEC 60068.1)		Class 2 (95% relative humidity at 55℃)
ELSV(Ultra Low Safety Voltage) is compliant with 12/24/48VAC versions
Product control meets the requirements of SELV(safe ultra-low voltage)

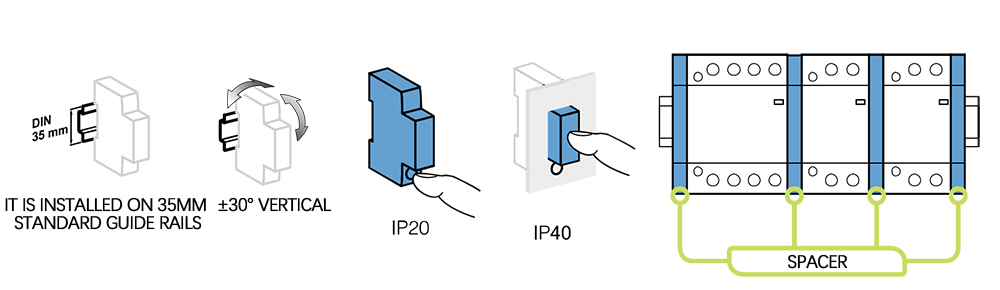

(1) When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation.
