WSTC7 Sereis AC DC Width Voltage Modular Contactor

The WSTC7 modular contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated current operation in the circuit up to 63A, it can control the low-inductance and low-inductance load of household appliances and similar purposes; it can also be used to control the load of household motors. The power should be reduced accordingly.
Availability:
Quantity:
  • WSTC7 Sereis
  • WINSTON

WSTC7 Sereis AC DC Width Voltage Modular Contactor


Applicable scope

The WSTC7 modular contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated current operation in the circuit up to 63A, it can control the low-inductance and low-inductance load of household appliances and similar purposes; it can also be used to control the load of household motors. The power should be reduced accordingly.

The WSTC7 contactors according to standard IEC/EN61095 ,IEC60947-4-1 and are used mainly in buildings for switching and controlling lighting, heating, ventilation and pumps. They are part of the complete range of Din rail products and can be integrated easily in dedicated panels.

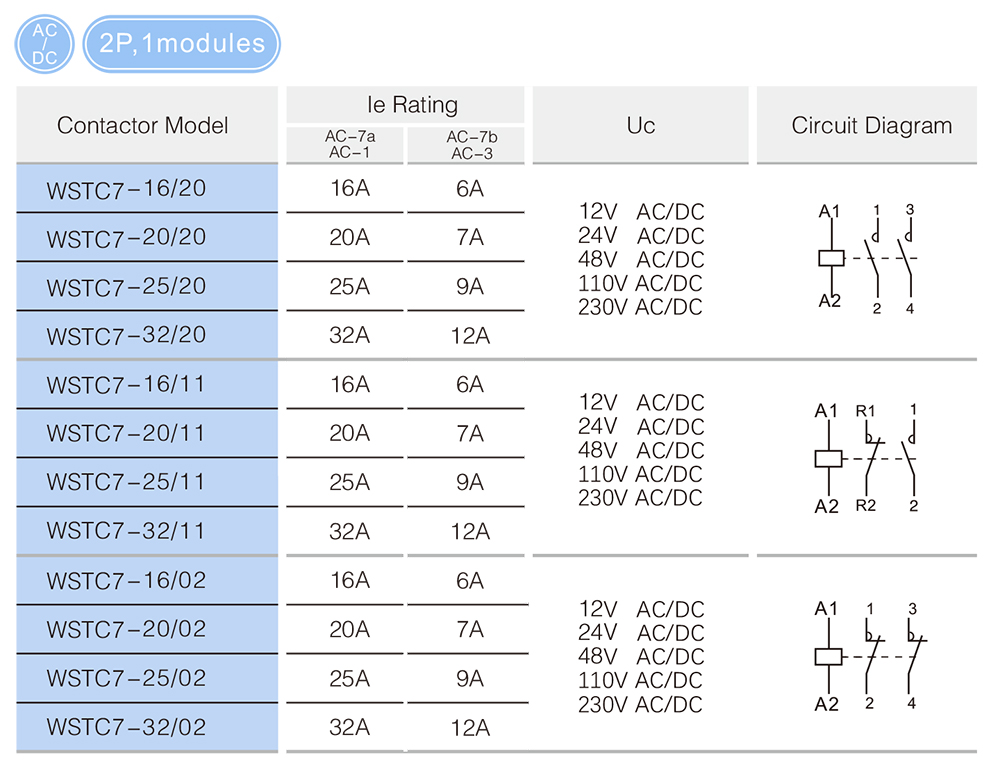

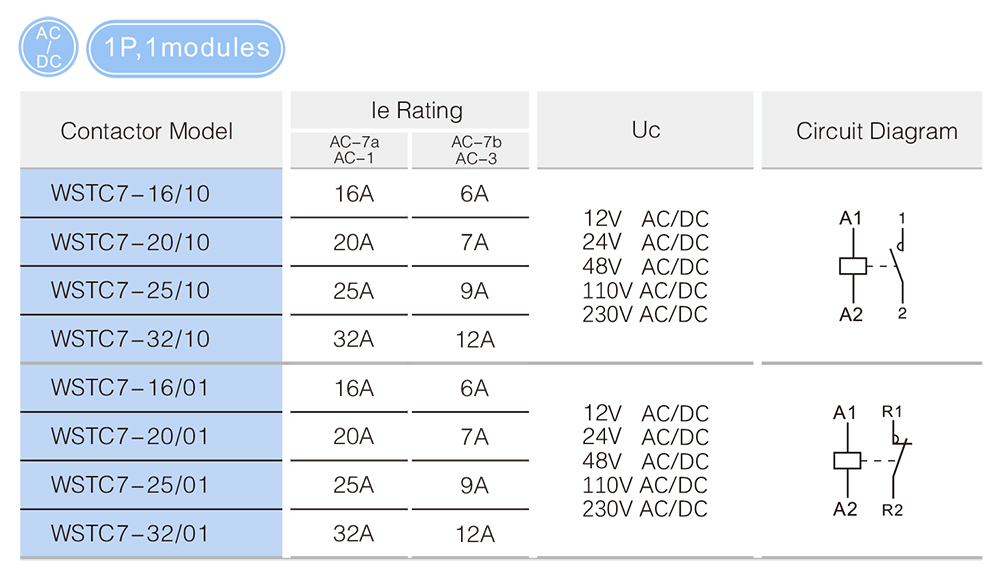

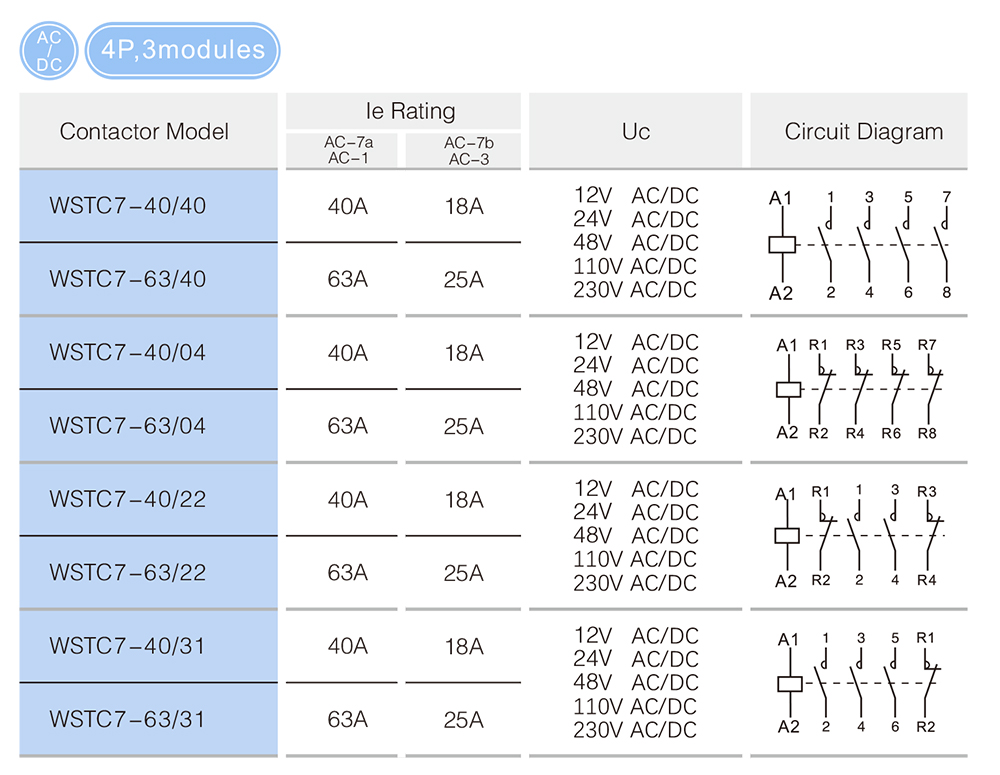

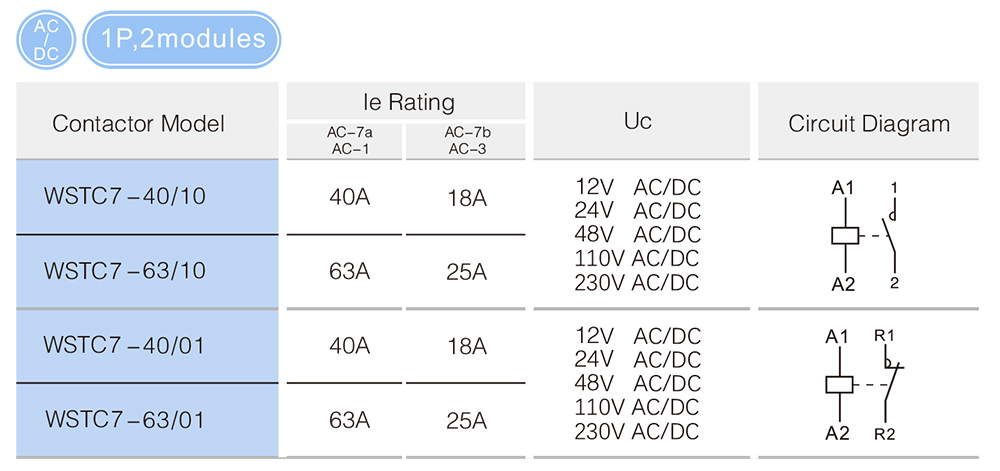

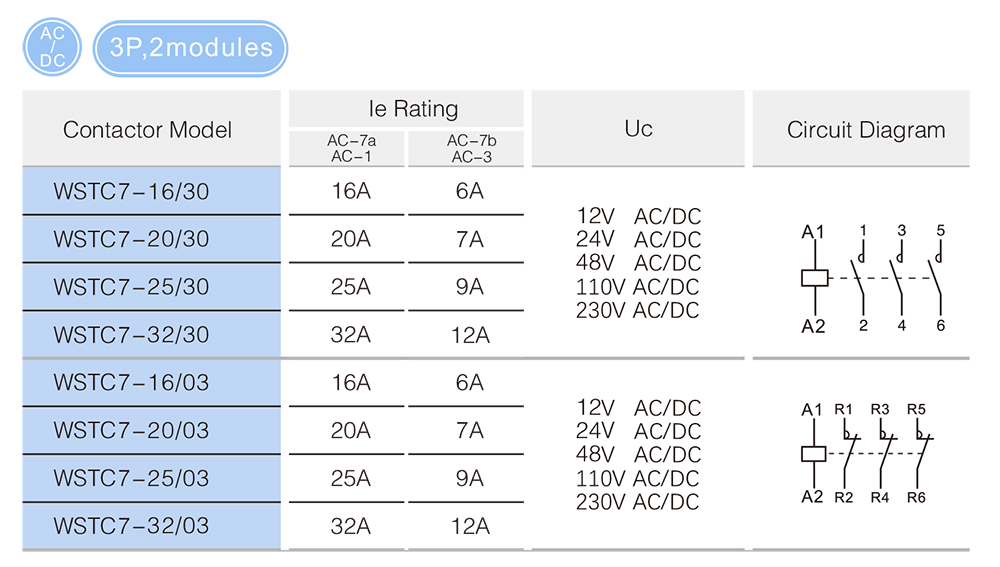

Modular contactor

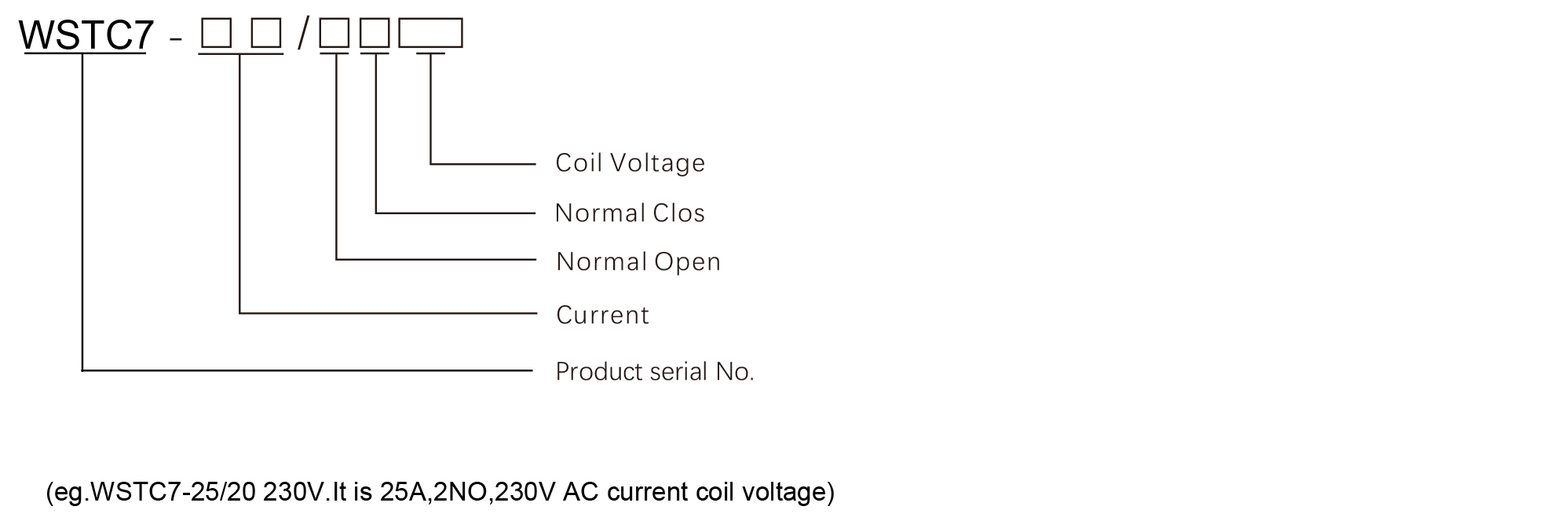

型号12345678

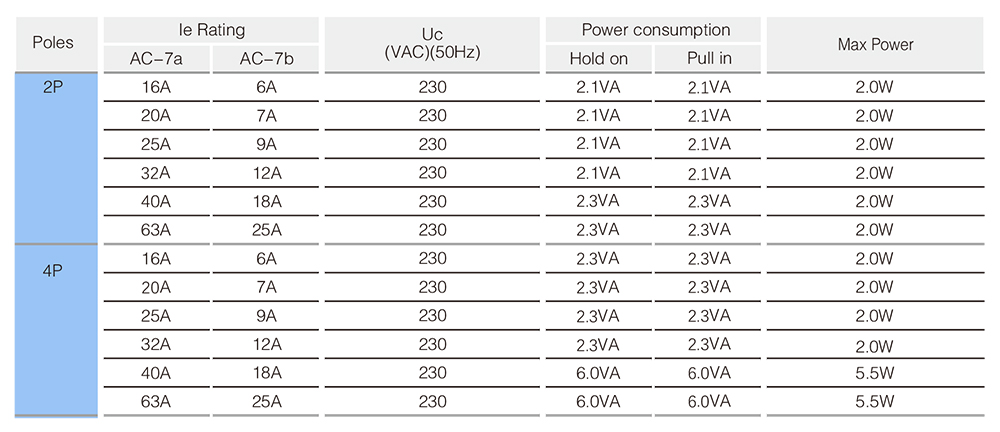

Modular contactor power consumption

power consumption

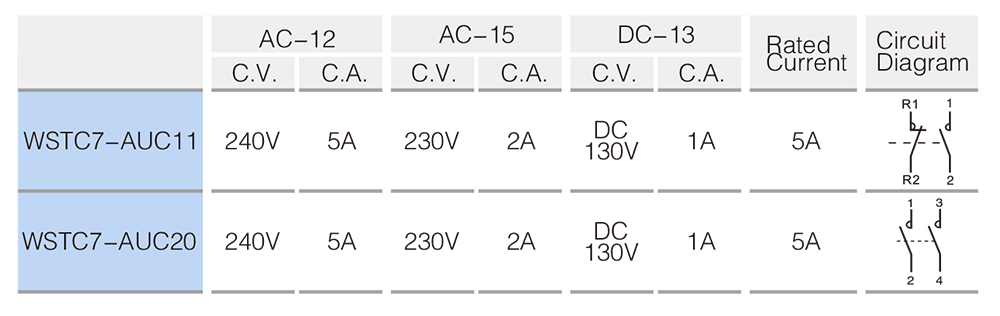

Auxiliary Contacts

  The Auxiliary contacts are indicator contactor contacts status switch OFF or ON

Auxiliary Contacts

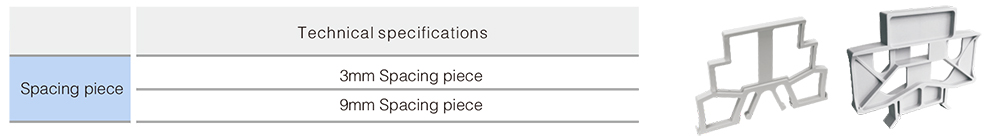

Spacing piece

Spacers are used to reduce the temperature rise of devices mounted side by side. It is recommended

to separate electronic equipment (temperature adjustment devices, programmable timer etc.) from

electromechanical equipment (impulse relays, contactors)

Spacing piece

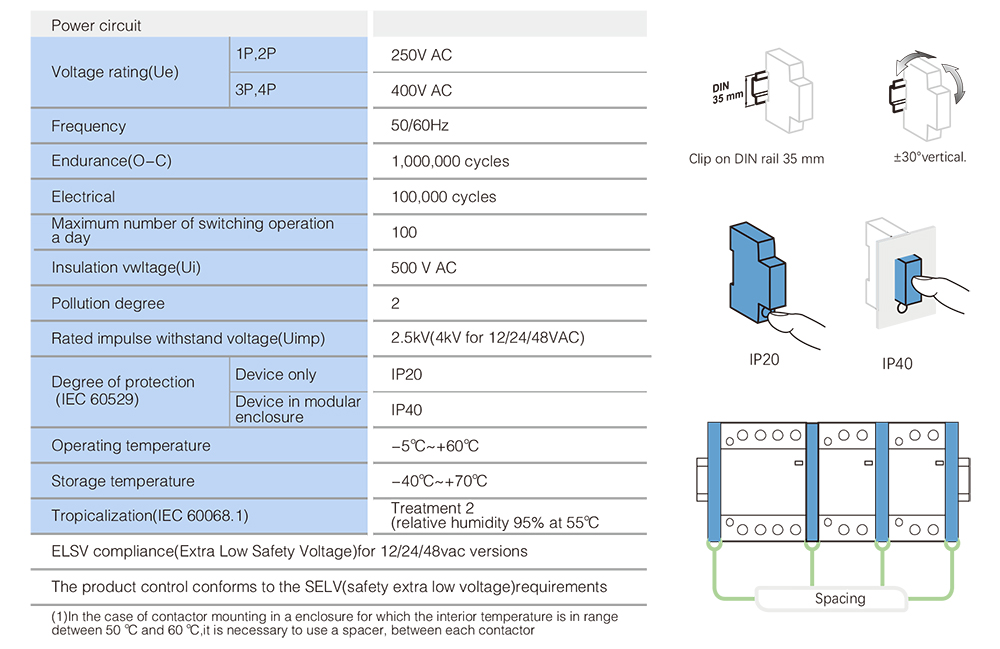

Main parameter and technical performance

Main parameter and technical performance


Packing information

Packing information


Connection parameter

Connection parameter

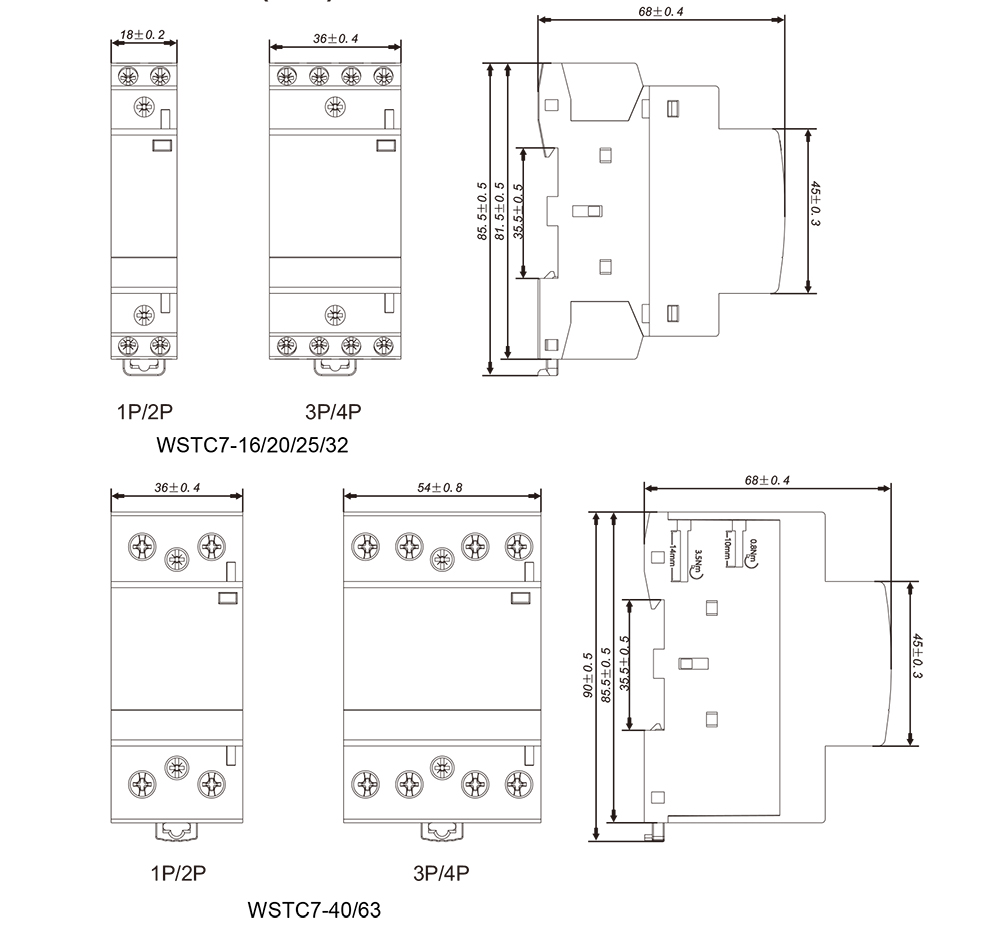

Product dimensions (mm)

Product dimensions (mm)


Packing and Shipping

说明板块_02
