W1241-200
Winston
Main features
· 200A Contact switching capability
· One set of normally open contacts forms
· Coil power consumption is:22~29W Min~Max
· Application Scope:Oil pump startup, Battery truck, Electric forklift,
Electric winch, Electric vehicle, Excavator, Automobile air conditioner.
On off control of DC power supply systems.
· Product features:Small volume, high breaking capacity, sealing protection,
and can adapt to harsh service environment
· Product certification: CE
Application

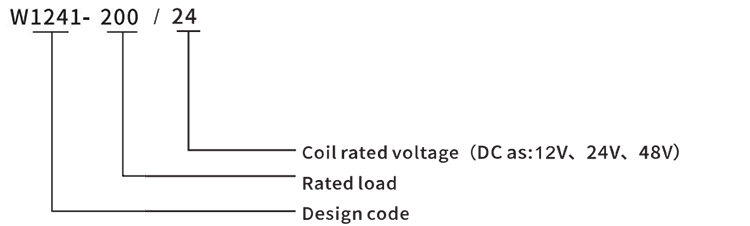

Interpretation of product model
Example:W1241-200/24;Indicates: a group of normally open contacts, sealed type with current of 200A and coil voltage of 24VDC contactor
Performance parameter
Model | W1241-200/□ |
Contact form | One set of normally open |
Contact load | 200A |
Insulation resistance | Min. 100MΩ at 500VDC |
Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
Instantaneous maximum current | 600A ,≤1S |
Pull in time(ms) | ≤30 |
Release time(ms) | ≤50 |
Pull-in voltage (DC V) | 10~70% US |
Release voltage (DC V) | 5~40% US |
Operating ambient temperature | -25℃~+55℃ |
Mechanical life | ≥300,000 second |
Degree of protection | IP67 |
Working system | Short term working system |
Vibration | (10~200)Hz acceleration ≤3.5g |
To attack | (60) Times / minute acceleration 6g |
Coil parameters
Model | Coil voltage (V) | Coil operating voltage(V) | Pull-in voltage(V) | Release voltage(V) | Starting current(A) | Power waste(W) |
W1241-200/□ | 12 | 0.85US~1.1US | ≤70% | 5~40% | ≤2.5 | 22~29 |
24 | ≤1 | 22~29 | ||||
48 | ≤0.6 | 22~29 |

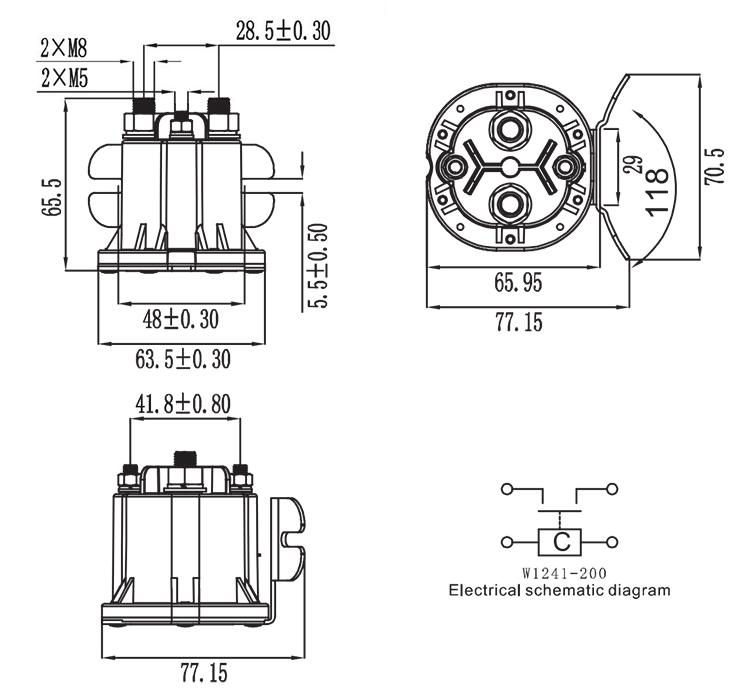

Outline installation dimensions and circuit schematic diagram
Matters needing attention
1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8~10N.m;
Control circuit wiring screw nut tightening torque 1~1.5N.m.
2.The driving circuit power of the product coil must be greater than or equal to the product coil power,
Otherwise the cutting capacity of the product will be reduced.
3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.
Packaging & Shipping
