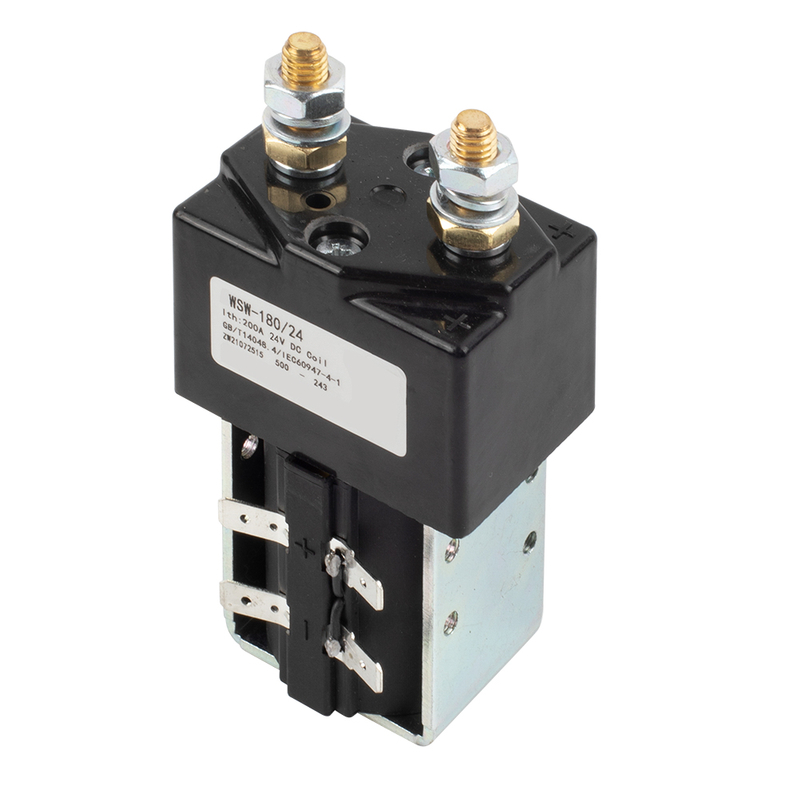

WSW-180
Winston
Main features
· 200A Contact switching capability
· It has a set of normally open contacts
· Coil power consumption is:10~20W Min~Max
· Application Scope:Wind energy,Photovoltaic,Telecommunication and
Communication equipment,Engineering machinery,Battery car,Electric forklift,
Train electrical,Control systems such as ships anduninterruptible power supply
· Technical specifications:GB/T14048.4-2020
· Product compliance: ROHS
· Product certification: CE
Application

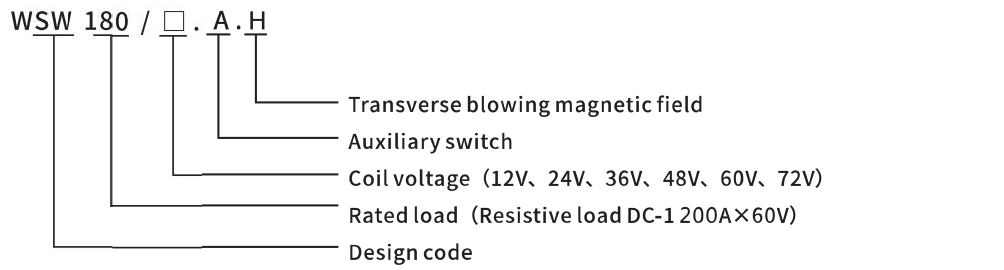

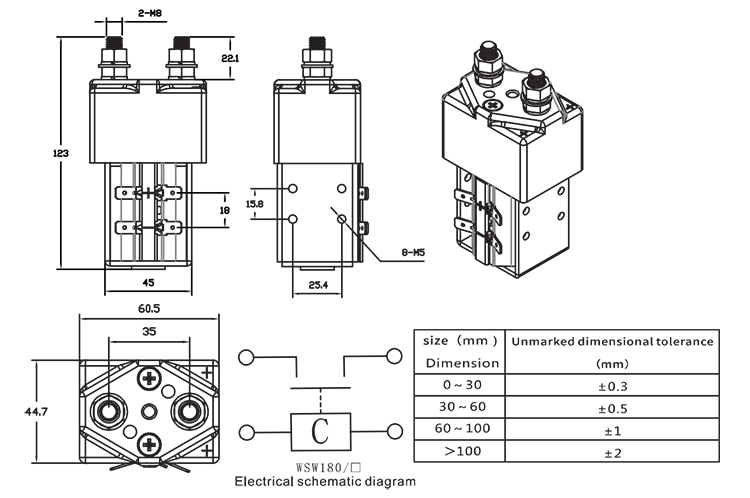

Interpretation of product model
Example:
WSW-180/48;It indicates that the rated current of a group of normally open DC contactors under DC-1 load is 200A and the coil voltage is DC48V。
Performance parameter
Model | WSW-180/□ |
Contact form | 1D (SPST-NO) |
Contact material | Silver alloy |
Contact load | 200A×60VDC(DC-1) |
Contact pressure drop | ≤80mV@200A |
Insulation resistance | Min. 100MΩ at 500VDC |
Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
Pulse width | / ( Only applicable to WSW180M series ) |
Pull in time | Max. 40mSec. |
Release time | Max. 40mSec. |
Pull-in voltage (DC V) | ≤70% US |
Release voltage (DC V) | ≥10% US |
Operating ambient temperature | -25℃~+60℃ |
Storage temperature | -40℃~+65℃ |
Relative humidity | 20%~90% RH |
Mechanical life | ≥150,000 second |
Auxiliary switch | 5A/24V DC;2A/48V DC |
Minimum load of auxiliary contact | 100mA/5V |
Class of pollution | III |
Working system | Continuous working system |
Vibration | (10~200)Hz acceleration ≤3.5g |
To attack | (60) Times / minute acceleration 6g |
Coil parameters
Model | Coil voltage (V) | Coil operating voltage(V) | Pull-in voltage(V) | Release voltage(V) | Starting current(A) | Power waste(W) |
WSW-180/□ | 12 | 0.85US~1.1US | ≤70% | ≥10% | ≤1 | 10~20 |
24 | ≤0.6 | 10~20 | ||||
36 | ≤0.4 | 10~20 | ||||
48 | ≤0.3 | 10~20 | ||||
60 | ≤0.25 | 10~20 | ||||
72 | ≤0.2 | 10~20 |
Matters needing attention
1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8~10N.m;
Control circuit wiring screw nut tightening torque 1~1.5N.m.
2.The driving circuit power of the product coil must be greater than or equal to the product coil power,
Otherwise the cutting capacity of the product will be reduced.
3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.
Packaging & Shipping
Main features
· 200A Contact switching capability
· It has a set of normally open contacts
· Coil power consumption is:10~20W Min~Max
· Application Scope:Wind energy,Photovoltaic,Telecommunication and
Communication equipment,Engineering machinery,Battery car,Electric forklift,
Train electrical,Control systems such as ships anduninterruptible power supply
· Technical specifications:GB/T14048.4-2020
· Product compliance: ROHS
· Product certification: CE
Application
Interpretation of product model
Example:
WSW-180/48;It indicates that the rated current of a group of normally open DC contactors under DC-1 load is 200A and the coil voltage is DC48V。
Performance parameter
Model | WSW-180/□ |
Contact form | 1D (SPST-NO) |
Contact material | Silver alloy |
Contact load | 200A×60VDC(DC-1) |
Contact pressure drop | ≤80mV@200A |
Insulation resistance | Min. 100MΩ at 500VDC |
Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
Pulse width | / ( Only applicable to WSW180M series ) |
Pull in time | Max. 40mSec. |
Release time | Max. 40mSec. |
Pull-in voltage (DC V) | ≤70% US |
Release voltage (DC V) | ≥10% US |
Operating ambient temperature | -25℃~+60℃ |
Storage temperature | -40℃~+65℃ |
Relative humidity | 20%~90% RH |
Mechanical life | ≥150,000 second |
Auxiliary switch | 5A/24V DC;2A/48V DC |
Minimum load of auxiliary contact | 100mA/5V |
Class of pollution | III |
Working system | Continuous working system |
Vibration | (10~200)Hz acceleration ≤3.5g |
To attack | (60) Times / minute acceleration 6g |
Coil parameters
Model | Coil voltage (V) | Coil operating voltage(V) | Pull-in voltage(V) | Release voltage(V) | Starting current(A) | Power waste(W) |
WSW-180/□ | 12 | 0.85US~1.1US | ≤70% | ≥10% | ≤1 | 10~20 |
24 | ≤0.6 | 10~20 | ||||
36 | ≤0.4 | 10~20 | ||||
48 | ≤0.3 | 10~20 | ||||
60 | ≤0.25 | 10~20 | ||||
72 | ≤0.2 | 10~20 |
Matters needing attention
1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8~10N.m;
Control circuit wiring screw nut tightening torque 1~1.5N.m.
2.The driving circuit power of the product coil must be greater than or equal to the product coil power,
Otherwise the cutting capacity of the product will be reduced.
3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.
