WSW-80
Winston
Main features
• 125A Contact switching capability
• It has a set of normally open contacts
• Coil power consumption：7～16W Min～Max
• Application scope：Wind energy,Photovoltaic,Telecommunication
• Technical specifications：GB/T14048.4-2020
• Product compliance： ROHS
• Product certification: CCC CE
Application
Interpretation of product model
Performance parameter
| Model | WSW-80/□ |
| Contact form | 1D (SPST-NO) |
| Contact material | Silver alloy |
| Contact load | 125A×60VDC（DC-1） |
| Contact pressure drop | ≤80mV@125A |
| Insulation resistance | Min. 100MΩ at 500VDC |
| Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
| Pulse width | / ( Only applicable to WSW80M series ) |
| Pull in time | Max. 30mSec. |
| Release time | Max. 30mSec. |
| Pull-in voltage (DC V) | ≤70% US |
| Release voltage (DC V) | ≥10% US |
| Operating ambient temperature | -25℃~+60℃ |
| Storage temperature | -40℃~+65℃ |
| Relative humidity | 20%~90% RH |
| Mechanical life | ≥150,000 second |
| Auxiliary switch | 5A/24V DC;2A/48V DC |
| Minimum load of auxiliary contact | 100mA/5V |
| Class of pollution | III |
| Working system | Continuous working system |
| Vibration | （10～200）Hz acceleration ≤3.5g |
| To attack | （60） Times / minute acceleration 6g |
Coil parameters
| Model | Coil voltage (V) | Coil operating voltage（V） | Pull-in voltage（V） | Release voltage（V） | Starting current（A） | Power waste（W） |
| WSW-80/□ | 12 | 0.85US～1.1US | ≤70% | ≥10% | ≤1 | 7～16 |
| 24 | ≤0.6 | 7～16 | ||||
| 36 | ≤0.5 | 7～16 | ||||
| 48 | ≤0.3 | 7～16 | ||||
| 60 | ≤0.25 | 7～16 | ||||
| 72 | ≤0.2 | 7～16 |

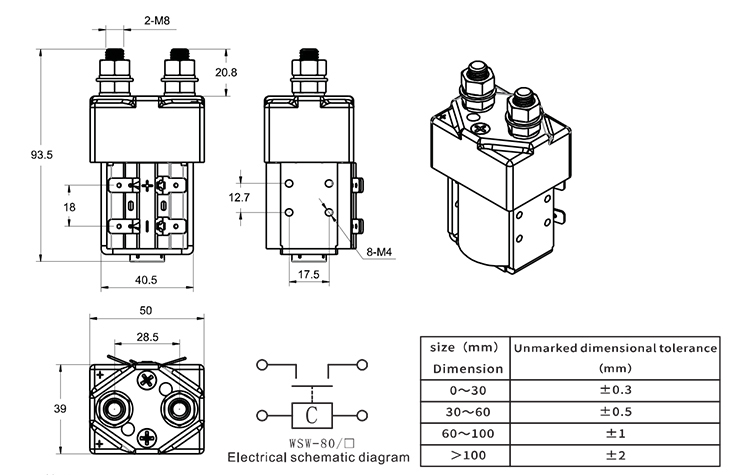

Outline installation dimensions and circuit schematic diagram
1. The length of main circuit connecting bolt of conventional products is M8*20.8mm（See the attached figure）；
If you have special needs, you can customize the lengthened bolt model, and added（.L）, as WSW80/48.L；
2. The model of additional products in brackets is not shown on the nameplate.
Matters needing attention
1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8～10N.m;
Control circuit wiring screw nut tightening torque 1～1.5N.m.
2.The driving circuit power of the product coil must be greater than or equal to the product coil power,
Otherwise the cutting capacity of the product will be reduced.
3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.
Packaging & Shipping
