SS-22 AC Speed Controller For Electric Motor

Availability:
Quantity:
  • SS-22

  • Winston

SS-22 AC Speed Controller For Electric Motor



Working voltage AC220V, 50Hz/60Hz
Rated power 15W, 25W, 40W, 60W, 90W, 120W, 180W, 200W, 250W
Speed range 90-2800R/MIN
Control Formard/Reverse option
Application YYPJ, YCJT, YYCJ Series five cable motor
Outline dimensions 57*40*78mmmm
Mounting Din rail 35mm

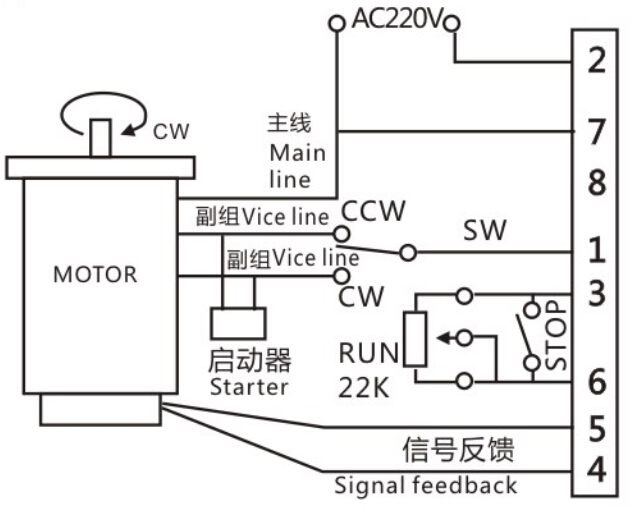

Dimension
