SS-22
Winston
AC Motor Speed Regular Speed Controller SS-22
Technical Parameter
| Model | Voltage (V) | Frequency (Hz) | Max Current (A) | Power (W) | Speed Range (R/Min) | Speed Changer | Speed Responder | Speed Stability | Working temprature | ||||||
| US-11 | 110VAC±10% | 50/60Hz | 5 | 6-140 | 90/1400 | 3% | 0.5 | Excellent | —10℃~+50℃ | ||||||
| US-22 | 220VAC±10% | 6-180 | 90/1700 | ||||||||||||
| SS-11 | 110VAC±10% | 50/60Hz | 5 | 6-140 | 90/1400 | 3% | 0.5 | Excellent | —10℃~+50℃ | ||||||
| SS-22 | 220VAC±10% | 6-180 | 90/1700 | ||||||||||||
| SS-33 | 110VAC±10% | 50/60Hz | 5 | 6-140 | 90/1400 | 3% | 0.5 | Excellent | —10℃~+50℃ | ||||||
| 220VAC±10% | 6-180 | 90/1700 | |||||||||||||
Product Description

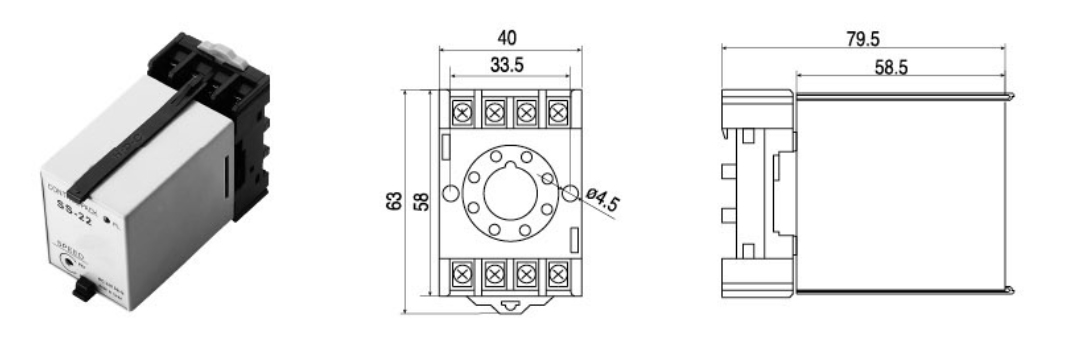

Dimension
Application
AC Motor Speed Regular Speed Controller SS-22
Technical Parameter
| Model | Voltage (V) | Frequency (Hz) | Max Current (A) | Power (W) | Speed Range (R/Min) | Speed Changer | Speed Responder | Speed Stability | Working temprature | ||||||
| US-11 | 110VAC±10% | 50/60Hz | 5 | 6-140 | 90/1400 | 3% | 0.5 | Excellent | —10℃~+50℃ | ||||||
| US-22 | 220VAC±10% | 6-180 | 90/1700 | ||||||||||||
| SS-11 | 110VAC±10% | 50/60Hz | 5 | 6-140 | 90/1400 | 3% | 0.5 | Excellent | —10℃~+50℃ | ||||||
| SS-22 | 220VAC±10% | 6-180 | 90/1700 | ||||||||||||
| SS-33 | 110VAC±10% | 50/60Hz | 5 | 6-140 | 90/1400 | 3% | 0.5 | Excellent | —10℃~+50℃ | ||||||
| 220VAC±10% | 6-180 | 90/1700 | |||||||||||||
Product Description
Dimension
Application
