SP-320 320W AC to DC Single output switching power supply with PFC function

Share to:

SP-320 320W AC to DC Single output switching power supply with PFC function

Features:
•Universal AC input/ full range
•Built-in active PFC function,PF>0.95
•Protections: Short circuit/ Over load/ Over voltage/ Over temperature
•Forced air cooling by built-in DC fan
•Fixed switching frequency at 100KHz
•2 years warranty

Quantity:



Inquire Add to Basket

Model:
SP-320
Brand:
Winston
Code:
8504401990
Model:
SP-320
Trademark:
Winston
Origin:
Made in China
Packing:
Export standard carton box
Unit:
PCS
Min order:
10
TransTime:
3-7days

Technical Data Sheet

Model		SP-320-3.3	SP-320-5	SP-320-7.5	SP-320-12	SP-320-13.5	SP-320-15	SP-320-24	SP-320-27	SP-320-36	SP-320-48
Output	DC voltage	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	36V	48V
	Voltage tolerance	±1%	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Rated current	60A	55A	40A	25A	22A	20A	13A	11.7A	8.8A	6.7A
	Current range	0-60A	0-55A	0-40A	0-25A	0-22A	0-20A	0-13A	0-11.7A	0-8.8A	0-6.7A
	Rated power	320W	320W	320W	320W	320W	320W	320W	320W	320W	320W
	Ripple&noise	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	200mvp-p	220mvp-p	240mvp-p
	DCvoltage ADJ.range	-9%~+10%	-9%~+10%	-9%~+10%	-9%~+10%	-9%~+10%	±10%	±10%	±10%	±10%	±10%
Input	Voltage range	90~264VAC，120~373VDC
	frequency	47~63HZ
	AC current	1.6A/115VAC，0.8A/230VAC
	efficiency	65%	71%	76%	79%	80%	81%	83%	83%		84%
	Inrush current	Cold start current 20A/115VAC，40A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	overload	Rated output power115%~150% start over load protection
	overload	Protection type：cutoff output，auto recovery after fault condition is removed
		Protection type：hiccup mode，auto-recovery after fault condition is removed
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storagetemp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC
Safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	EN55022，CLASSA

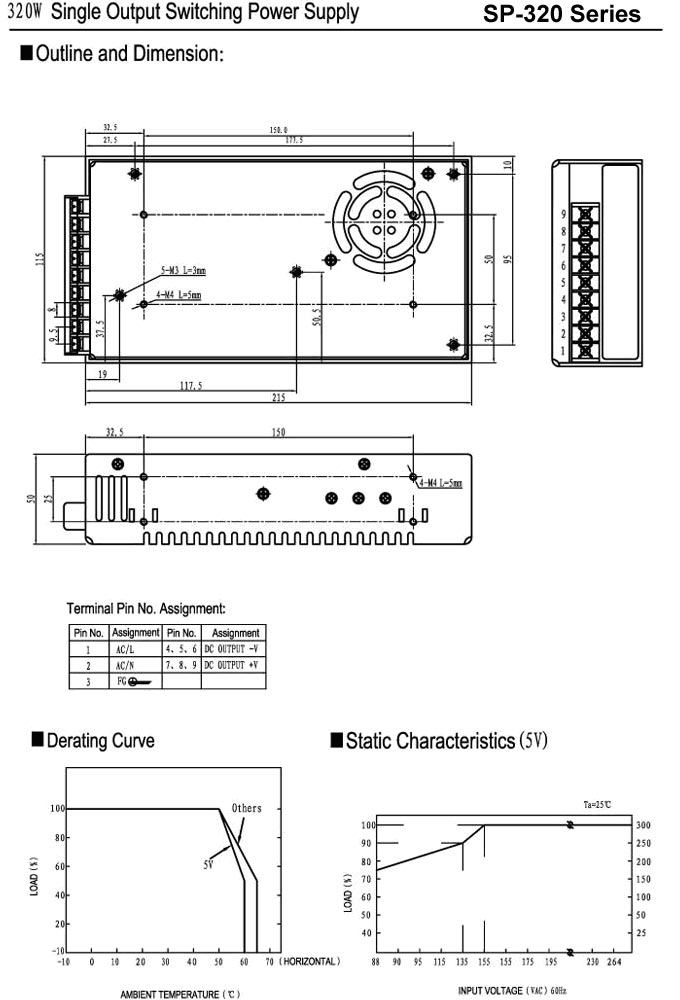

Others	Dimension	21011550mm (LWH)
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
