PSC-60 60W 12V 24V DC Charging Uninterruptible Power Supplies (ups) for Security Access Control System

Share to:

PSC-60 60W 12V 24V DC Charging Uninterruptible Power Supplies (ups) for Security Access Control System

Availability:

Quantity:



Inquire Add to Basket

Model:
PSC-60
Brand:
Winston

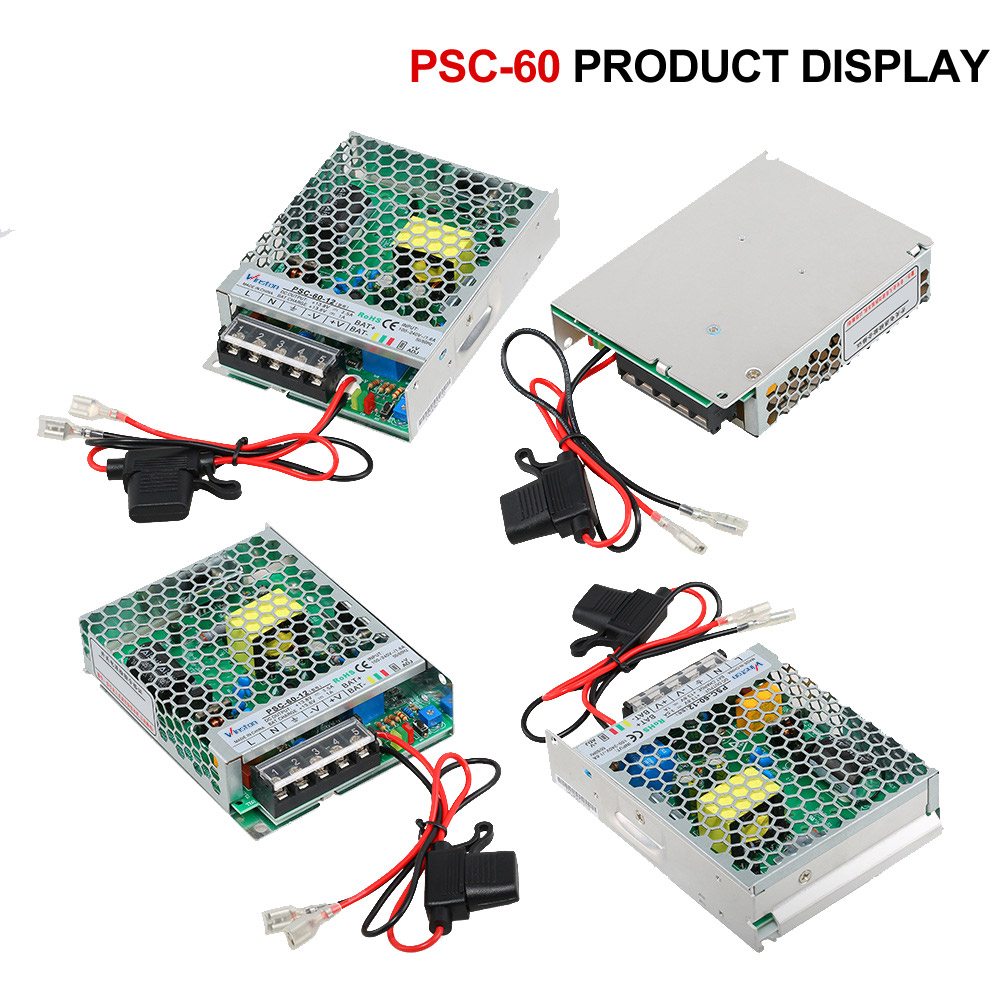

PSC详情页1

Products Description

Delivering stable 60W output with global voltage compatibility (90~264VAC / UPS 135~370VDC), this compact power adapter operates reliably in extreme temperatures (-20°C to +60°C). Its space-saving design (129×97×30mm, 0.38kg) integrates seamlessly into industrial systems, backed by a 3-year warranty for mission-critical applications in automation, telecom, and IoT infrastructure.

PSC-350 350W 24V Ups Uninterrupted Power Supply

PSC-150 150W 12V 24V Industrial Uninterruptible Power Supplies for Homes

PSC-250 250W 24V Single Phase Uninterrupted Power Supply 12v

PSC-100 100W 12V 24V Mini Uninterruptible Power Supplies (ups) Outdoor

SP - 500W AC to DC With PFC Switching Power Supply

SP-320 320W single output pfc power supply with ce

CE ROHS SP-200 200W pfc power supply for VCR

SP-150 150W pfc power supply for Microwave Oven

SP-100w with pfc smps power supply Manufacturer

SP-320 320W AC to DC Single output switching power supply with PFC function

SP-150 150W AC to DC Single output switching power supply with PFC Function

SP-75 Single output switching power supply with PFC Function

SP-500 500W AC to DC Single output switching power supply with PFC Function

SP-200 200W AC to DC Single output switching power supply with PFC function

SP-100 100W AC to DC Single output switching power supply with PFC Function

Model	PSC-60-12	PSC-60-24
Dc output	CH1:13.8V CH2:13.4V	CH1:27.6V CH2:26.5V
Current	3.5A,1A	1.5A,0.7A
Efficiency	86%	88%
Input voltage	90-264VAC/UPS, 135-370VDC, 47-63Hz
Operating temperature	-20 to +60℃
Dimensions	1299730MM
Weight	0.38KGS
Warranty	Three-year

Model	PSC-100-12	PSC-100-24
Dc output	CH1:13.8V CH2:13.8V	CH1:27.6V CH2:27.6V
Current	5A,2A	2.5A,1A
Efficiency	87%	89%
Input voltage	90-264VAC/UPS, 135-370VDC, 47-63Hz
Operating temperature	-20 to +60℃
Dimensions	1299730MM
Weight	0.42KGS
Warranty	Three-year

Model	PSC-150-12	PSC-150-24
Dc output	CH1:13.8V CH2:13.8V	CH1:27.6V CH2:27.6V
Current	7.5A,3A	4A,1.5A
Efficiency	87%	89%
Input voltage	90-264VAC/UPS, 135-370VDC, 47-63Hz
Operating temperature	-20 to +60℃
Dimensions	1599838MM
Weight	0.55KGS
Warranty	Three-year

Model	PSC-250-12	PSC-250-24
Dc output	CH1:13.8V CH2:13.8V	CH1:27.6V CH2:27.6V
Current	14.5A,3.5A	6.5A,2.5A
Efficiency	87%	89%
Input voltage	90-264VAC/UPS, 135-370VDC, 47-63Hz
Operating temperature	-20 to +60℃
Dimensions	21511530MM
Weight	0.75KGS
Warranty	Three-year

Model	PSC-350-12	PSC-350-24
Dc output	CH1:13.8V CH2:13.8V	CH1:27.6V CH2:27.6V
Current	1020A,5A	6.5A,2.5A
Efficiency	87%	89%
Input voltage	90-264VAC/UPS, 120-370VDC, 47-63Hz
Operating temperature	-20 to +60℃
Dimensions	21511530MM
Weight	0.85KGS
Warranty	Three-year
