S-40 40w 100-240v ac/dc led power supply 5V ~ 24v cctv switch mode power supply with CE ROHS

Availability:
Quantity:
  • S-40-5 S-40-12 S-40-15 S-40-24

  • WINSTON

Technical Data

Universal AC input
Low Lost, high efficiency
Protections: Over Load Automatic recovery
Indicator for power on/normal(LED)
100% full loadburn-in test

2 Years Warranty



Model Specification S-40-5 S-40-12 S-40-15 S-40-24
DC output voltage 5V 12V 15V 24V
Output voltage error (Note2) ±2% ±1% ±1% ±1%
Rated output current 8A 3.4A 2.8A 1.7A
Output current rage 0-8A 0-3.4A 0-2.8A 0-1.7A
Wave and noise(Note3) 75mVp-p 100mVp-p 100mVp-p 100mVp-p
Inlet stability(Note4) ±0.5% ±0.5% ±0.5% ±0.5%
Load stability(Note5) ±1% ±0.5% ±0.5% ±0.5%
Efficiency 71% 78% 78% 82%
Adjustable range for DC voltage ±10,-5% ±10% ±10% ±10%
AC input voltage range 90~132VAC/180~264VAC selected by switch
Input current 1.3A/115V  0.65A/230V
AC impulse current Cold-Start Current 18A/115V 36A/230V
Leakage current <0.5mA /240VAC
Overload protection 105%~150% Cut Off the Output, Automatic Recovery
Over-voltage protection ^^
High-temperature protection ^^
Temperature coefficient ±0.03%°C(0~50°C)
Setup rise hold up time 200ms,100ms,20ms/230VAC
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c/70%RH
Working temperature and humidity -10°C~+60°C,20%~90%RH
Store temperature and humidity -20°C~+85°C,10%~95RH
Weight 0.5kg
Packing 34*32*24cm/30pcs/15Kg

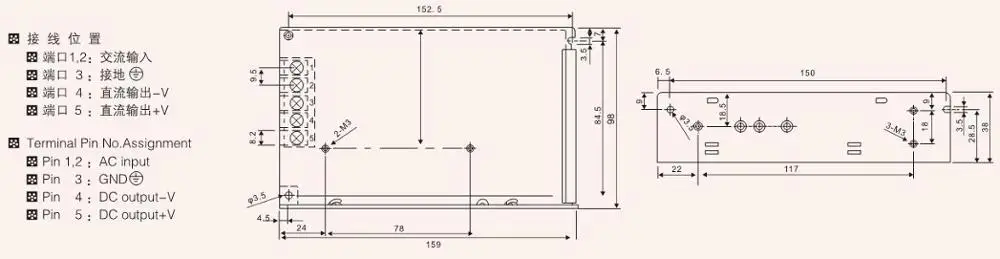

Dimension
