S-600 Series
Winston
600W 48V S-600-48 110V / 220V Power Supply With Cooling Fan
Technical Parameters
| MODEL | S-600-12 | S-600-24 | S-600-36 | S-600-48 |
DC VOLTAGE | 12V | 24V | 36V | 48V |
CURRENT RANGE | 0 ~ 50A | 0 ~ 25A | 0 ~ 16.7A | 0 ~ 12.5A |
EFFICIENCY | 83% | 85% | 86% | 87% |
WAVE & NOISE | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| ADJUSTABLE RANGE FOR DC VOLTAGE | ±10% | ±10% | ±10% | ±10% |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
SETUP, RISE HOLD UP TIME | 800ms, 200ms,36ms/230VAC at full load | |||
VOLTAGE RANGE | 90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | |||
IMPACT CURRENT | Cold start current 25A/115VAC 50A/230VAC | |||
WORKING TEMP. | -10 ~ +50ºC | |||
OVERLOAD PROTECTION | 105%-150% cut off the output , automatic recovery | |||
OVER VOLTAGE PROTECTION | 105%-150% shunt down O/P voltage,re-power on to recover | |||
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms | |||

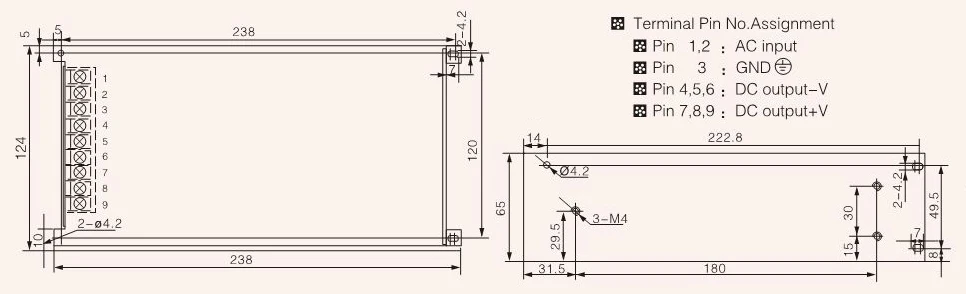

DIMENSION | 238*124*65mm (L*W*H) | |||
WERIGHT | 1.5kg | |||
PACKING | 44*26*27cm/12pcs/18Kg | |||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a fin | ||||
Packaging & Shipping
