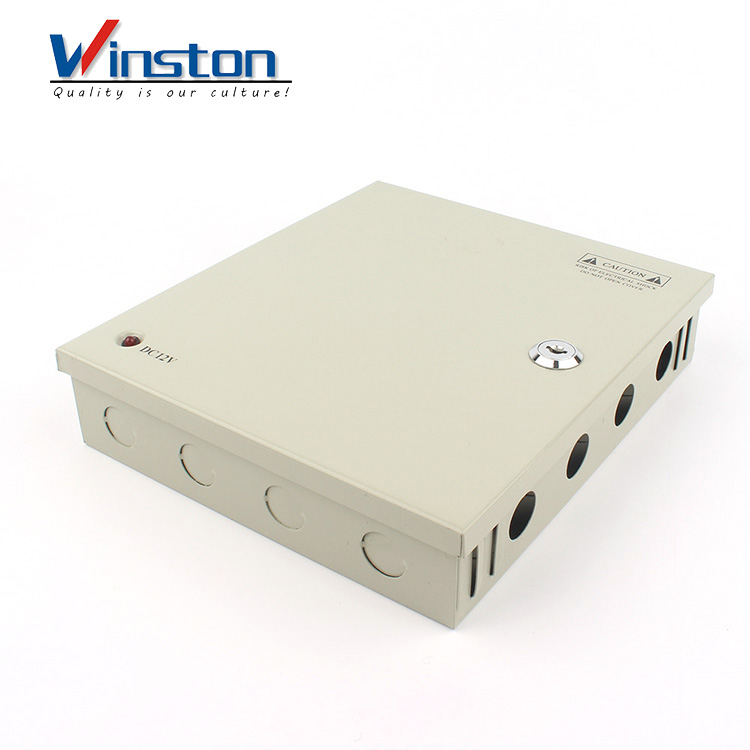

CCTV-60
Winston
Features:
Low power consumption, high reliability
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full loading burn-in test
2 years warranty
Dimension:235*208*50mm(L'W'H')
MODEL | CCTV-60-12-4CH | CCTV-60-12-9CH | CCTV-60-12-18CH | |
OUTPUT | DC VOLTAGE | 12V | 12V | 12V |
OUTPUT POWER | 60W | 60W | 60W | |
CURRENT RANGE | 0-1.25Amp(Each channel) , Total 0-5Amp for 4 channels | 0-0.55Amp(Each channel) , Total 0-5Amp for 9 channels | 0-0.28Amp(Each channel) , Total 0-5Amp for 18 channels | |
RIPPLE & NOISE(max.) | 120mVp-p | |||
VOLTAGE ADJ. RANGE | ±10% | |||
LINE REGULATION | ±1.0% | |||
LOAD REGULATION | ±2.0% | |||
VOLTAGE TOLERANCE | ±2.0% | |||
SETUP,RISE TIME | 800ms, 50ms at full load | |||
HOLD UP TIME | 60ms | |||
INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected | ||
AC CURRENT(Typ.) | 1.3A/115V 0.65A/230V | |||
FREQUENCY RANGE | 47-63Hz | |||
EFFICIENCY(Typ.) | 78% | |||
INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | |||
LEAKAGE CURRENT | <1.0mA/240VAC | |||
PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hiccup shut down | ||
OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protection | |||
Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||
SHORT CIRCUIT | voltage off and reset input for recovers | |||
ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |||
TEMP. COEFFICIENT | ±0.05%/°C | |||
COOLING METHOD | BY FREE AIR CONVECTION | |||
SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved | ||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||
EMI CONDUCTION | Compliance to EN55022 | |||
HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
EMS IMMUNITY | Compliance to EN55024 | |||
Other | Application | 1.Digital and electronic products | ||
Features:
Low power consumption, high reliability
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full loading burn-in test
2 years warranty
Dimension:315*214*61 mm
MODEL | CCTV-120-12-9CH | |
OUTPUT | DC VOLTAGE | 12V |
OUTPUT POWER | 120W | |
CURRENT RANGE | 0-1.1Amp(Each channel) , Total 0-10Amp for 9 channels | |
RIPPLE & NOISE(max.) | 100mVp-p | |
VOLTAGE ADJ. RANGE | ±10% | |
LINE REGULATION | ±1.0% | |
LOAD REGULATION | ±2.0% | |
VOLTAGE TOLERANCE | ±2.0% | |
SETUP,RISE TIME | 200ms, 80ms at full load | |
HOLD UP TIME | 20ms | |
INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected |
AC CURRENT(Typ.) | 2.4A/115V 1.2A/230V | |
FREQUENCY RANGE | 47-63Hz | |
EFFICIENCY(Typ.) | 81% | |
INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |
LEAKAGE CURRENT | <1.0mA/240VAC | |
PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hiccup shut down |
OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protection | |
Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||
SHORT CIRCUIT | voltage off and reset input for recovers | |
ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) |
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |
TEMP. COEFFICIENT | ±0.05%/°C | |
COOLING METHOD | BY FREE AIR CONVECTION | |
SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved |
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |
ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |
EMI CONDUCTION | Compliance to EN55022 | |
HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |
EMS IMMUNITY | Compliance to EN55024 | |
Other | Application | 1.Digital and electronic products |
Features:
Low power consumption, high reliability
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full loading burn-in test
2 years warranty
Dimension:235*208*50mm(L'W'H')
MODEL | CCTV-60-12-4CH | CCTV-60-12-9CH | CCTV-60-12-18CH | |
OUTPUT | DC VOLTAGE | 12V | 12V | 12V |
OUTPUT POWER | 60W | 60W | 60W | |
CURRENT RANGE | 0-1.25Amp(Each channel) , Total 0-5Amp for 4 channels | 0-0.55Amp(Each channel) , Total 0-5Amp for 9 channels | 0-0.28Amp(Each channel) , Total 0-5Amp for 18 channels | |
RIPPLE & NOISE(max.) | 120mVp-p | |||
VOLTAGE ADJ. RANGE | ±10% | |||
LINE REGULATION | ±1.0% | |||
LOAD REGULATION | ±2.0% | |||
VOLTAGE TOLERANCE | ±2.0% | |||
SETUP,RISE TIME | 800ms, 50ms at full load | |||
HOLD UP TIME | 60ms | |||
INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected | ||
AC CURRENT(Typ.) | 1.3A/115V 0.65A/230V | |||
FREQUENCY RANGE | 47-63Hz | |||
EFFICIENCY(Typ.) | 78% | |||
INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | |||
LEAKAGE CURRENT | <1.0mA/240VAC | |||
PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hiccup shut down | ||
OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protection | |||
Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||
SHORT CIRCUIT | voltage off and reset input for recovers | |||
ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |||
TEMP. COEFFICIENT | ±0.05%/°C | |||
COOLING METHOD | BY FREE AIR CONVECTION | |||
SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved | ||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||
EMI CONDUCTION | Compliance to EN55022 | |||
HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
EMS IMMUNITY | Compliance to EN55024 | |||
Other | Application | 1.Digital and electronic products | ||
Features:
Low power consumption, high reliability
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full loading burn-in test
2 years warranty
Dimension:315*214*61 mm
MODEL | CCTV-120-12-9CH | |
OUTPUT | DC VOLTAGE | 12V |
OUTPUT POWER | 120W | |
CURRENT RANGE | 0-1.1Amp(Each channel) , Total 0-10Amp for 9 channels | |
RIPPLE & NOISE(max.) | 100mVp-p | |
VOLTAGE ADJ. RANGE | ±10% | |
LINE REGULATION | ±1.0% | |
LOAD REGULATION | ±2.0% | |
VOLTAGE TOLERANCE | ±2.0% | |
SETUP,RISE TIME | 200ms, 80ms at full load | |
HOLD UP TIME | 20ms | |
INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected |
AC CURRENT(Typ.) | 2.4A/115V 1.2A/230V | |
FREQUENCY RANGE | 47-63Hz | |
EFFICIENCY(Typ.) | 81% | |
INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |
LEAKAGE CURRENT | <1.0mA/240VAC | |
PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hiccup shut down |
OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protection | |
Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||
SHORT CIRCUIT | voltage off and reset input for recovers | |
ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) |
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |
TEMP. COEFFICIENT | ±0.05%/°C | |
COOLING METHOD | BY FREE AIR CONVECTION | |
SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved |
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |
ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |
EMI CONDUCTION | Compliance to EN55022 | |
HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |
EMS IMMUNITY | Compliance to EN55024 | |
Other | Application | 1.Digital and electronic products |
