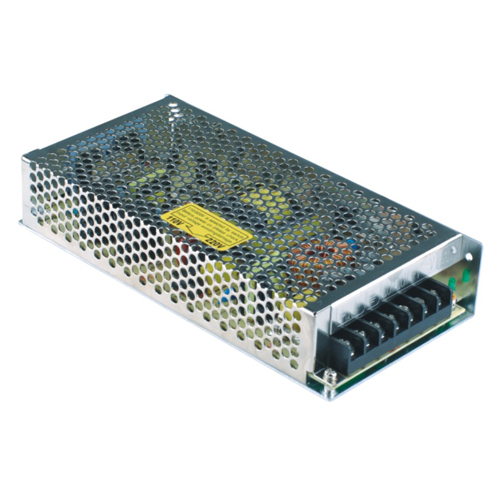

S-120 Single output switching power supply





Model	S-120-3	S-120-5	S-120-7.5	S-120-12	S-120-15	S-120-24	S-120-27	S-120-48
Specification
DC output voltage	3V	5V	7.5V	12V	15V	24V	27V	48V
Output voltage range (Note:2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	22A	20A	16A	10A	8A	5A	4.4A	2.5A
Output current range	0-22A	0-20A	0-16A	0-10A	0-8A	0-5A	0-4.4A	0-2.5A
Wave and noise(note:3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(note:4)	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability(note:5)	±0.5%	±1%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	66W	120W	120W	120W	120W	119W	119W	96W
Efficiency(Typ.)	70%	78%	80%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85-3V	4.75-5.5V	6.75-8.25V	10.8-13.2V	13.5-16.5V	21.6-26.4V	26-32V	43.2-52.8V
AC input voltage range	85~132VAC/180~264VAC Selected by switch 47~63Hz:255~370VDC
Input current	2.4A/115V 1.2A/230V
AC Inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	﹤1mA/240VAC
Overload	Type:pulsing hiccup shutdown Reset:auto recovery
Over-voltage protection	105%-150%		150-200%	105%-150%
High-voltage protection	……
Temp coefficient	±0.03%/℃(0-50℃)
Setup, rise, hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes
Withstand voltage	Input and output intemal: 1.5KvAC,Input and enclosure: 1.5KvAC Output and enclosure: 0.5KvAC
Isolation resistance	Input and output intemal, Input and enclosure, Output and enclosure: 500VDC/100MΩ
Working temp., humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage temp., humidity	-20℃~+85℃.10%~95%RH
Dimension	199×98×38mm(L*W*H)
Weight	0.66Kgs
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	Meet FCC PART 15J Conduction class B
Note:1.The testing condition for the paramenter above is: 230 VAC input, rated load, 25 ℃ 70% Rh, temperature.
2.Error.include the setting error.line stability and load stability.(Note:5)
3.Wave test:adopting “A12”double wire for 20MHz，and 0.1UF&0.47UF capacitor short-circuit for interrupting
4.Intel voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:The load is from 0% to 100%.
