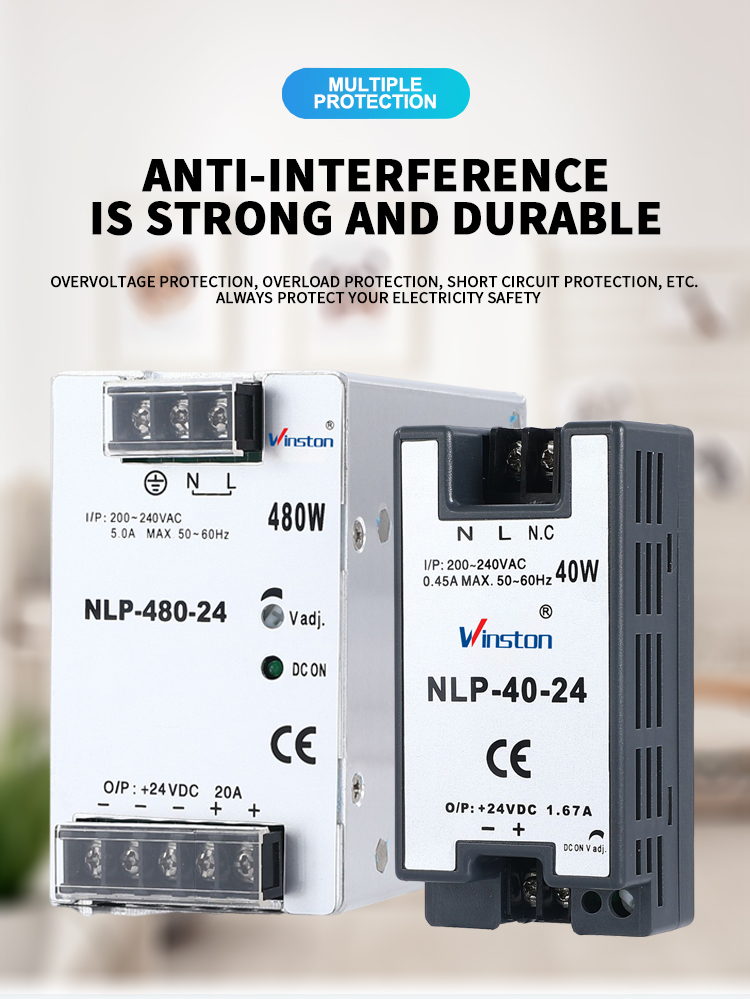

NLP-480
Winston
1.Protection charateristic:short circuit/overload/overvoltage
2.High efficiency,hihg reliability and long serive life.
3.Natural air cooling
4.100% full load burning test
5.LED power indication
| Model/Specification | NLP-360-24 | NLP-480-24 |
| Output | ||
| DC Output Voltage | 24V | 24V |
| Output Voltage tolerance | ±1% | ±1% |
| Rated Output Current | 15A | 20A |
| Output current range | 0-15A | 0-20A |
| DC Output Power | 360W | 480W |
| Tripple and Noise | 240mVp-p | 300mVp-p |
| Adjustable Range for DC Voltage | 20.5-26.5V | 20.5-26.5V |
| Input | ||
| AC Input Voltage Range | 180-264VAC 248-373VDC 47-63Hz | |
| AC input current | 4.8A/230VAC | |
| Efficiency | 86% | 86% |
| AC Inrush Current | Cold-Start Current: 30A/230V | |
| Leakage Current | ＜3.5mA/240VAC | |
| Protection | ||
| Overload Protection | 110%-150% | |
| Protection mode: Overpower protection | ||
| Over Voltage Protection | 27-30V | |
| Protection mode: cut off output and reset automatically | ||
| Environment | ||
| Work Temperature Humidity | -10℃~+50℃，20%~90%RH | |
| Storage Temperature Humidity | -20℃~+85℃，10%~95%RH | |
| Shock resistance | 10-500Hz, 2G 10min./1cycle.duration:60min each shaft | |
| Safety | ||
| Voltage withstand capacity | I/P-O/P:2KVAC, I/P-FG:1.5KVAC ,O/P-FG:0.5KVAC | |
| Insulation resistance | I/P-O/P, I/P-FG ,O/P-FG:100M Ohms/500VDC | |
| Executive Standard | ||
| Safety Standards | CE | |
| EMC Standards | ...... | |
| Others | ||
| Weight | 0.5KGS | |
| Package | 24pcs/ctn 38*30*28 | |
| Size | 100*60*110(L*W*H) | |
| Notes | 1. All parameters except special situation, are measured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1 u and 47 u are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | |
