LP100-24

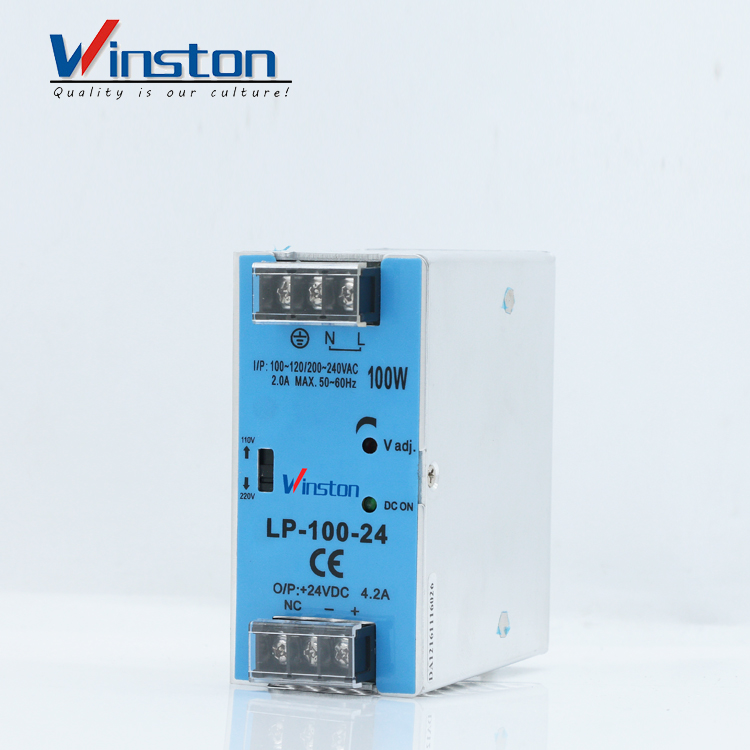

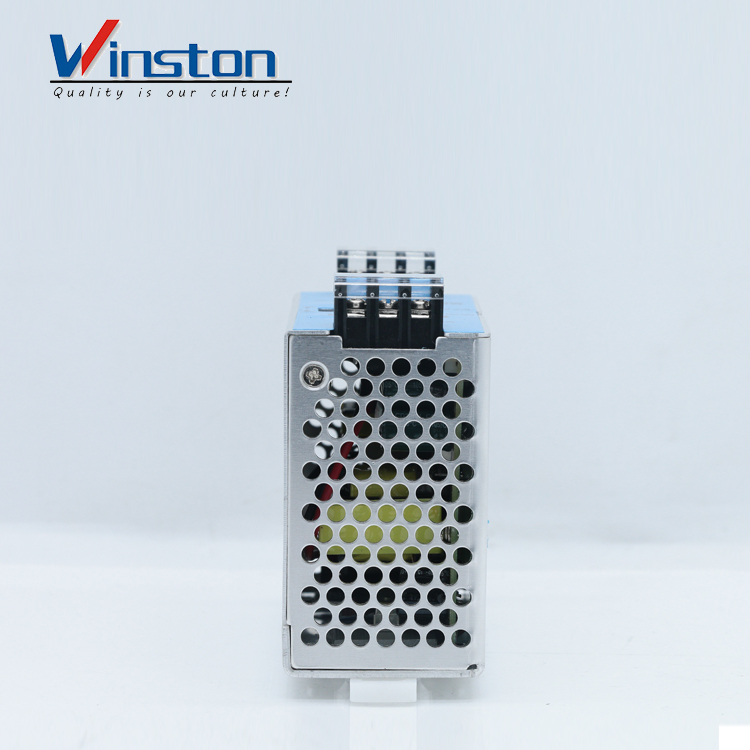

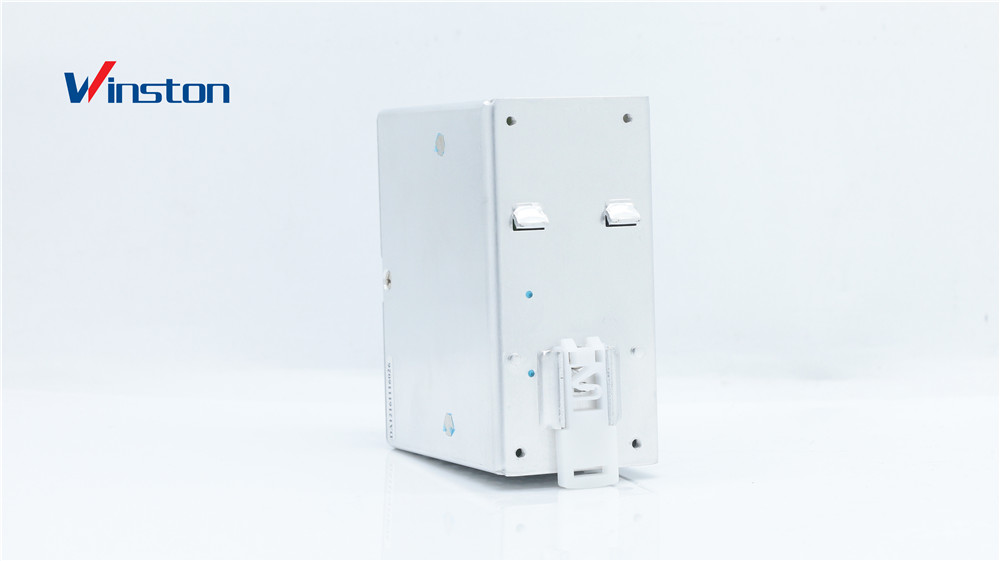

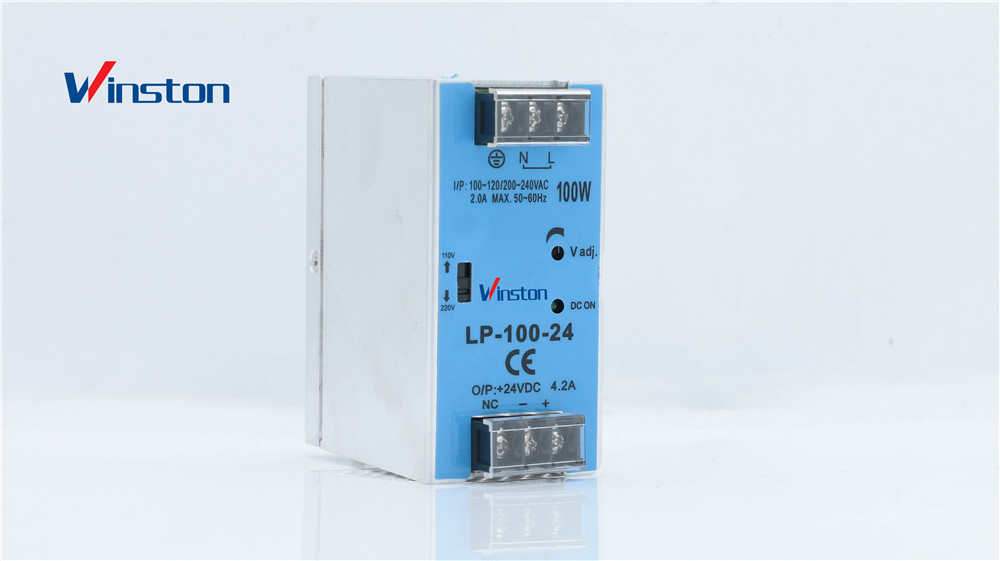

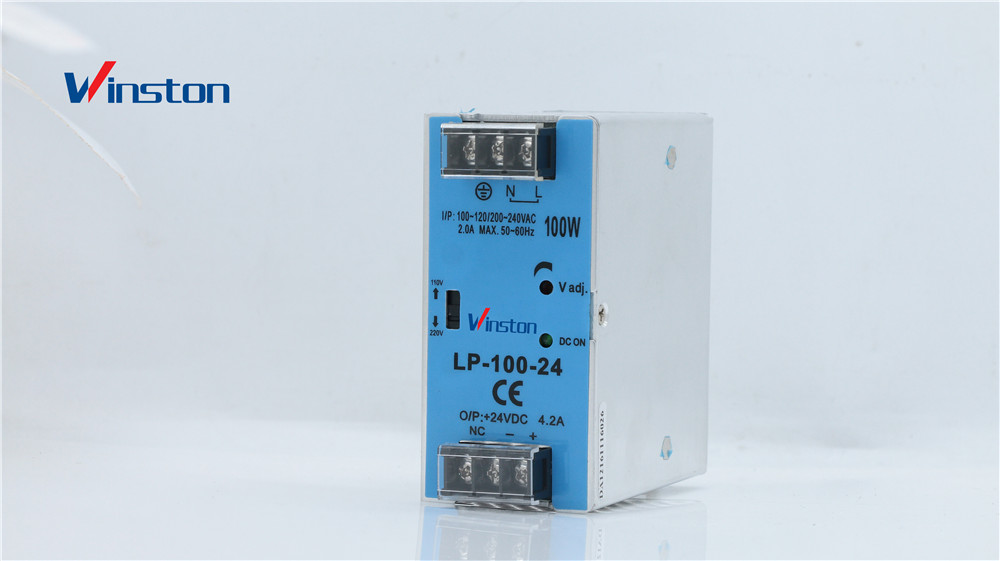

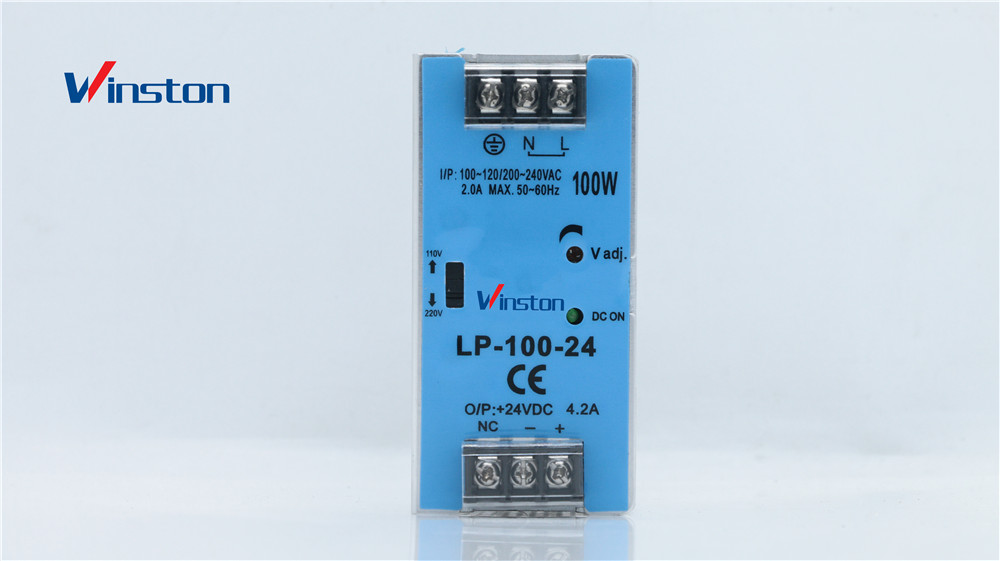

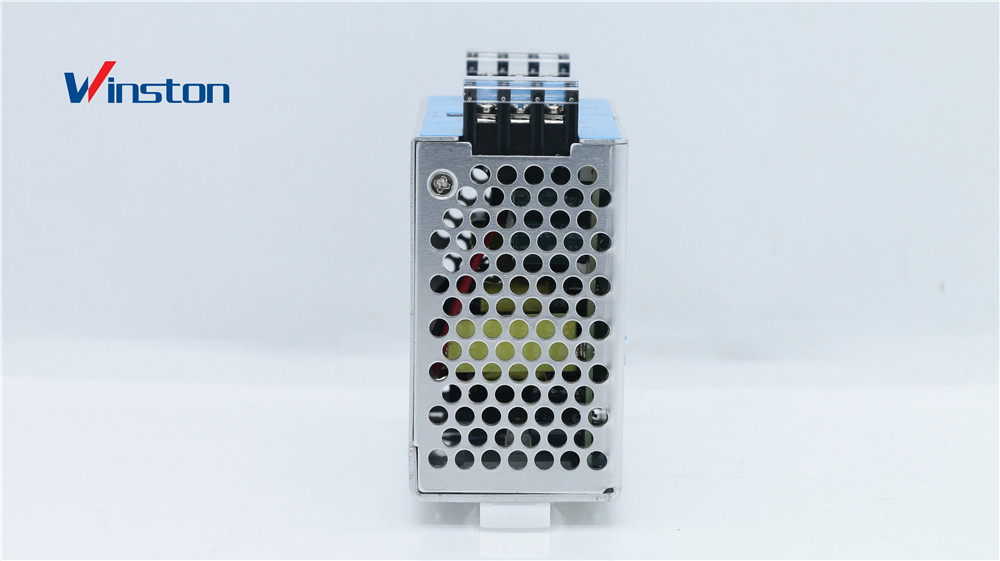

LP100-24 Single output 4.2A 24V 100W Din-rail Switch Mode Power Supply
Features:
Protection characteristic : short circuit/overload/overvoltage
High efficiency, high reliability and long service life.
Natural air cooling
100% full load burning test
LED power indication
Model | LP-100-12 | LP-100-24 | |
Output | DC Output Voltage | 12V | 24V |
Output Voltage tolerance | ± 1% | ± 1% | |
Rated Output Current | 8.3A | 4.2A | |
Output Current Range | 0-8.3A | 0-4.2A | |
DC Output Power | 99.6 W | 100.8 W | |
Tripple and Noise | 120mVp-p | 240mVp-p | |
Adjustable Range for DC Voltage | 11.4-13.2V | 20.5-26.5V | |
Input | AC Input Voltage Range | 85-132VAC/176-264VAC selected by swith or 248-373VDC 47~63Hz; | |
AC input current | 2A/115VAC 1A/230VAC | ||
Efficiency | 83% | 85% | |
AC Inrush Current | Cold-Start Current: 10A/115V, 20A/230V | ||
Leakage Current | <2mA/240VAC | ||
Protection charateristic | Overload Protection | 110%-150% | |
Protection mode: cut off output and restart | |||
Over Voltage Protection | 11.4-113.2V | 20.5-26.5V | |
Protection mode: cut off output and reset automatically | |||
Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH | |
Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH | ||
Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | ||
Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC | |
Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC | ||
Executive Stantand | Safety Standards | CE | |
EMC Standards | Design refer to FCC part 15J Conduction Class B | ||
Others | Weight | 0.39KGS | |
Package | 30pcs/ctn 37*30*24.5 | ||
size | 83*49*100(L*W*H) | ||
Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | ||
