LP50-24
Winston

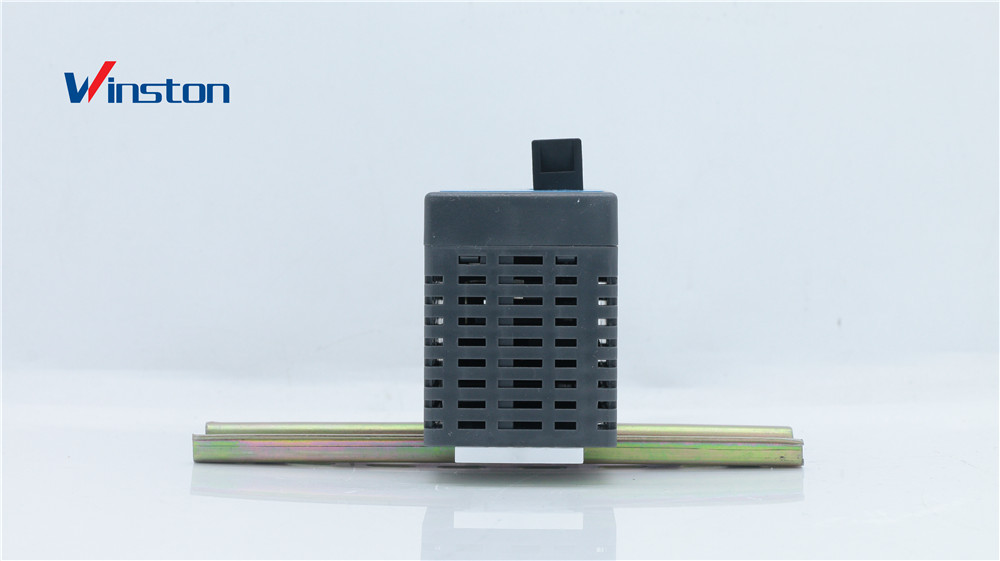

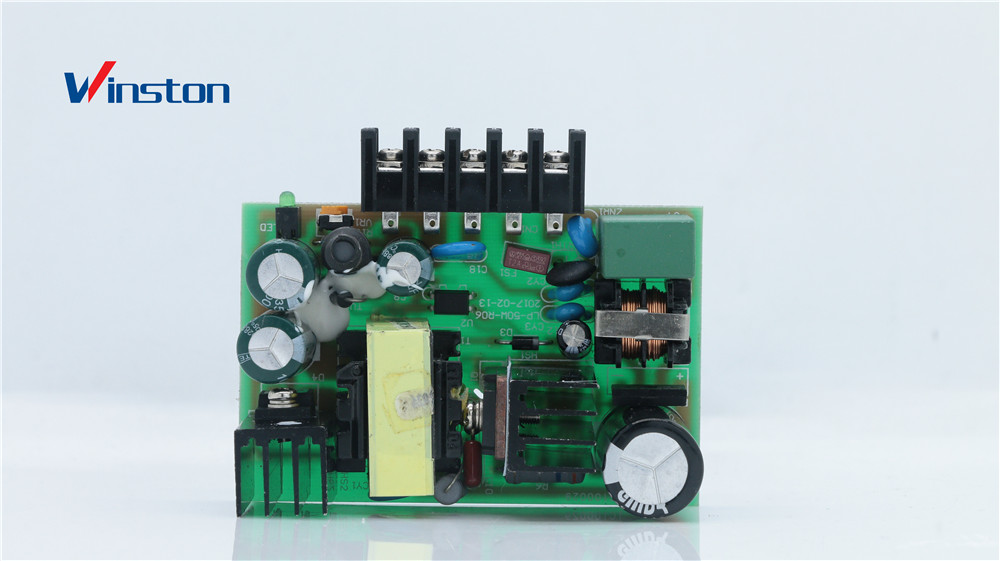

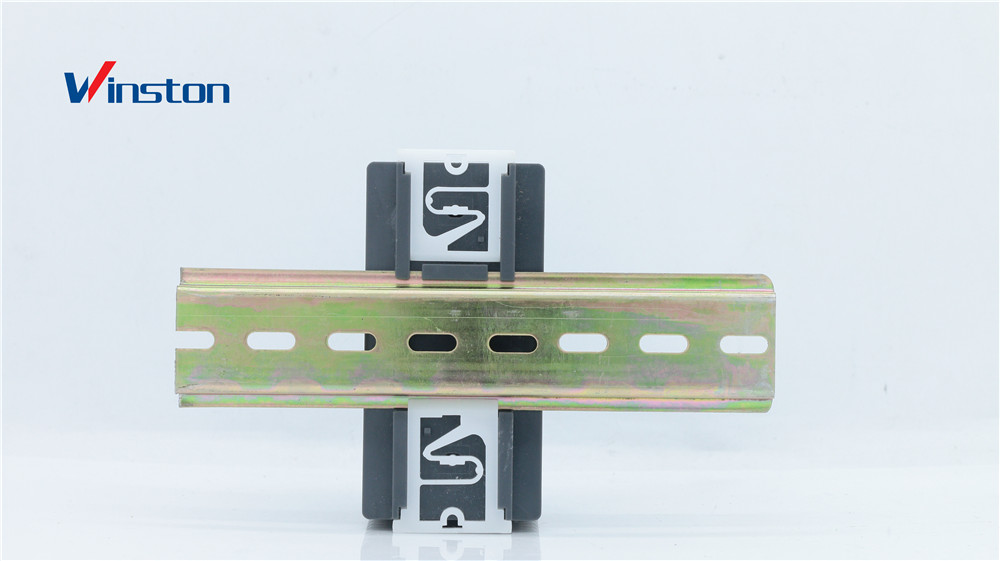

LP50-24 Single output Dc 2.1A 24V 50W LED display Din-Rail Switching Power Supply
Features:
Protection characteristic : short circuit/overload/overvoltage
High efficiency, high reliability and long service life.
Natural air cooling
100% full load burning test
LED power indication
LP 50-24
Model | LP-50-5 | LP-50-12 | LP-50-24 | |
Output | DC Output Voltage | 5V | 12V | 24V |
Output Voltage tolerance | ± 2% | ± 1% | ± 1% | |
Rated Output Current | 8A | 4.2A | 2.1A | |
Output Current Range | 0-8A | 0-4.2A | 0-2.1A | |
DC Output Power | 40W | 50.4W | 50.4W | |
Tripple and Noise | 80mVp-p | 120mVp-p | 240mVp-p | |
Adjustable Range | 4.75-5.5V | 11.4-13.2V | 20.5-26.5V | |
For DC Voltage | ||||
Input | AC Input Voltage Range | 90-264VAC or 100-360VDC 47~63Hz; | ||
AC input current | 0.9A/115VAC 0.45A/230VAC | |||
Efficiency | 78% | 83% | 85% | |
AC Inrush Current | Cold-Start Current: 18A/115V, 36A/230V | |||
Leakage Current | <2mA/240VAC | |||
Protection Charateristic | Overload Protection | 110%-150% | ||
Protection mode: cut off output and restart | ||||
Over Voltage Protection | 5.75-6.75V | 13.8-16.2V | 27-30V | |
Protection mode: cut off output and reset automatically | ||||
Environment | Work Temperature | -10℃~+50℃ , 20%~90%RH | ||
Humidity | ||||
Storage Temperature | `-20℃~+85℃, 10%~95%RH | |||
Humidity | ||||
Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | |||
Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC | ||
Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC | |||
Executive | Safety Standards | CE | ||
Stantand | EMC Standards | Design refer to FCC part 15J Conduction Class B | ||
Others | Weight | 0.22KGS | ||
Package | 60pcs/ctn 38.5*32*28 | |||
size | 75.5*45*102(L*W*H) | |||
Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | |||
