MS-600
Winston
• Single output: power 600W
• Input voltage: 180~264VAC
• Single output: power 600W
• Input voltage: 180~264VAC
Model | MS-600-24 | MS-600-27 | MS-600-36 | MS-600-48 |
DC output voltage, current | 24V 0~25A | 27V 0~22A | 36V 0~16.5A | 48V 0~12.5A |
Wave and noise | 180mVp-p | 200mVp-p | 200mVp-p | 240mVp-p |
Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
Efliciency | 88% | 89.5% | 90% | 90% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
Input voltage range | 180~264VAC 254~370VDC 47~63Hz | |||
Impact current | Cold start current 65A/230VAC | |||
Overload protection | 110%~ 135% cut off the output, automatic recovery:Hiccup mode, recovers automatically after fault condition is removed | |||
Over voltage protection | 115%~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
Over temperature protection | Turn off the output and restore normal output after the temperature returns to normal | |||
Setup, rise, hold up time | 600ms, 50ms/230VAC | |||
Withstand vollage | I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH | |||
Working temperature | -20℃~+60 ℃ | |||

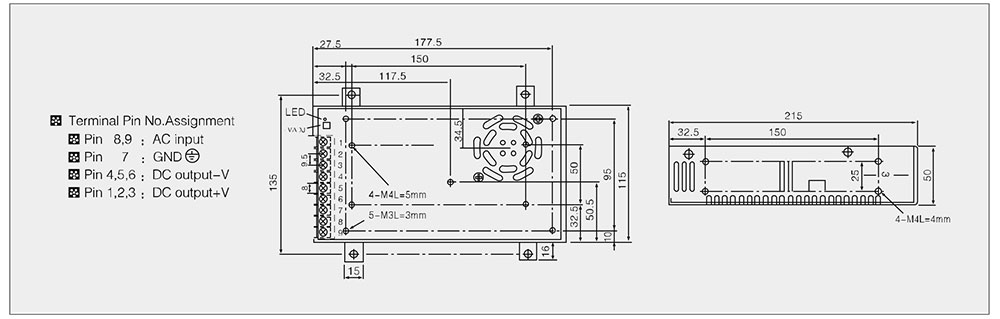

Dimension | 215×115×50mm | |||
Weight | 1.1kg | |||
Packing | 45.5×31.5×26CM/20PCS/22kg |
