MS-100-5 MS-100-12 MS-100-15 MS-100-24
WINSTON
Universal AC input/Mini-size (AC/DC),
Small volume,low weight,high efficiency
Protections: Short Circuit/Over Load/Over Voltage
Indicator for power on/normal(LED)
100% full loadburn-in test
2 Year warranty.
| MODEL | MS-100-5 | MS-100-12 | MS-100-15 | MS-100-24 | |
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Current range | 0-20A | 0~8.5A | 0~7A | 0~4.5A | |
| Adj. range for DC voltage | ±10 | ±10% | ±10% | ±10% | |
| Wave and noise | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| Intet Wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Intput | AC voltage range | AC90~132V/180~264VAC 254~370VDC 47~63Hz | |||
| Current Range | 1.3A/115V 0.65/230V | ||||
| Efficiency | 80% | 83% | 84% | 86% | |
| AC Impact current | Cold-start current 15A/115V 30A/230VAC | ||||
| Leakage current | < 0.5mA/240VAC | ||||
| Protection | Overload | 105%~150% Cut Off the Output, auto recovery | |||
| Over voltage | 5.75~6.75 | 13.8~16.2V | 27.6~32.4V | 55.2~64.81 | |
| 200ms,100ms,30ms/230VAC | |||||
| Safety | Setup,rise,hold up time | 200ms,100ms,30ms/230VAC | |||
| Vibration | 10~500Hz,2G 10min,/1 cycle | ||||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P, I/P-FG,O/P-FG:100MOhms/500VDC | ||||
| Environment | Working temperature and humidity | -10°C ~+60°C,20%~90%RH | |||
| Store temperature and humidity | -20°C ~+85°C,10%~95%RH | ||||

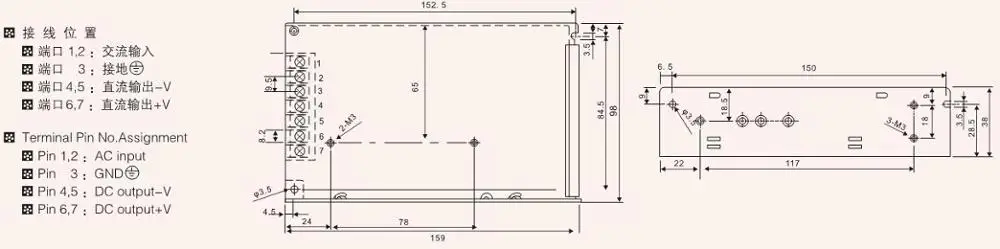

| Other | Dimension | 159×98×38mm | |||
| Packing | 34*32*24cm/30pcs/16.5Kg | ||||
