MS-25-5 MS-25-12 MS-25-15 MS-25-24
WINSTON
Universal AC input/Mini-size (AC/DC),
Small volume,light weight,high efficiency
Protections: Short Circuit/Over Load/Over Voltage/ automatic recovery
Indicator for power on/normal(LED)
100% full loadburn-in test
2 Year warranty.
| Model | MS-25-5 | MS-25-12 | MS-25-15 | MS-25-24 | |
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Current Range | 0~5A | 0~2.1A | 0~1.4A | 0~1.1A | |
| Wave & Noise | 60mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | |
| Voltage Adj.Range | ±10% | ±10% | ±10% | ±10% | |
| Line wave stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise time | 300ms, 50ms/230VAC 800ms, 50ms/115VAC at full load | ||||
| Hold time | 90ms/230VAC 12ms/115VAC at full load | ||||
| Input | Voltage Range | 85 ~ 264VAC 120 ~ 370VDC 47~63HZ | |||
| Efficiency | 70% | 75% | 76% | 78% | |
| Impact Current | Cold Start Current 30A/230VAC | ||||
| Leakage Current | <0.75mA / 240VAC | ||||
| Protection | Over Load | 105 ~ 150% Cut off the output, Automatic Recovery | |||
| Environment | Working Temperature | -10 ~ +50°c (Refer to "Derating Curve" ) | |||
| Working Humidity | 20~90% RH Non-condensing | ||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||
| Safety | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH | ||||

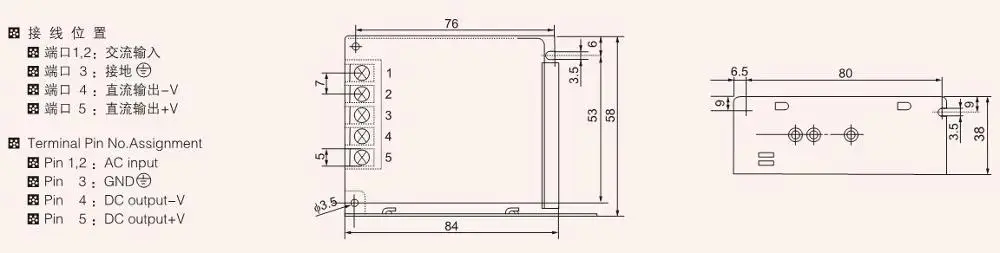

| Others | Dimension | 84*58*38mm (L*W*H) | |||
| Packing | 38*35*24CM/100PCS/21Kg | ||||
Universal AC input/Mini-size (AC/DC),
Small volume,light weight,high efficiency
Protections: Short Circuit/Over Load/Over Voltage/ automatic recovery
Indicator for power on/normal(LED)
100% full loadburn-in test
2 Year warranty.
| Model | MS-25-5 | MS-25-12 | MS-25-15 | MS-25-24 | |
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Current Range | 0~5A | 0~2.1A | 0~1.4A | 0~1.1A | |
| Wave & Noise | 60mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | |
| Voltage Adj.Range | ±10% | ±10% | ±10% | ±10% | |
| Line wave stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise time | 300ms, 50ms/230VAC 800ms, 50ms/115VAC at full load | ||||
| Hold time | 90ms/230VAC 12ms/115VAC at full load | ||||
| Input | Voltage Range | 85 ~ 264VAC 120 ~ 370VDC 47~63HZ | |||
| Efficiency | 70% | 75% | 76% | 78% | |
| Impact Current | Cold Start Current 30A/230VAC | ||||
| Leakage Current | <0.75mA / 240VAC | ||||
| Protection | Over Load | 105 ~ 150% Cut off the output, Automatic Recovery | |||
| Environment | Working Temperature | -10 ~ +50°c (Refer to "Derating Curve" ) | |||
| Working Humidity | 20~90% RH Non-condensing | ||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||
| Safety | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH | ||||
| Others | Dimension | 84*58*38mm (L*W*H) | |||
| Packing | 38*35*24CM/100PCS/21Kg | ||||
