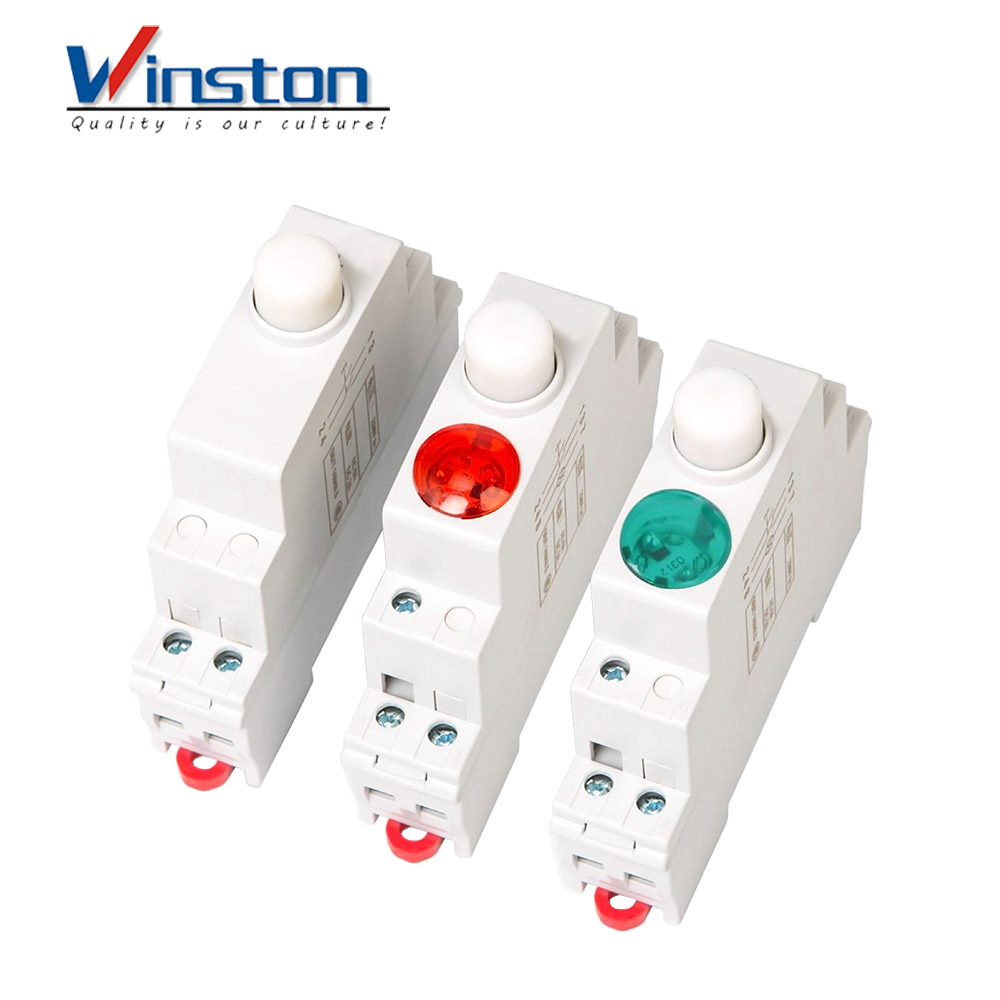

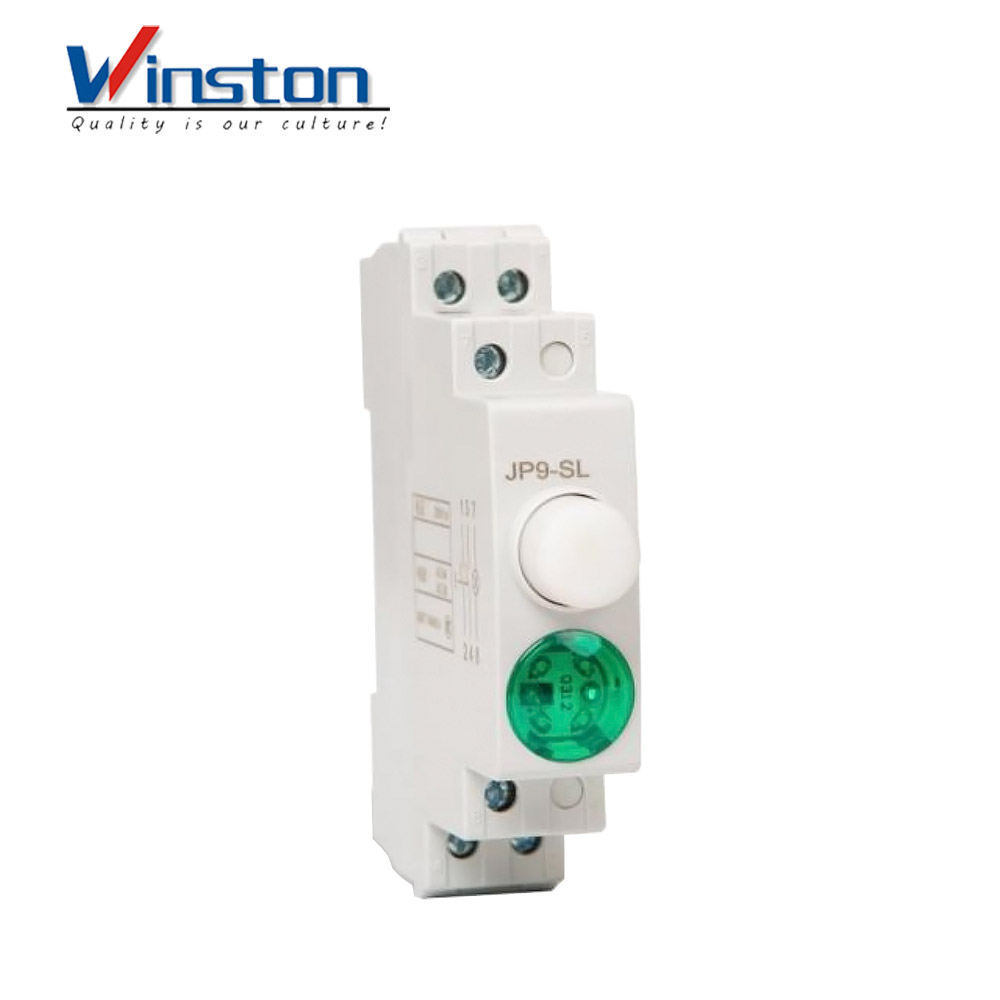

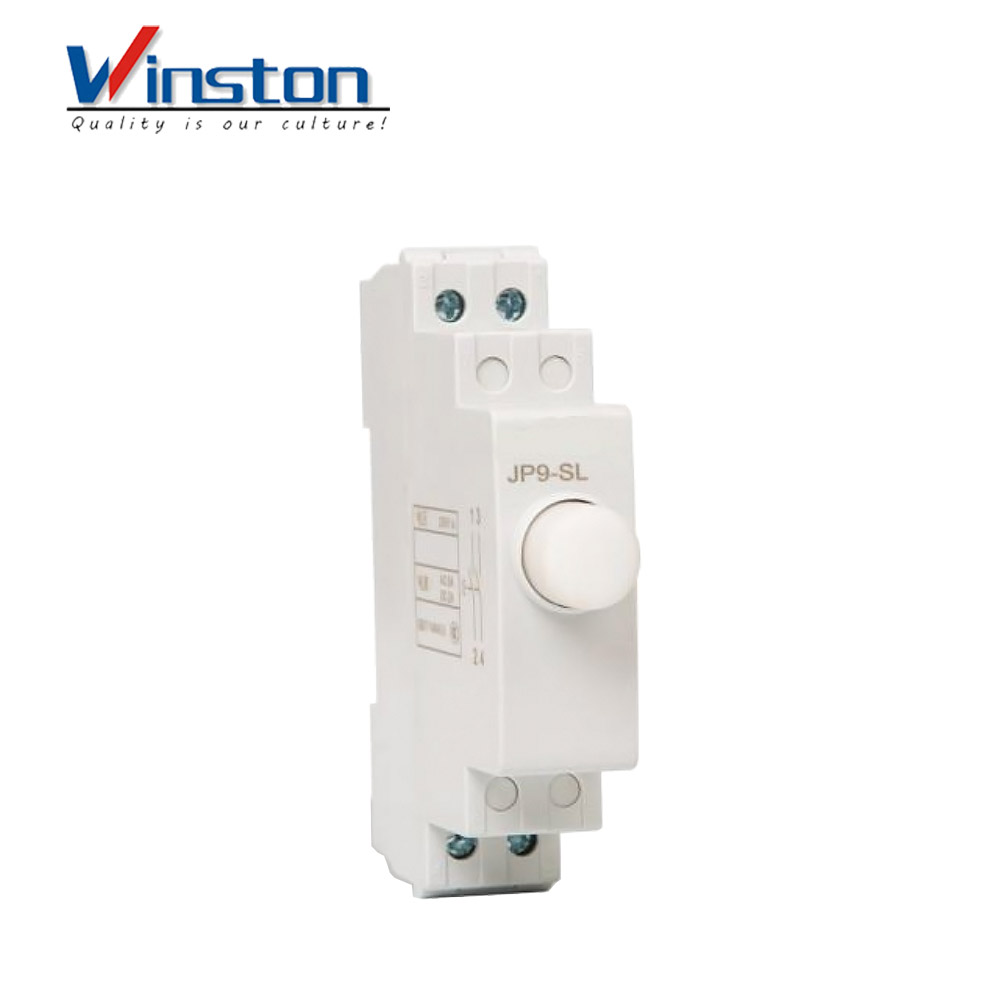

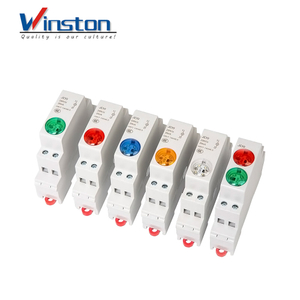

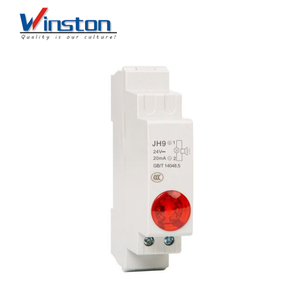

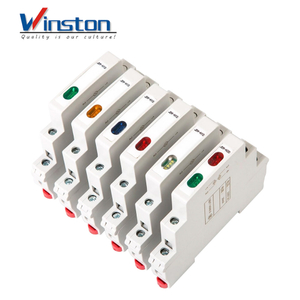

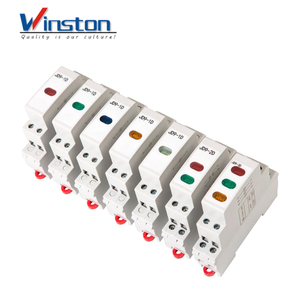

JP9-SL JP9D-SL Industrial Self-locking Button Din Rail LED Indicator Indicator Light

Availability:
Quantity:
  • JP9-SL JP9D-SL

  • Winston

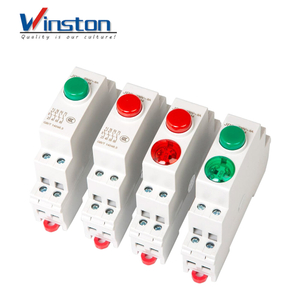

Products Description
 JP9-SL button is applicable to AC 50Hz/60Hz, rated voltage to 230V circuit control system, asmagnetic starter, contactor and other electrical circuit control. The button with light is alsoapplicable to places where various light signals indicate.

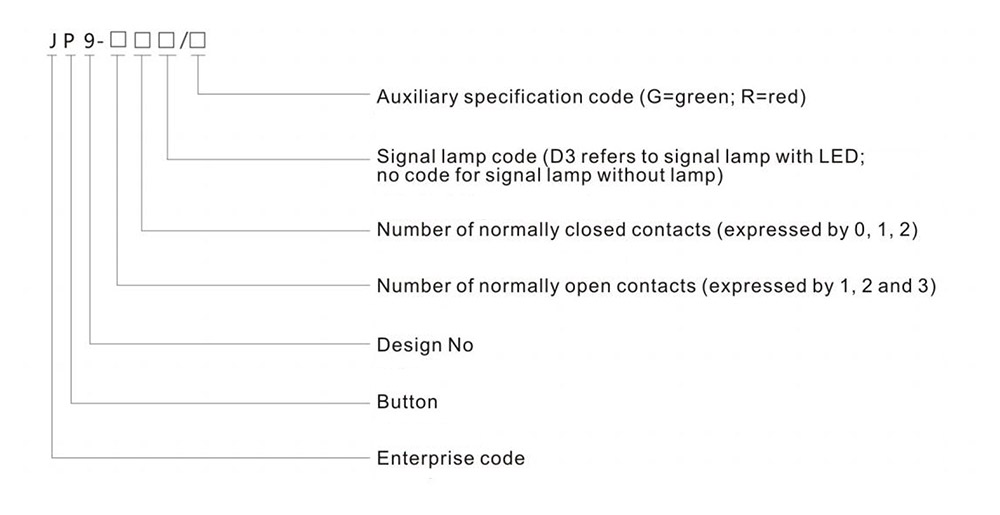

Model Explanation
型号


Technical parameter items
Parameter value
Rated working voltage
230V AC
Rated working current
6A
Agreed heating current
16A
Mechanical life
250000 times
Electrical life
100000 times
Contact combination mode
One normally open two normaly closed, two normaly open one normally closed, two normally open two normally closed, three normally open
Connecting wire
≤6mm^2
Tightening torque
0.8N·m
Use category
AC-14
Protection grade
IP20

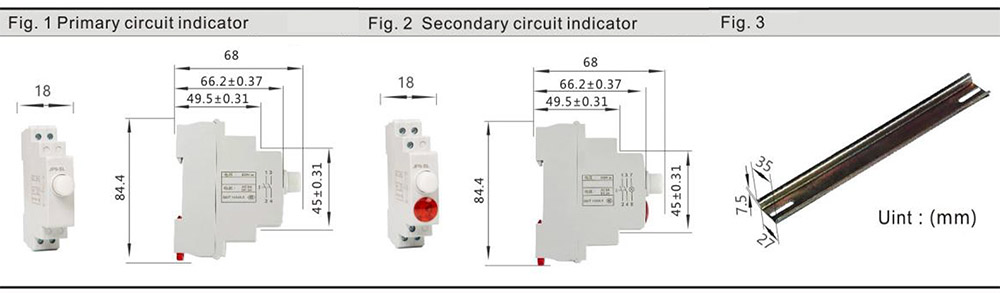

Overall dimension
See Fig.1-Fig.2
Parameters ofbuton signal lamp with ligh
Parameter value
Rated working voltage
6.3(AC/DC)、12(AC/DC)、24(ACIDC)、110(AC/DC)、230(AC/DC)
Rated working current
≤20mA
working life
≥30000h
colour
Red and green


Normal working conditions and installation conditions
4.1.1 Ambient temperature:-5'C~+40'C ; The average value of 24h shall not exceed 35°C 4.1.2 Altitude:≤ 2000m. 4.1.3 Installation category: Class ll and lll. 4.1.4 Pollution level: Level 2. 4.1.5 Installation method: TH35-7,5 profile steel installation rail shall be used for installation, and theinclination between the installation surface and the vertical surface shall not exceed 5°.4.2 Structural features: The buton is of plane layout and belongs to direct-acting double-break point structure, which is composed of insulating shell, partitioncontact, button and contactBridge, contact support, contact plate, wiring base, operation button and other components.The contactbridge and contact spring ofthe button are fixed on the contact support, which is connected with the operation button,The operatingoutton pushes the contact support to make and break under the action of external force, and the indicator lioht is two as an independentcircuit,Terminal blocks are installed on both sides of the housing to indicate the working status of the circuit.4.3 Installation and use 4.3.1 The wiring shall be conducted according to the wiring diagram on the pad print mark during installation.4.3. 2 For the buton with light, check whether the rated voltace ofthe sionallamo meets the use requirements when wiring the indicator circui4.3 3 During installalion, the wire shall be tightened and shall not be loose orloose, or the copper wire shall be exposed outside the terminal.4.3.4 Before powering on, manually operate the buton several times, which should be flexible and reliable without blocking.4.3.5 The button shall not be attacked by rain during use, storage, transportation, etc.


尺寸
