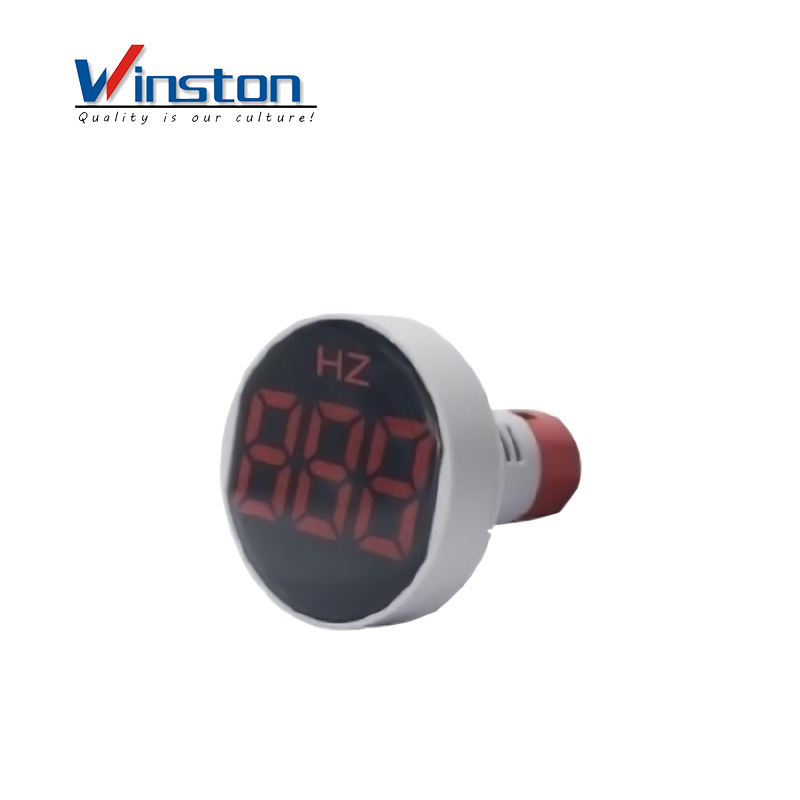

AD112-50DSH
Winston
Modeland Explanatiln
Working Condition
ambient temperature:-25℃~+55℃
relative humidity:≤98%,
nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g
pollution degree is 3, installation g roup is III,
"TH" marked can work at damp-heat environment.
Technical Data
Power frequency withstand voltage:2.5kv/1min(effective AC value),
insulation resistance: 22MΩ,
Allowable voltage fluctuation: ±20%
Continuous operating life: 23000оH,
Brigtnss: ≥100cd/m2,
CTI 2600,
Protection degree of the head IP65, IP67 is available on request,
Applying frequency: AC50-60Hz.
Connect way
Application Method
1.According to connection graph,connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.
2.Supply power and start to measure and display the result.
3. Press down the button last of 5 second ,the electric energy will be zero
Attention
1.The meter will be destroyed when you make wrong connection method with voltage
2.The meter can only use to measure 50Hz AC city electricity,it will be destroyed when use to input(green terminal ) and secondary current trandformere(blue terminal). measure square wave, output of inverter and correction sine wave.
