AD16-22KW 22mm AC Led light Lamp Small Digital Watt Meter Indicator Power Meter

Availability:
Quantity:
  • AD16-22KW

  • winston

AD16-22KW 22mm AC Led light Lamp Small Digital Watt Meter Indicator Power Meter


Modeland Explanatiln


MODEL


Working Condition


1. ambient temperature:-25℃-+55℃,
2. relative humidity:≤98%,
3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g
4. pollution degree is 3, installation g roup is III
5. "TH" marked can work at damp-heat environment.


Technical Data


1.Power frequency withstand voltage:2.5kv/1min(effective AC value),
2.insulation resistance:≥ 22MΩ,
3.Allowable voltage fluctuation: ± 20%,
4.Continuous operating life: ≥30000H.
5.Brigtnss: ≥100cd/m2,
6.CTI≥600,
7.Protection degree of the head IP65, IP67 is available on request,
8.Applying frequency:AC50-60Hz.


Product Description


Name Type Color Lamp voltage

Indicator

Power meter

AD16-22KW

   White

   Red

   Green

   Yellow

   Blue

AC220V/26KW

AC380V/45KW

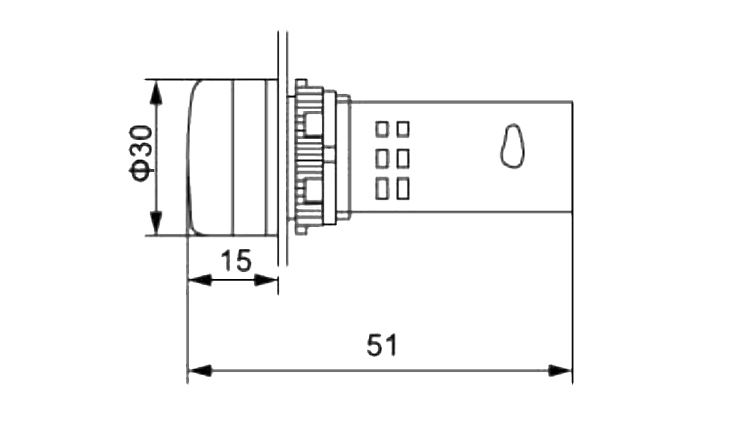

Outine Dimensions


size Y

Other Products

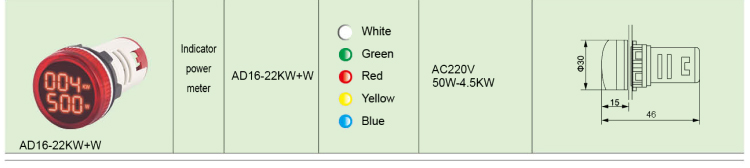

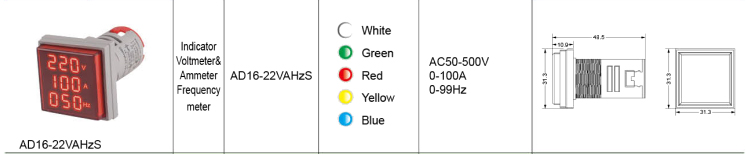

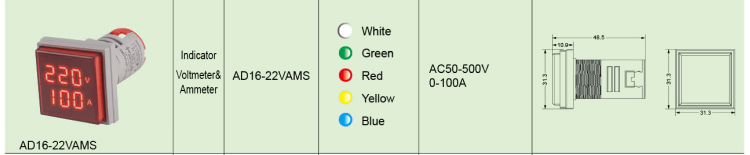

new-catalogue-11_01new-catalogue-11_02new-catalogue-11_03new-catalogue-11_05
