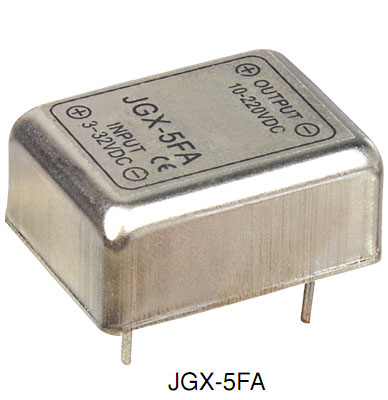

JGX-5FA PCB Type DC solid state relay

  Specification:

  1. AC output, using triac output, zero-voltage open, zero current shutdown.

  2. the DC output using bipolar transistor output, reducing the pressure switch conduction speed, immunity to interference.

  3. the input signal is compatible with the TTO and COMS digital logic circuits.

  4. the optical isolation between input circuit and output circuit.

  5. inputs - between the output isolation voltage 2500V.

  6. single in-line circuit board welding installation, standard modular sizes.

  7. 100% load current aging test, through the European CE certification.

 Main technical:


Load voltage	60VDC/110VDC/220VDC
Load current	3A 5A
Control voltage	DC3-14V/DC3-32V
Control current	6-35mA
On voltage	≤1.5V
Off leakage current	≤1.5mA
On-off time	≤10mS
Dielectric strength	1500VAC
Insulation resistance	500MΩ/500VDC
Ambient temperature	-25℃~+70℃
Mounting methods	PCB
The work instructions	/
Weight	32g



  Wiring drawing(mm)
