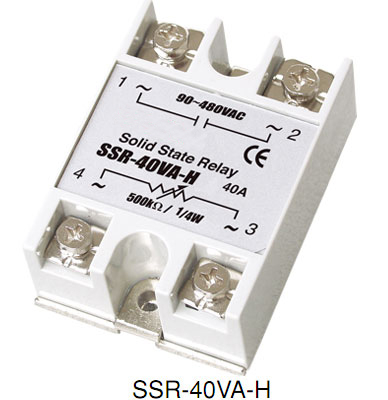

SSR- VA-H Single phase AC solid state voltage regulator

Quantity:
Inquire Add to Basket

  • SSR- VA-H

  • CE

  • Winston

  • Made-in-China

  • Export standard carton box

  • PCS

  • 10

  • 3-7days

  • 1

  • T/T

SSR- VA-H Single phase AC Solid state voltage regulator

  Specification:
  1.Bidirectional thyristor output, zero voltage, zero current turn off;

    2.Optical isolation between the input circuit and output circuit;

    3.Isolation between the input - output voltage 2500 v.

    4.100% load current aging test, through the European CE certification

   Model explain:
   2008521135011472

  Main technical:

         Load voltage          90-480VAC
         Load current          10A 25A 40A,60A,75A,90A
         Control voltage          VR:500KΩ/220VAC;1MΩ/380VAC
         Control current          /
         On voltage          ≤1.5V
         Off leakage current          ≤2mA
         On-off time          /
         Dielectric strength          2500VAC
         Insulation resistance          1000MΩ/500VDC
         Ambient temperature          -30℃~+75℃
         Mounting methods          Nut
         The work instructions          LED
         Weight          132g


  Wiring drawing(mm)

    2008521135010360 20085299926944
