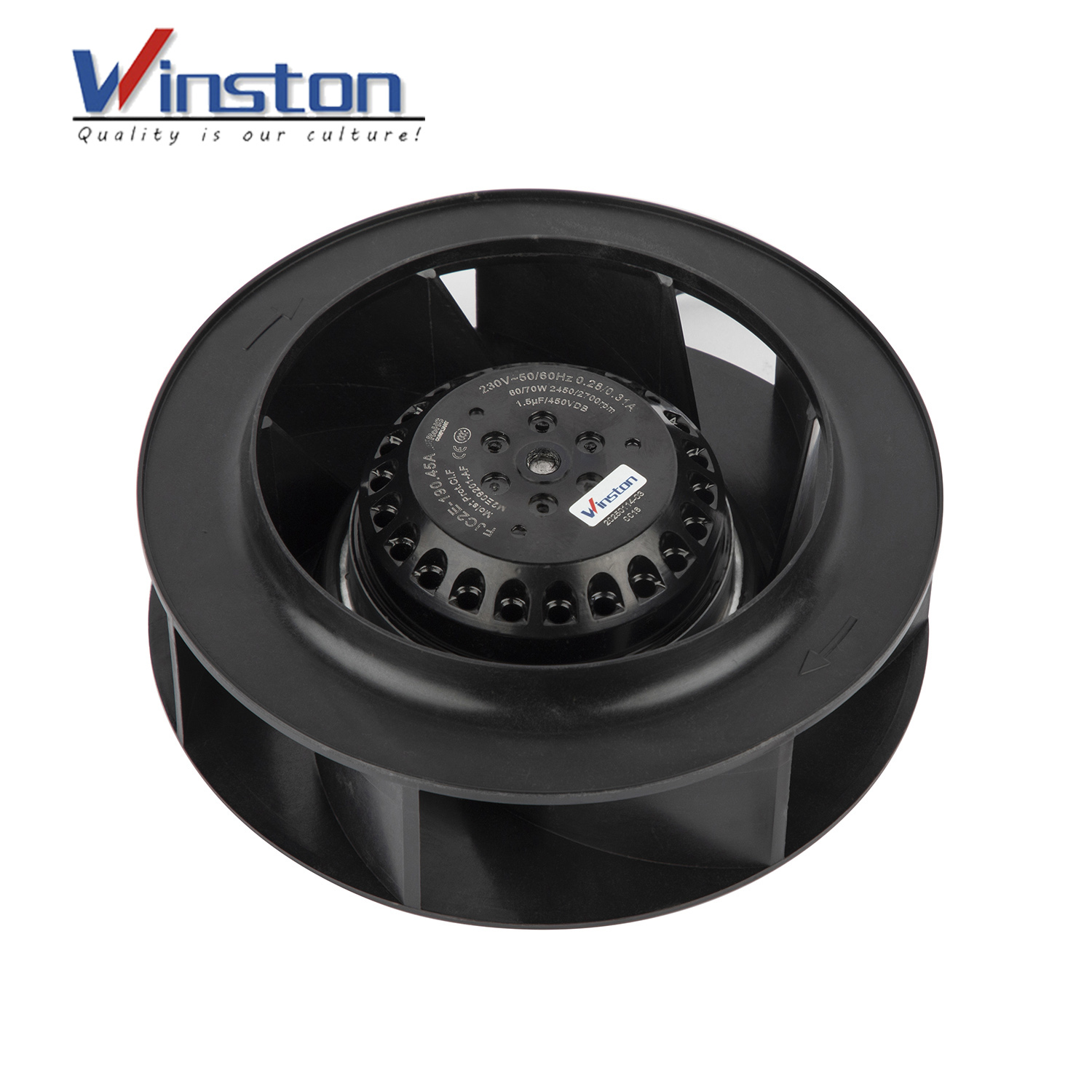

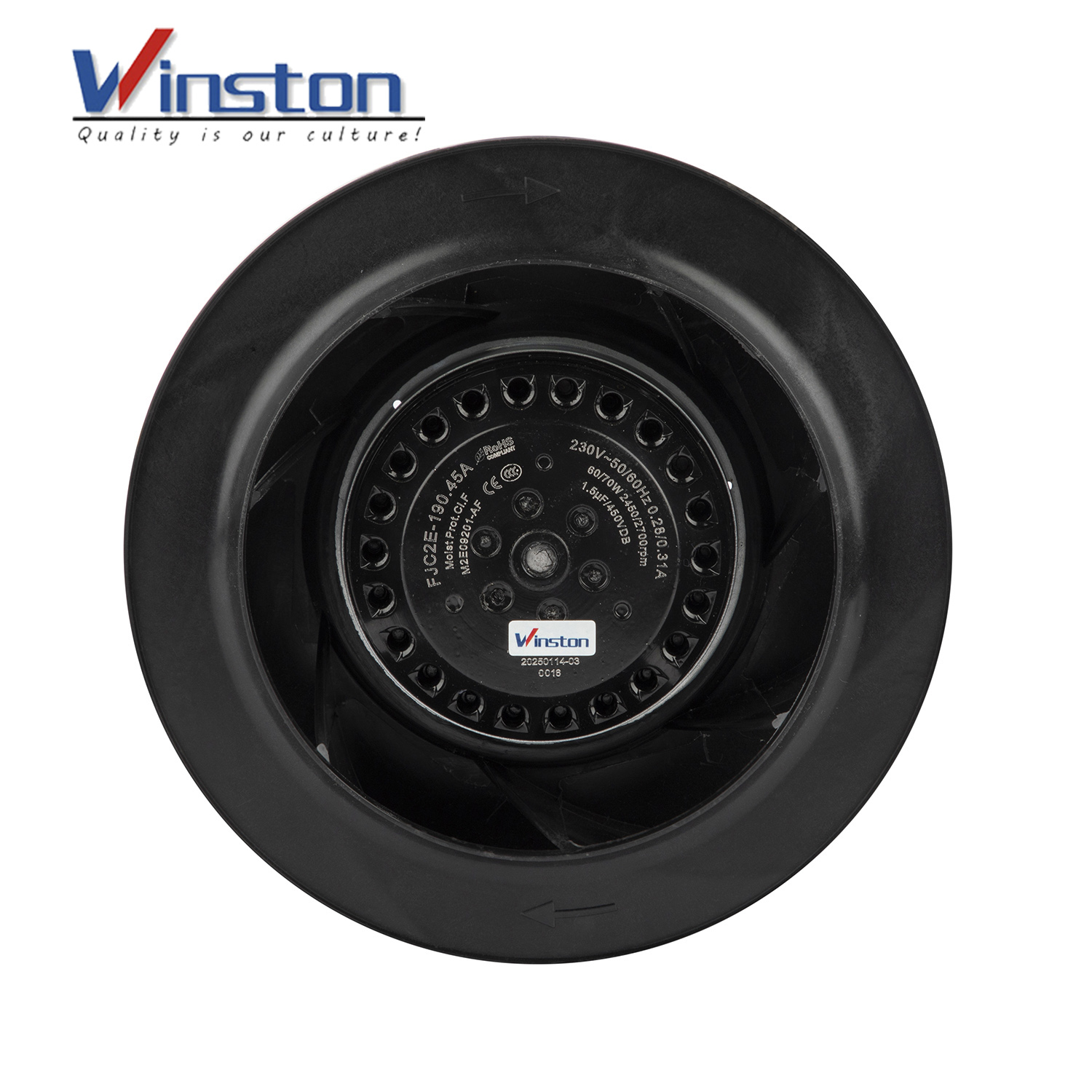

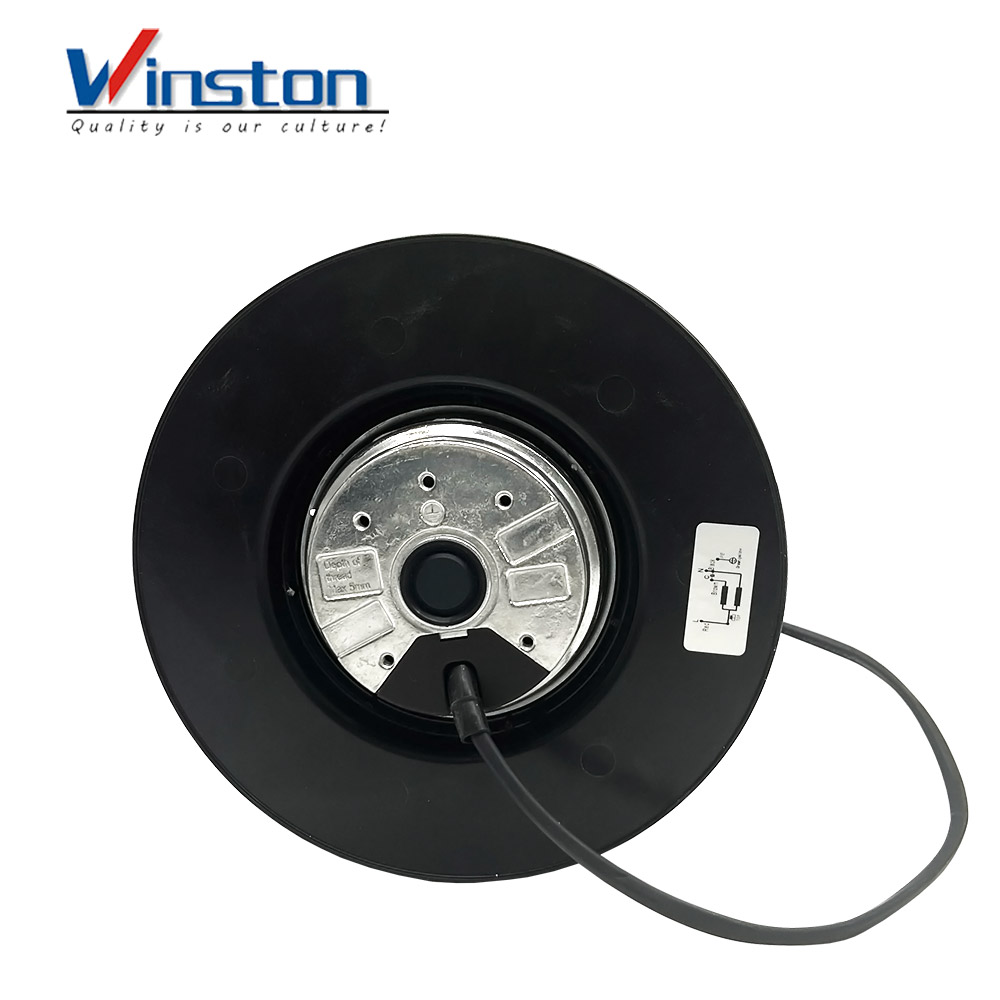

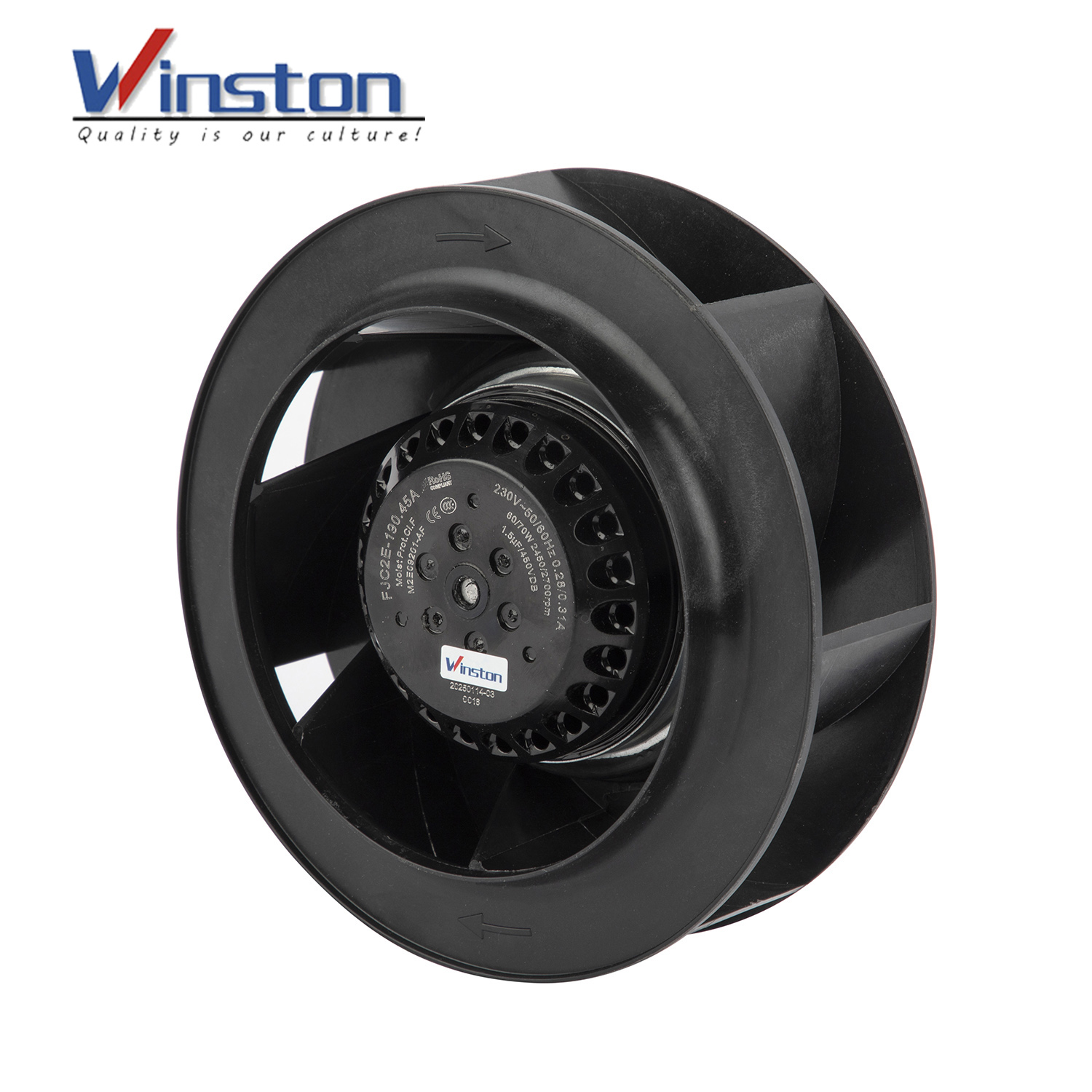

FJC2E-190
Winston
General Specification | ||

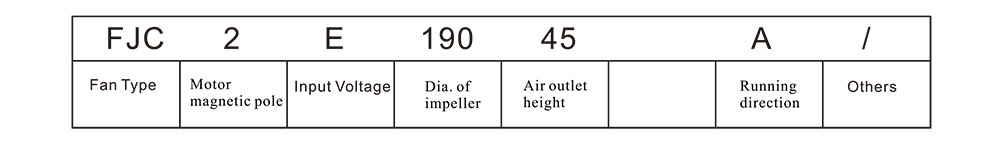

Fan Part No. | FJC2E-190.45A | |
Motor Structure | Motor with external rotor inducted by a running capacitor | |
Outline Dimension | ⌀190X71mm | |
Rated Voltage | AC 230 V | |
Rated Frequency | 50Hz/60Hz | |
Starting Capacitance | 1.5uF/450V | |
Voltage Range | AC 80V - AC 260V | a. Rated Voltage d. 25 ℃ c. 65% RH d. Free outlet of air e. Measured after 5 min. |
50Hz Power | 65 W +-5% | |
60Hz Power | 71 W +-5% | |
50Hz Speed | 2450 RPM +-5% | |
60Hz Speed | 2500 RPM +-5% | |
Max. Airflow | 366 CFM | a. Rated Voltage d. Standard : AMCA c. Rated Current |
620 m3/h | ||
Max. Static Pressure | 1.68 in-H20 | |
420 Pa | ||
Max.Noise | 59 dB(A) | a. Rated Voltage d. Non-Echo Chamber c. Standard : CNS 8753/ISO 3744 c. Distance: 1.0 M |
Motor Life | Average 60000/h hrs at 25℃ | a. Rated Voltage b.65 % RH |
Capacitor Life | Average 30000/h hrs at 70℃ | |
No. of Pole | 2 (Poles) | |
Rotation Direction | Clockwise | |
Electrical Specfication | ||
Manufacture Standard | GB12350, EN 60335, UL507,JBT4270,JB8588 | |
Type of protection for motor | MotorInternalwith automaticrecovery thermal protector, thermal temperature cut at 135℃ | |
Insulation System | Design according to IEC61858 Grade F, allowed Max. temperature of winding: 180℃ | |
Impedance protection | Over 200 Mega Ohm tested by a resistor at DC 500V | |
Protection Grade | IP 44 | |
Main Materials / Parts Specification | ||
Impeller | PP-GF40 plastic one-time injection molding | |
Attachment)flange plate | Pressedfrom0.6mm galvanized sheet | |
Bearing | Maintain-free NMB ball bearing | |
Lead wire | UL3266 18# | |
Terminal | ||
Application Conditions And Range | ||
Operation Temperature/Humidity | Temperature -40℃ - 80℃ | a. Non-condensing condition d. 25℃ |
Humidity 10% - 95% | ||
Storing Temperature/Humidity | Temperature -40℃ - 90℃ | |
Humidity 10% - 95% | ||
