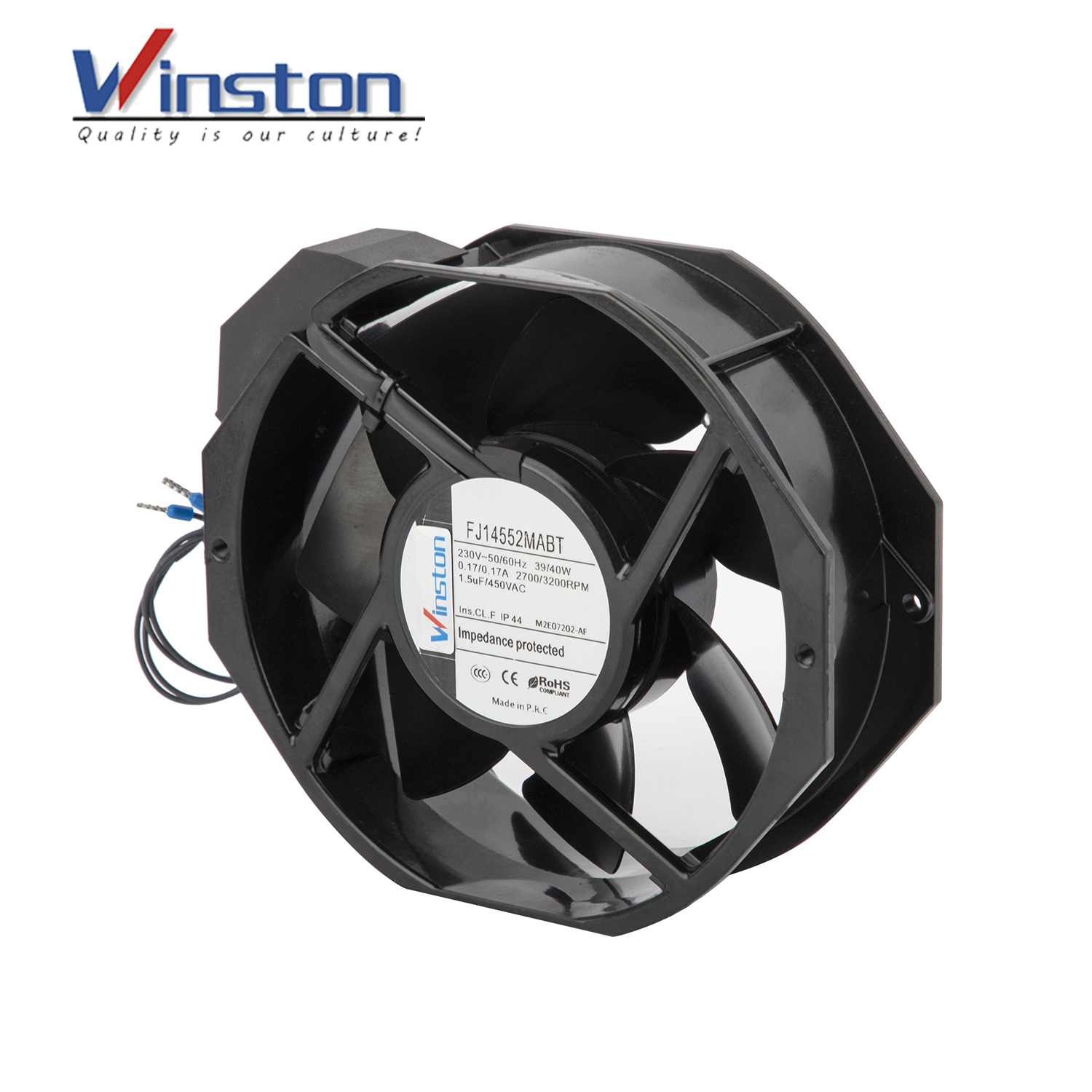

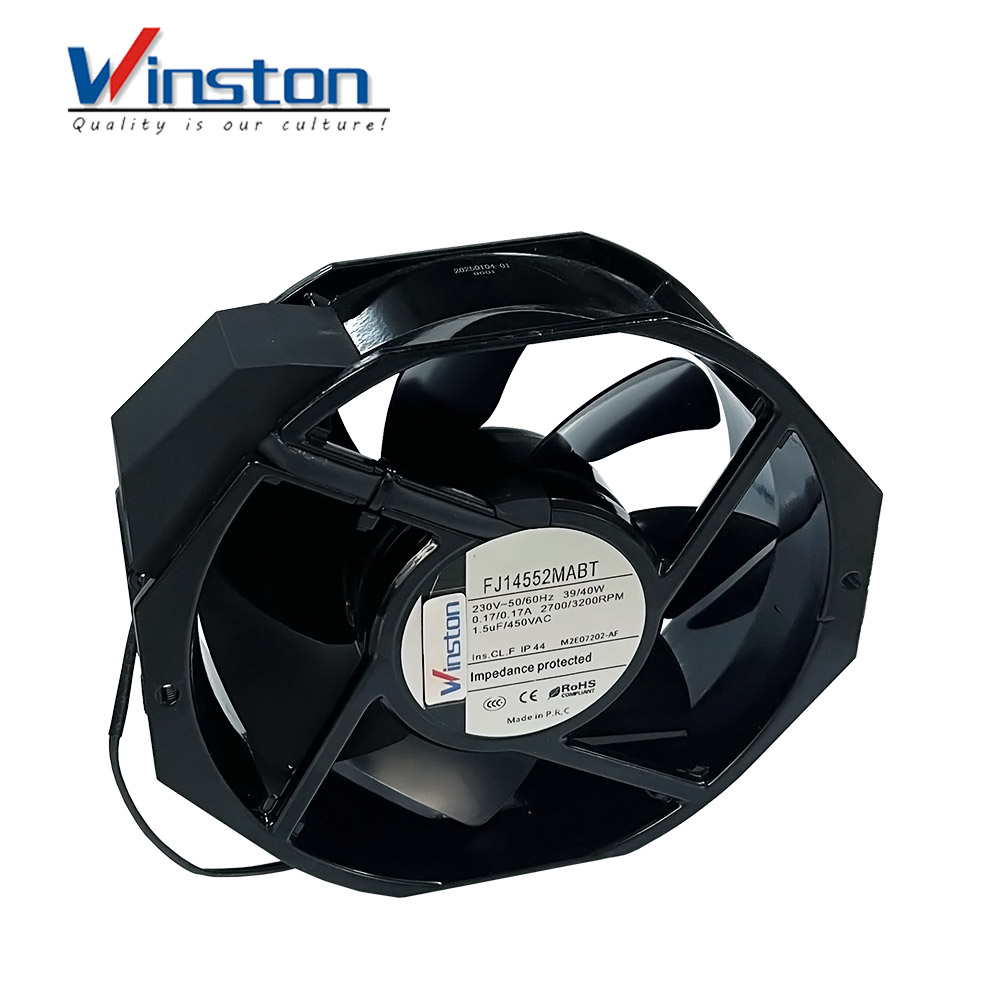

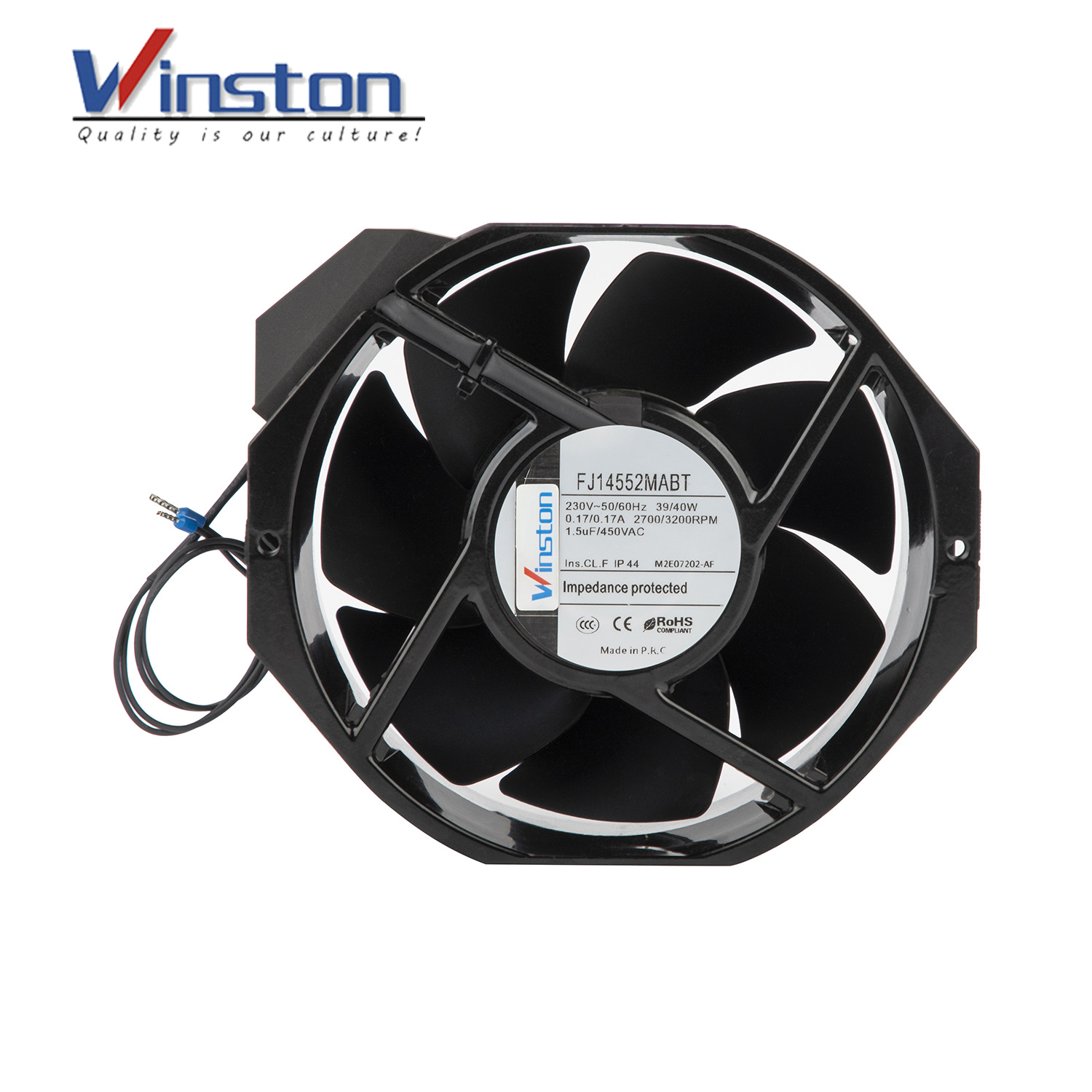

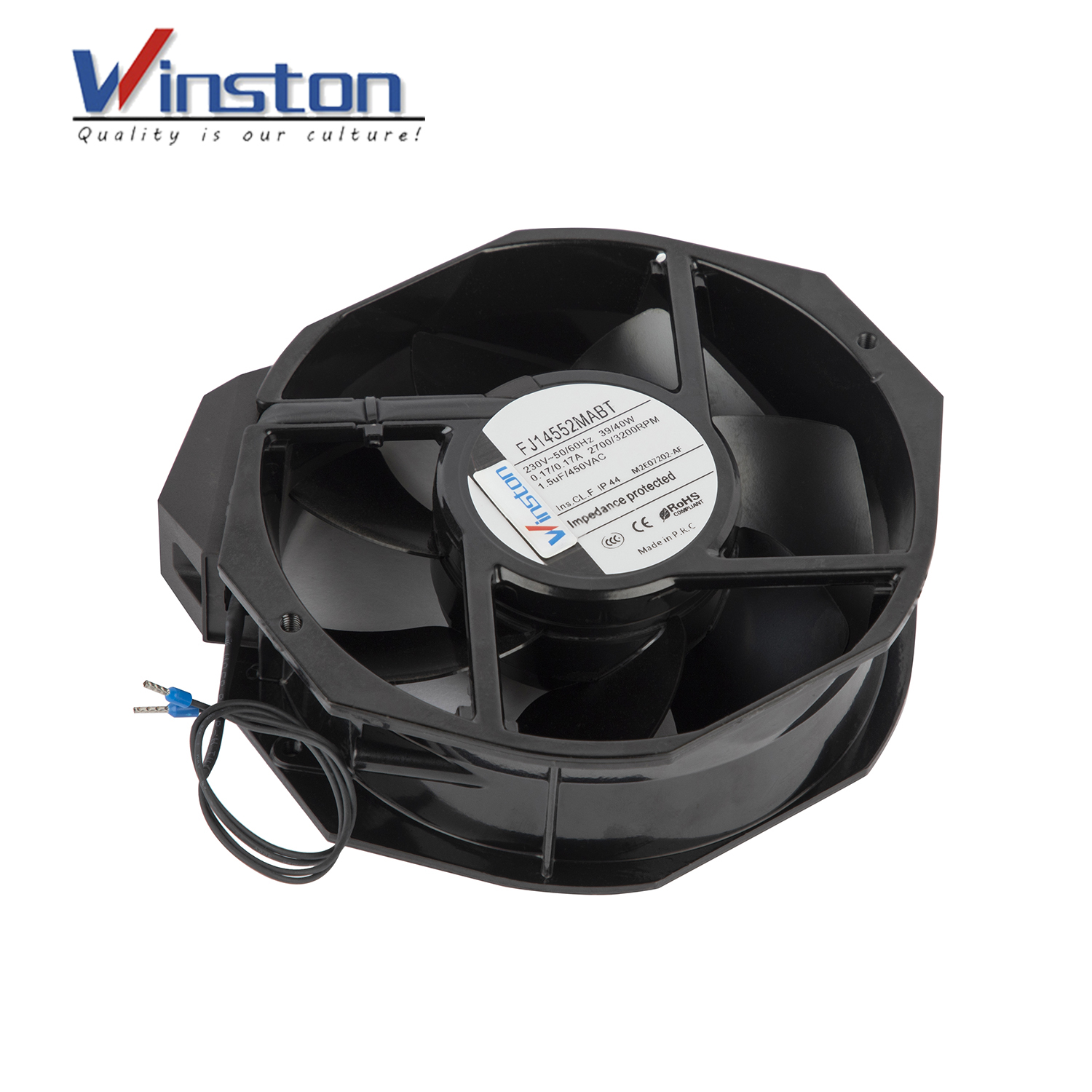

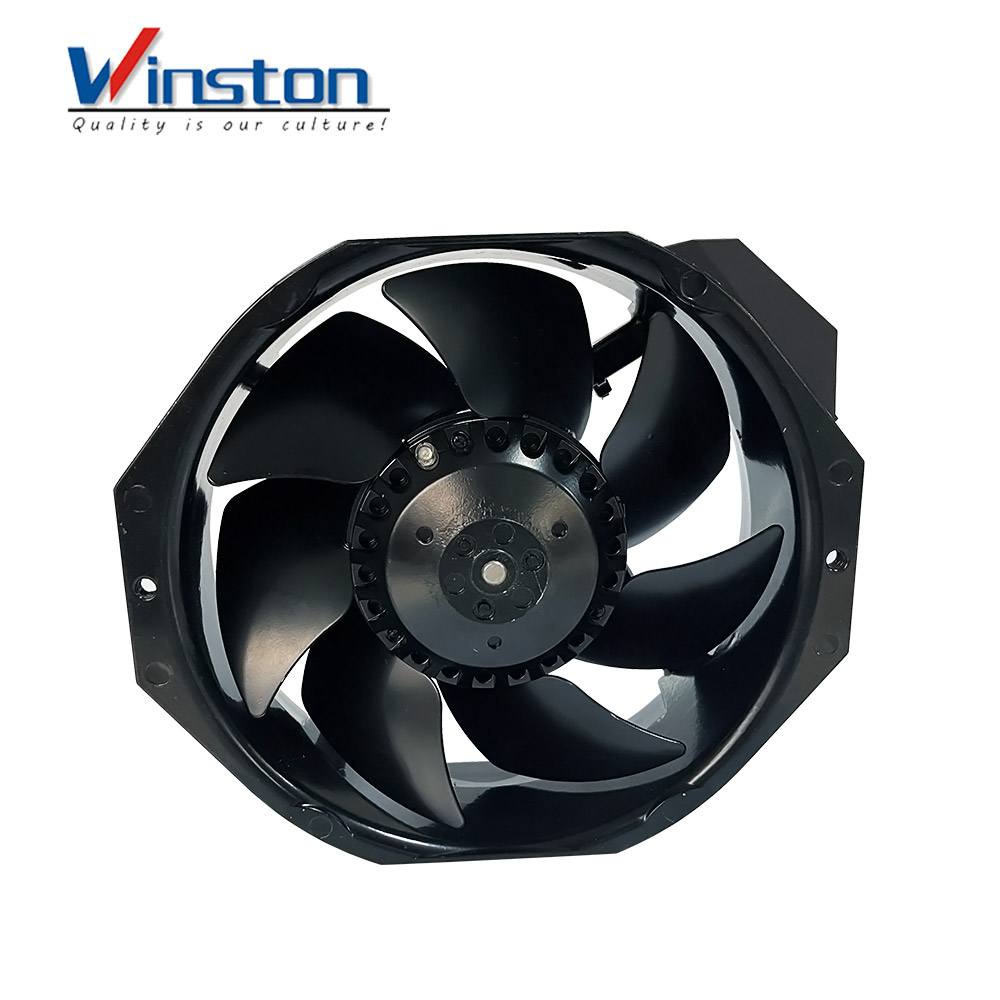

FJ14552MAB Industrial Motor Axial Flow Fan

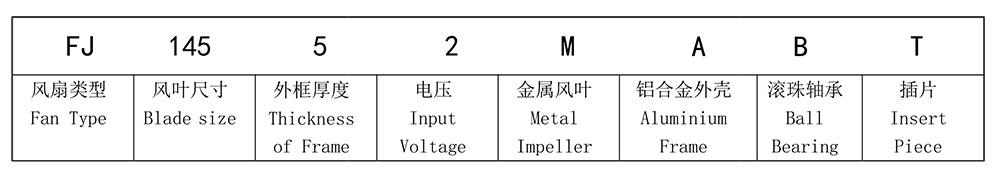

Fan Part No.

FJ14552MABD/L

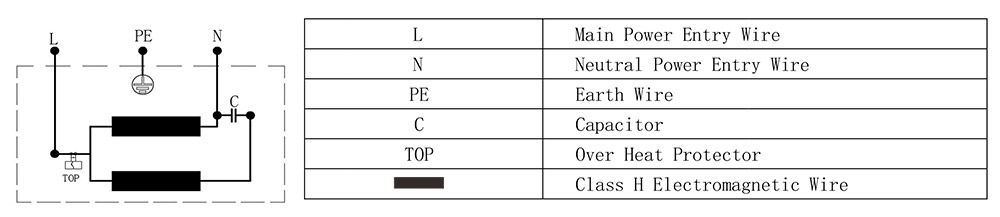

Motor Structure

Shaded pole external rotor motor

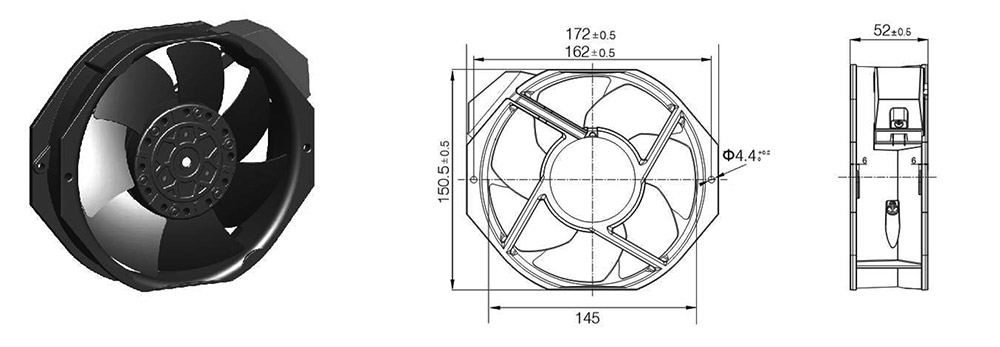

Outline Dimension

172*150*52mm

Rated Voltage

AC 230 V

Rated Frequency

50Hz/60Hz

Rated Current

0.17/0.17A

Starting Capacitance

1.5μF/450V

Voltage Range

AC 90V - AC 245V

a. Rated Voltage

50Hz OutputPower

Power Factor

0.983/0.986(PF)

50Hz Power

40 W  +-5%

60Hz Power

39 W +-5%

50Hz Speed

2700 RPM +-5%

60Hz Speed

3200 RPM +-10%

Max. Airflow

233/281 CFM

a. Rated Voltage

398/478 m3/h

Max. Static Pressure

0.36/0.52 in-H20

90/130 Pa

Max.Noise

53/57 dB(A)

a. Rated Voltage

Motor Life

Average 60000/h  hrs at 25℃

a. Rated Voltage

Capacitor Life

Average 40000/h hrs at 70℃

No. of Pole

2 (Poles)

Rotation Direction

Clockwise

Manufacture Standard

GB12350, EN 60335, UL507,JB8588

Type of protection for motor

Motor Internal with automatic recovery thermal protector(Motor Internal with automatic recovery thermal protector， thermal temperature cut at 168℃

Insulation System

Design according to IEC61858 Grade F, allowed Max. temperature of winding: 180℃

Impedance protection

Over 200 Mega Ohm tested by a resistor at DC 500V

Protection Grade

IP 44

Main Materials / Parts Specification

Frame

ADC12 Aluminium alloy die-casting,surface is finished by anti-corrosion treatment

Impeller

Pressed from metal armor plate, impellers are welded to motor rotor directly, surface is finished by black electrophoresis to be anti-corrosion

Coil frame

Nylon PA66 Fhickness H Flame(Nylon PA66 Fhickness H Flame-retardant V-0

Bearing

Maintain-free NMB ball bearing

Lead wire

UL3266  18#

Terminal

Insert

Weight

0.86kg

Application Conditions And Range

Operation Temperature/Humidity

Temperature  -40℃ - 80℃

a. Non-condensing condition

Humidity  10% - 95%

Storing Temperature/Humidity

Temperature -40℃ - 90℃

Humidity 10% - 95%
