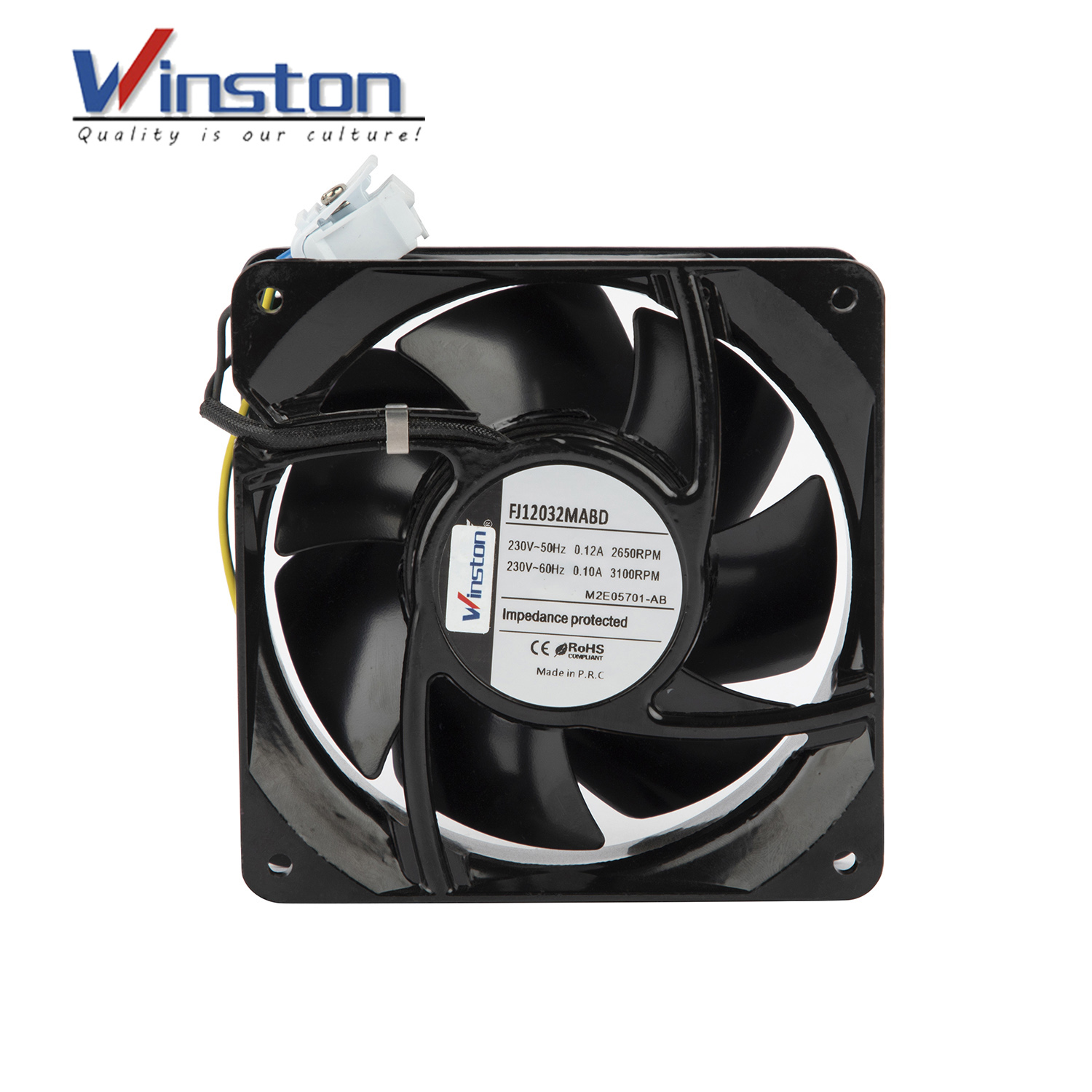

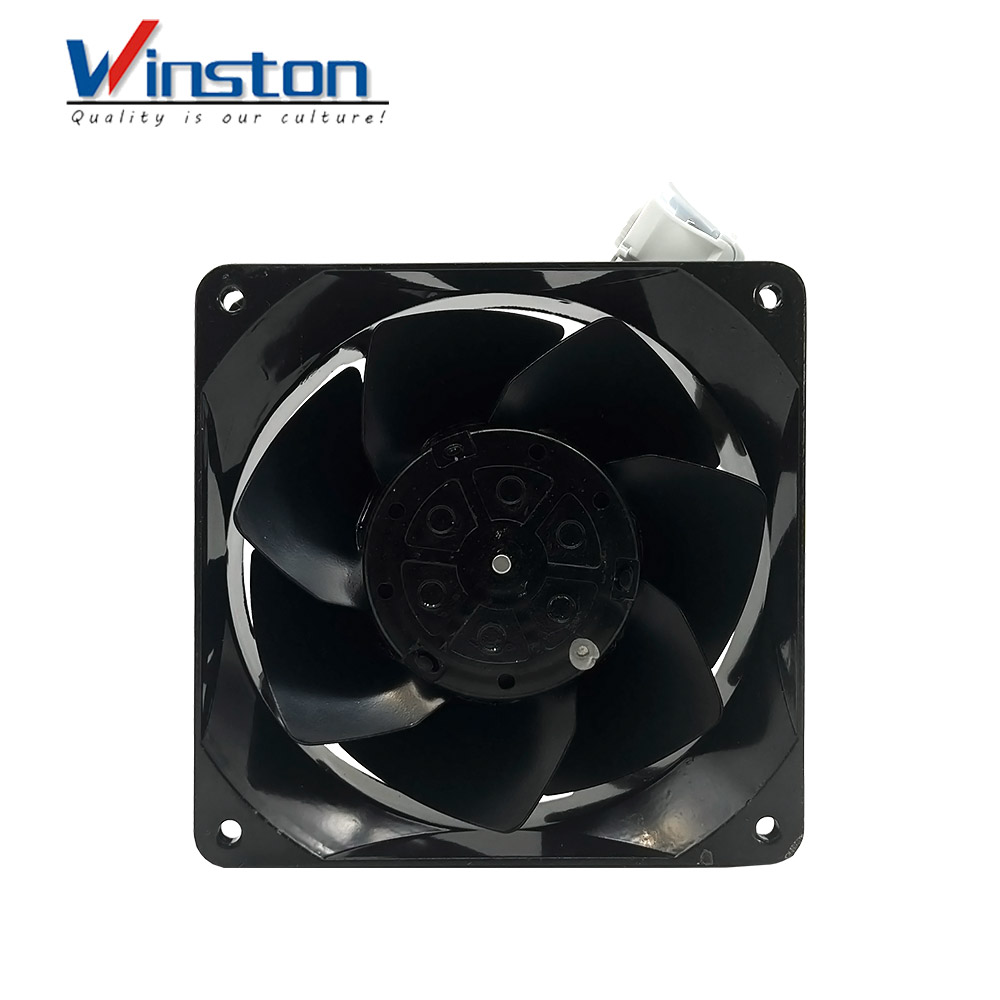

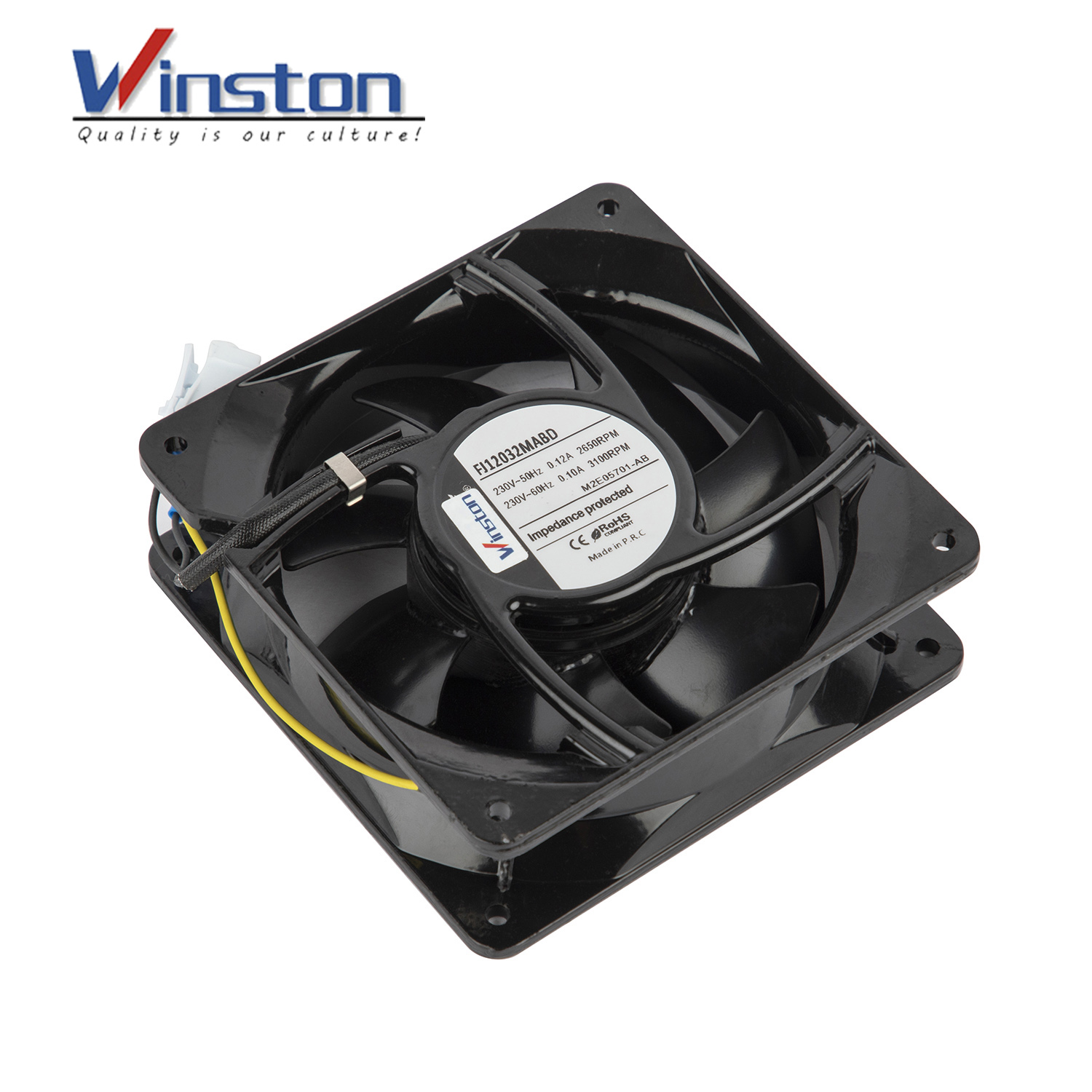

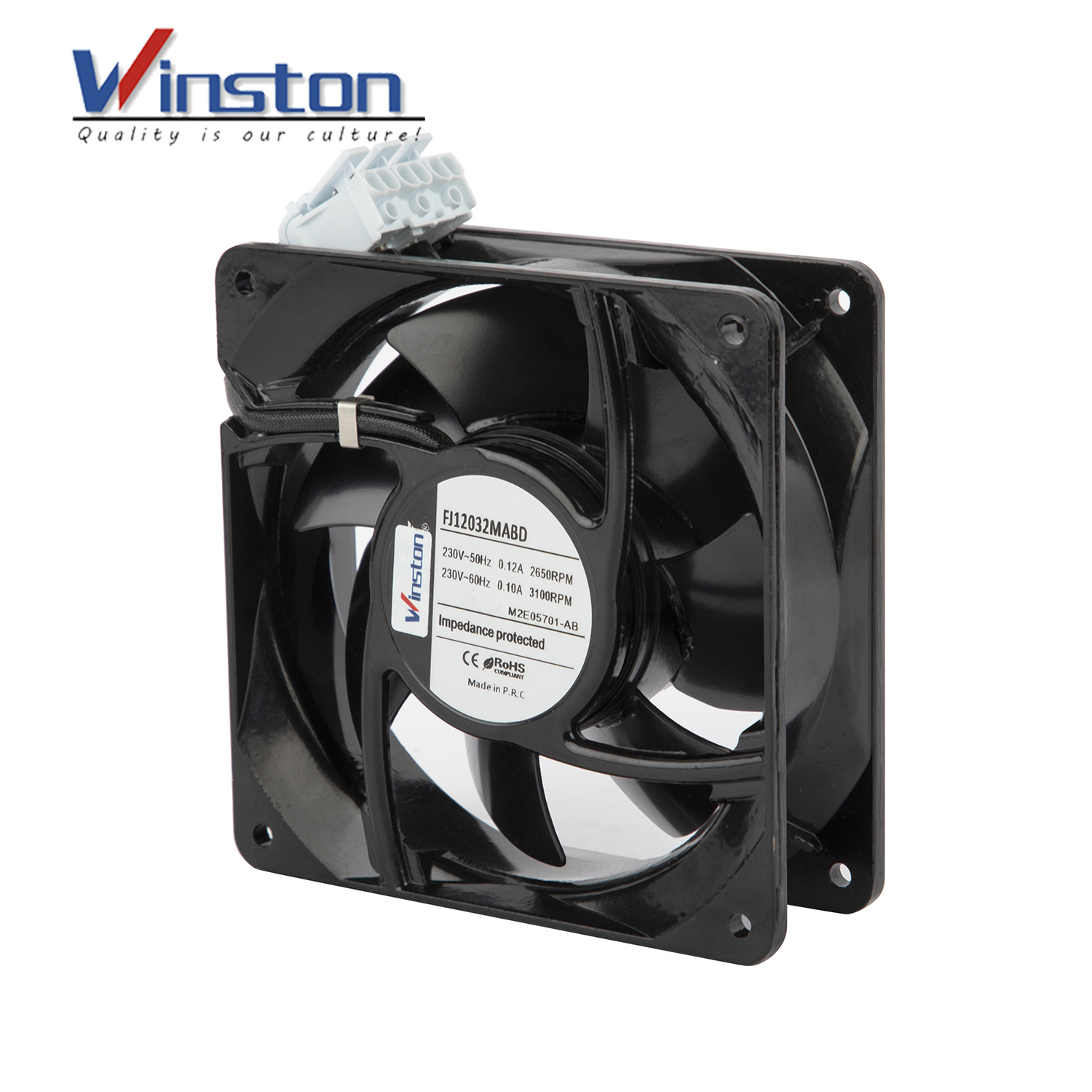

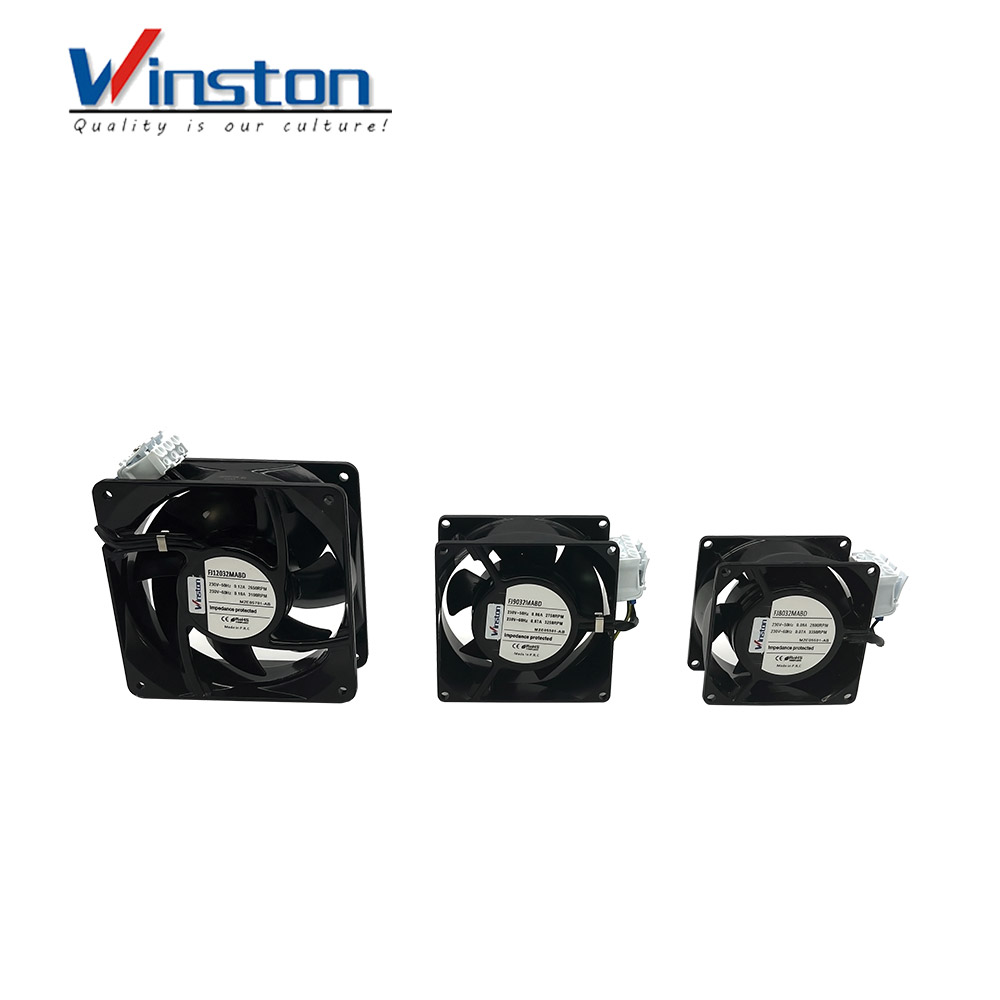

FJ12032MAB
Winston
General Specification | ||
Fan Part No. | FJ12032MABD/L | |
Motor Structure | Shaded pole external rotor motor | |
Outline Dimension | 120*120*38mm | |
Rated Voltage | AC 230 V | |
Rated Frequency | 50Hz/60Hz | |
Voltage Range | AC 70V - AC 250V | a. Rated Voltage d. 25 ℃ c. 65% RH d. Free outlet of air e. Measured after 5 min. |
50Hz Power | 18 W+-5% | |
60Hz Power | 16 W +-5% | |
50Hz Speed | 2650 RPM +-5% | |
60Hz Speed | 3100 RPM +-5% | |
Max. Airflow | 106 CFM | a. Rated Voltage d. Standard : AMCA c. Rated Current |
180 m3/h | ||
Max. Static Pressure | 0.52 in-H20 | |
130 Pa | ||
Max.Noise | 38 dB(A) | a. Rated Voltage d. Non-Echo Chamber c. Standard : CNS 8753/ISO 3744 c. Distance: 1.0 M |
Motor Life | Average 60000/h hrs at 25℃ | a. Rated Voltage b.65 % RH |
Capacitor Life | ||
No. of Pole | 2 (Poles) | |
Rotation Direction | Clockwise loowards rotor | |
Electrical Specfication | ||
Manufacture Standard | GB12350, EN 60335, UL507,JB8588 | |
Type of protection for motor | Impedance Protected | |
Insulation System | Design according to IEC61858 Grade F, allowed Max. temperature of winding: 155℃ | |
Impedance protection | Over 200 Mega Ohm tested by a resistor at DC 500V | |
Protection Grade | IP 44 | |
Main Materials / Parts Specification | ||
Frame | ADC12 Aluminium alloy die-casting,surface is finished by anti-corrosion treatment | |
Impeller | Pressed from metal armor plate, impellers are welded to motor rotor directly, surface is finished by black electrophoresis to be anti-corrosion | |
Bearing | Maintain-free 684NSK ball bearing | |

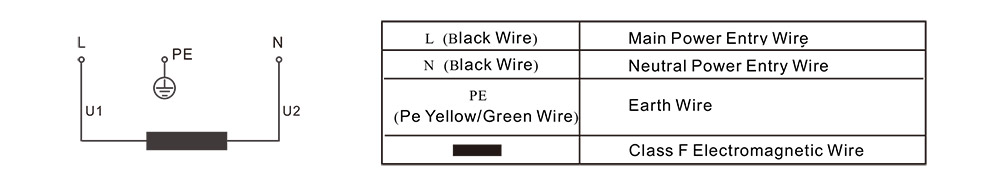

Lead wire | UL3385-22#(Black) | |

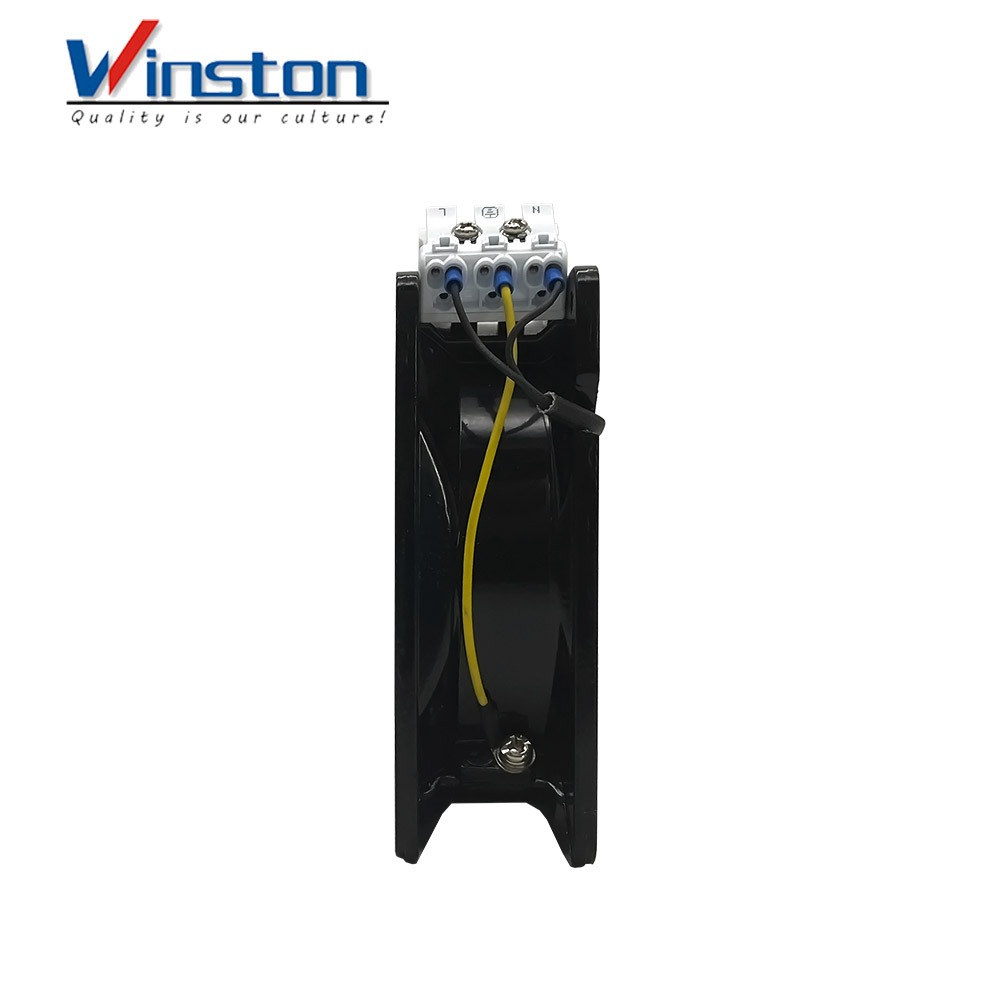

Terminal | P02-3/9(N/E/L) | |
Weight | 540g | |
Application Conditions And Range | ||
Operation Temperature/Humidity | Temperature -40℃ - 90℃ | a. Non-condensing condition d. 25℃ |
Humidity 10% - 95% | ||
Storing Temperature/Humidity | Temperature -40℃ - 100℃ | |
Humidity 10% - 95% | ||
