320W S-320 5V 12V 15V 27V 36V 48V Power Supply LED Strip Light

Share to:

320W S-320 5V 12V 15V 27V 36V 48V Power Supply LED Strip Light

Availability:

Quantity:



Inquire Add to Basket

Model:
S-320 Series
Brand:
Winston

Describle

320W S-320 5V 12V 15V 27V 36V 48V Power Supply LED Strip Light

Technical Parameters

Model		S-320-12	S-320-15	S-320-24	S-320-27	S-320-36	S-320-48
output	DC voltage	12V	15V	24V	27V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%	±1%	±1%
	Rated current	25A	20A	12.5A	11A	8.5A	6.5A
	Current range	0~25A	0~20A	0~12.5A	0~11A	0~8.5A	0~6.5A
	Rated power	300W	300W	300W	297W	306W	312W
	Ripple&noise	100mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	200mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%	±10%	±10%
input	Voltage range	90~132VAC/180~264VAC(selected by switch),255~373VDC
	frequency	47~63HZ
	AC current	6.0A/115VAC,3.5A/230VAC
	efficiency	80%	80%	82%	82%	82%	83%
	Inrush current	Cold start current 25A/115VAC,50A/230VAC
	Leakage current	< 3.5mA/240VAC
protection	overload	Rated output power105%~135% start over load protection
	overload	protection type :rated current limit ,auto-recovery after fault condition is removed
	Over voltage	15.6~17.8V	18.6~20.8V	30.6~33.2V	33.2~35.6V	42.6~44.2V	54.8~56.6V
	Over voltage	Protection type:hiccup mode,auto-recovery after fault condition is removed
	Over temperature	≥55ºCfan on,≤50ºCfan off,≥85ºC start over temperature protection
	Over temperature	Protection mode:cutoff output,auto-recovery after temperature become normal
environment	Working temp,humidity	-10ºC~+60ºC,20%~90%RH
	Storagetemp,humidity	-20ºC~+85ºC,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	meet EN55022,CLASSA

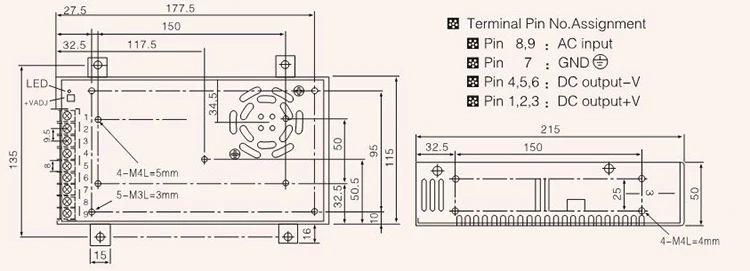

others	Dimension	21511550mm (LWH)
others	Weight/packing	1.0kg/2pcs/20kg
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair
