120W S-120 Single Output Switching DC Power Supply SMPS

120W S-120 Single Output Switching DC Power Supply SMPS

Technical Parameters

MODEL	S-120-12	S-100-15	S-100-18	S-100-24	S-100-36	S-100-48
DC VOLTAGE	12V	12V	15V	24V	36V	48V
CURRENT RANGE	0 ~ 10A	0 ~ 8A	0 ~ 6.7A	0 ~ 5A	0~3.3A	0~2.5A
EFFICIENCY	81%	82%	84%	84%	84%	84%
WAVE & NOISE	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
ADJUSTABLE RANGE FOR DC VOLTAGE	±10%	±10%	±10%	±10%	±10%	±10%
LINE REGULATION	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%	±0.2%
LOAD REGULATION	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%	±0.2%
SETUP, RISE HOLD UP TIME	200ms, 50ms,20ms/230VAC at full load
VOLTAGE RANGE	90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
IMPACT CURRENT	Cold start current 15A/115VAC 3A/230VAC
WORKING TEMP.	-10 ~ +50ºC
OVERLOAD PROTECTION	105%-150% cut off the output , automatic recovery
OVER VOLTAGE PROTECTION	105%-150% shunt down O/P voltage,re-power on to recover
WITHSTAND VOLTAGE	I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

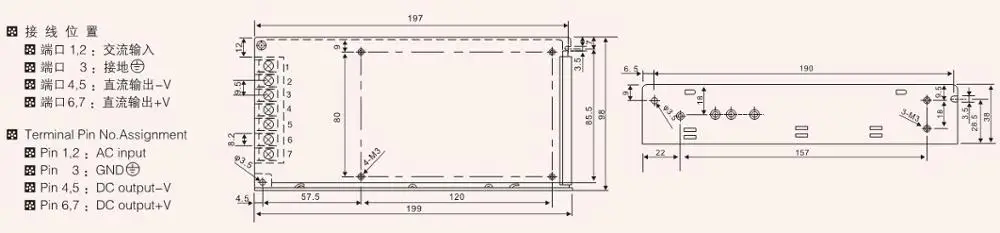

DIMENSION	1999838mm (LWH)
WERIGHT	0.6kg
PACKING	4332.524cm/30pcs/18Kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
