Winston 2 to 1 DC female and male waterproof pv solar branch connector

· Degree of protection:IP2*/IP67
· Contact material:Copper,silver plated
· 40A
· Simple on-site processing
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· Accomodates PV cable with deferent insulation diamaters
· High current carrying capacity
· Rated current:up to 40A
Availability:
Quantity:
Inquire Add to Basket

  • PVY2

  • Winston

Winston 2 to 1 DC female and male waterproof pv solar branch connector


Products Description

· Degree of protection:IP2*/IP67

· Contact material:Copper,silver plated

· 40A

· Simple on-site processing

· Mating safety provided by keyed housings

· Mutiple plugging and unplugging cycles

· Accomodates PV cable with deferent insulation diamaters

· High current carrying capacity

· Rated current:up to 40A


banner-of-solar-products

Specifications

Name
SOLAR CONNECTOR
Model Number
PVY2
Test Voltage
1000V DC
Overvoltage Type/Pollution Degree
6000V(50Hz, 1min)
Contact Resistance Of Plug Connector
CAT III /2
Contact Resistance Of Plug Connector
≤0.5mΩ
Contact Material
Copper, Tin-plated
Insulation Material
PPO
Degree Of Protection
IP2X/IP67
Flame Class
UL94-VO
Safety Class
II
Insertion Force/Withdrawal Force
≤ 50N/ ≥ 50N
Connecting System
Crimp connection
Temperature Range
-40℃ ~ +125℃

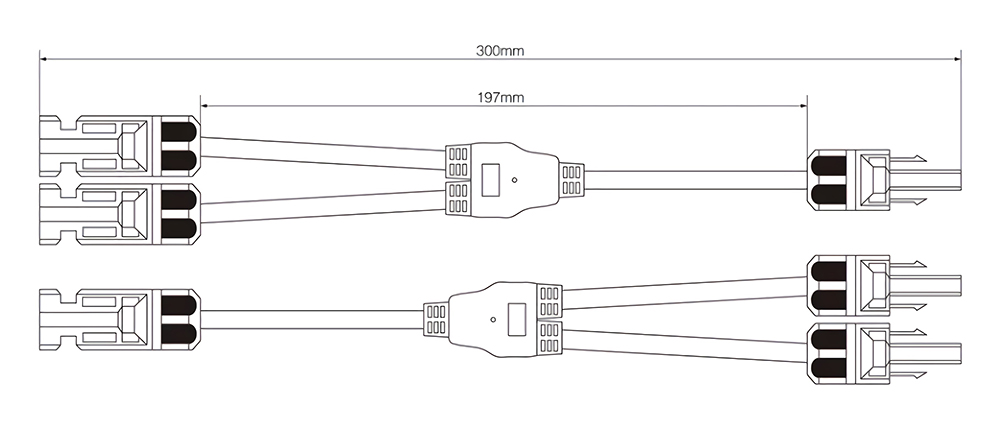

Dimension

bbe012c0b14236b42i
