WST9000S
Winston
Products Description
Winston WST9000S series solar pump inverter is newly developed high performance and high efficiency inverter, specially designed for AC pump in solar pumping system.
Specifications
Series | Model | Rated Output Power (KW) | Rated Input Current (A) | Rated Output Current (A) |
WST9000S-2 (0.75KW-2.2KW) | WST9000S-0.75G-2 | 0.75 | 9.3 | 7.2 |
WST9000S-1.5G-2 | 1.5 | 15.7 | 10.2 | |
WST9000S-2.2G-2 | 2.2 | 24 | 14 | |
WST9000S-2 (4KW-7.5KW) | WST9000S-4G-2 | 4 | 17 | 16 |
WST9000S-5.5G-2 | 5.5 | 25 | 20 | |
WST9000S-7.5G-2 | 7.5 | 33 | 30 | |
WST9000S-4 (0.75KW-315KW) | WST9000S-0.75G-4 | 0.75 | 3.4 | 2.5 |
WST9000S-1.5G-4 | 1.5 | 5 | 4.2 | |
WST9000S-2.2G-4 | 2.2 | 5.8 | 5.5 | |
WST9000S-4G-4 | 4 | 13.5 | 9.5 | |
WST9000S-5.5G-4 | 5.5 | 19.5 | 14 | |
WST9000S-7.5G-4 | 7.5 | 25 | 18.5 | |
WST9000S-11G-4 | 11 | 32 | 25 | |
WST9000S-15G-4 | 15 | 40 | 32 | |
WST9000S-18.5G-4 | 18.5 | 47 | 38 | |
WST9000S-22G-4 | 22 | 51 | 45 | |
WST9000S-30G-4 | 30 | 70 | 60 | |
WST9000S-37G-4 | 37 | 80 | 75 | |
WST9000S-45G-4 | 45 | 94 | 92 | |
WST9000S-55G-4 | 55 | 128 | 115 | |
WST9000S-75G-4 | 75 | 160 | 150 | |
WST9000S-90G-4 | 90 | 190 | 180 | |
WST9000S-110G-4 | 110 | 225 | 215 | |
WST9000S-132G-4 | 132 | 265 | 260 | |
WST9000S-160G-4 | 160 | 310 | 305 | |
WST9000S-185G-4 | 185 | 345 | 340 | |
WST9000S-200G-4 | 200 | 385 | 380 | |
WST9000S-250G-4 | 250 | 468 | 465 | |
WST9000S-280G-4 | 280 | 525 | 520 | |
WST9000S-315G-4 | 315 | 590 | 585 |
Dimension

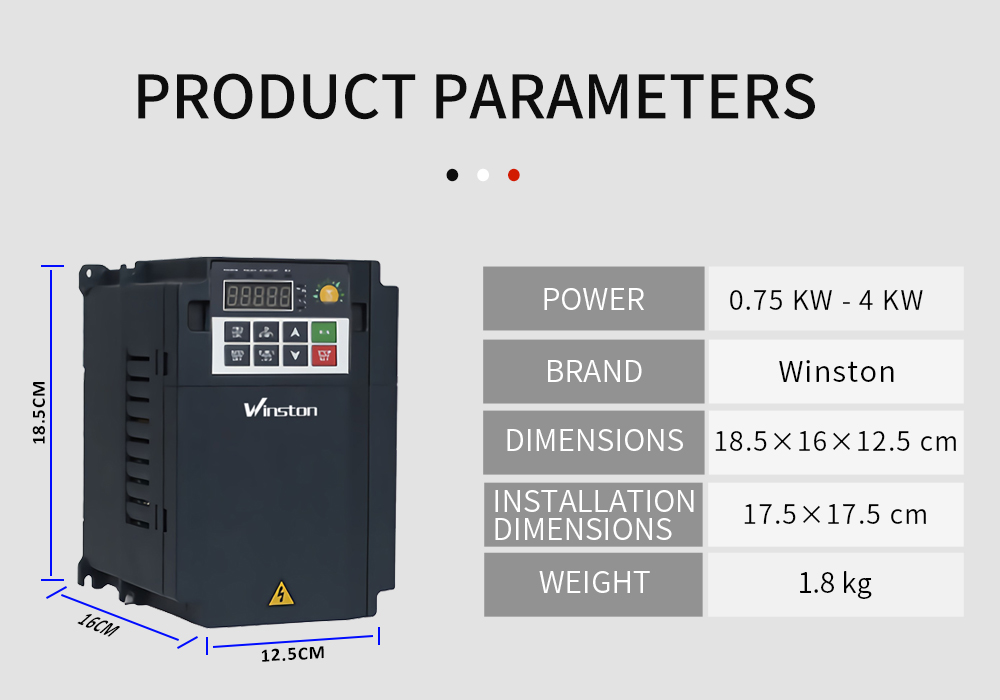

0.75kw/1.5kw/2.2kw/4kw (1HP/ 2HP/ 3HP/ 5.5HP)Solar Pump Inverters

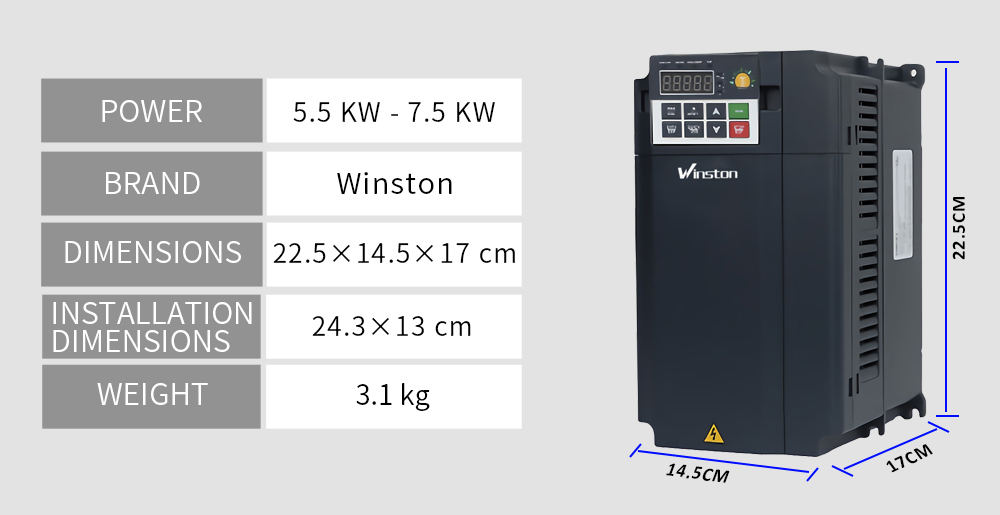

5.5kw/7.5kw(7.5HP/ 10HP) Solar Pump Inverters

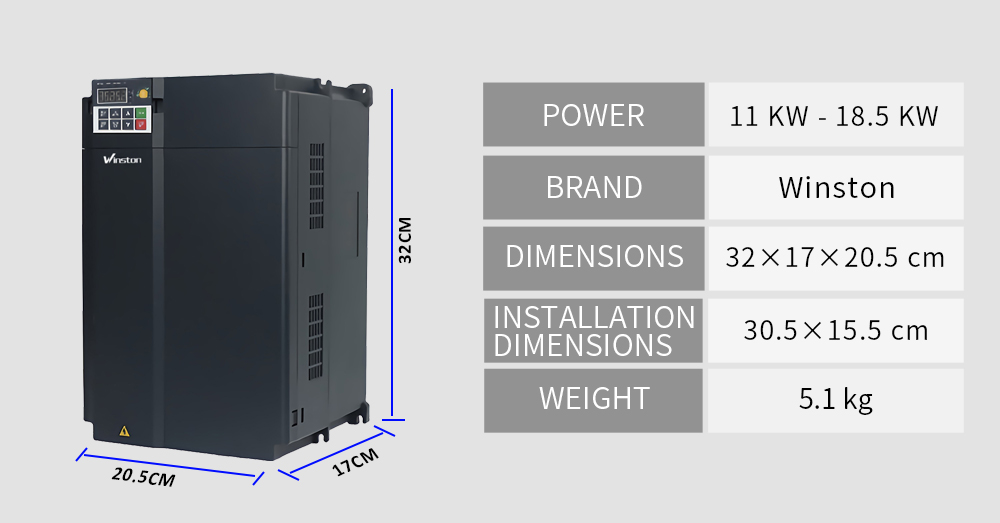

11kw/15kw/18.5kw (15HP/ 20HP/ 25HP)Solar Pump Inverters

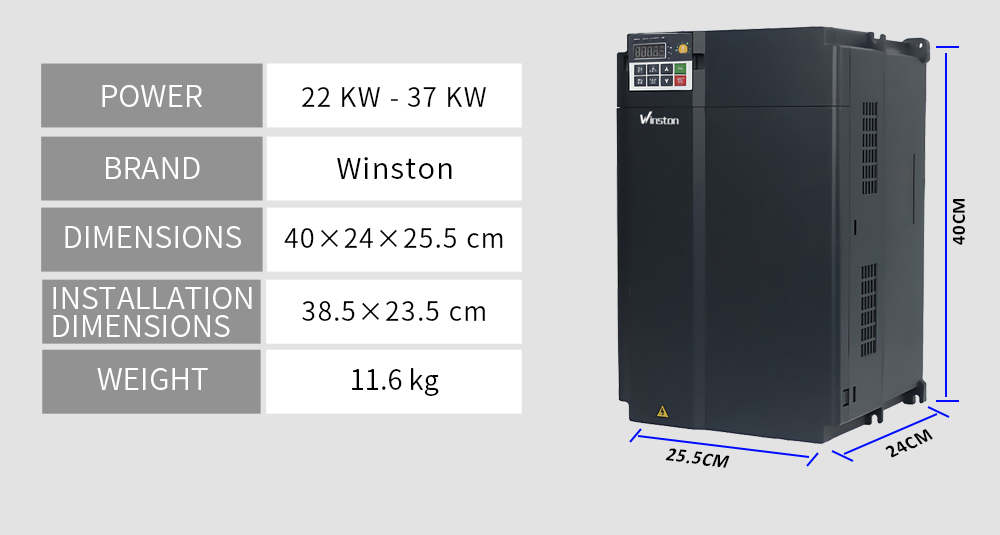

22kw/37kw (30HP/ 50HP)Solar Pump Inverters

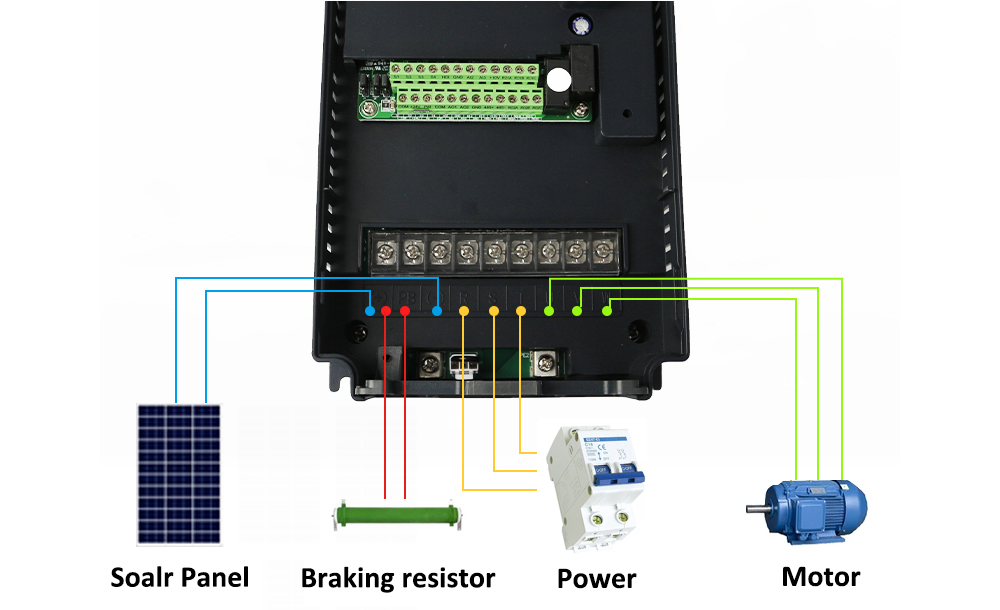

Wiring diagram

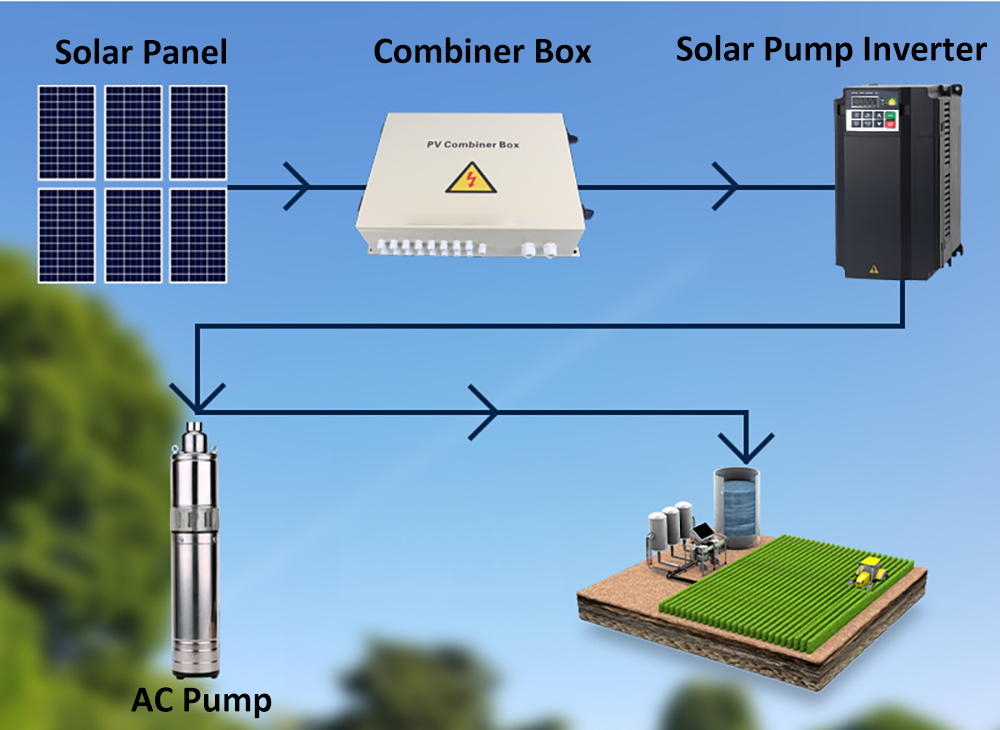

The Solar Pump Inverter can be installed on he wall or in a cabinet/combiner box. Directly get the Solar DC Voltage from solar panels or get AC Voltage from electricity. Then inverter get AC output to control the various pumps or motors.
Control panel
You can modify the parameters, monitor the working status and start or stop the WST9000S Solar Pump Inverters by operating the keypad. If the keypad is externally installed on an optional bracket, it can be 20 meters away from the inverter at most
