SP-200
Winston
8504401990
SP-200
Made in China
Export standard carton box
PCS
10
3-7days
| Model | SP-200-3.3 | SP-200-5 | SP-200-7.5 | SP-200-12 | SP-200-13.5 | SP-200-15 | SP-200-24 | SP-200-27 | SP-200-48 | |
| Output | DC voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V | |
| Voltage tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1% | |
| Rated current | 40A | 40A | 26.7A | 16.7A | 14.9A | 13.4A | 8.4A | 7.5A | 4.2A | |
| Current range | 0-40A | 0-40A | 0-26.7A | 0-16.7A | 0-14.9A | 0-13.4A | 0-8.4A | 0-7.5A | 0-4.2A | |
| Rated power | 200W | 200W | 200W | 200W | 200W | 200W | 200W | 200W | 200W | |
| Ripple&noise | 100mvp-p | 100mvp-p | 100mvp-p | 100mvp-p | 100mvp-p | 100mvp-p | 150mvp-p | 150mvp-p | 2000mvp-p | |
| DCvoltage ADJ.range | -9%~+10% | -9%~+10% | -9%~+10% | -9%~+10% | -9%~+10% | ±10% | ±10% | ±10% | ±10% | |
| Input | Voltage range | 90~264VAC，120~373VDC | ||||||||
| frequency | 47~63HZ | |||||||||
| AC current | 1.6A/115VAC，0.8A/230VAC | |||||||||
| efficiency | 65% | 71% | 76% | 79% | 80% | 81% | 83% | 83% | 84% | |
| Inrush current | Cold start current 20A/115VAC，40A/230VAC | |||||||||
| Leakage current | < 3.5mA/240VAC | |||||||||
| Protection | overload | Rated output power115%~150% start over load protection | ||||||||
| Protection type：cutoff output，auto recovery after fault condition is removed | ||||||||||
| Protection type：hiccup mode，auto-recovery after fault condition is removed | ||||||||||
| Environment | Working temp,humidity | -10℃~+60℃，20%~90%RH | ||||||||
| Storagetemp,humidity | -20℃~+85℃，10%~95%RH non-condensing | |||||||||
| Withstand vibration | 10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | |||||||||
| Safety | Withstand voltage | I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||||||||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | |||||||||
| Fitstandard | Safety standard | Fit UL1012 | ||||||||
| EMC standard | EN55022，CLASSA | |||||||||

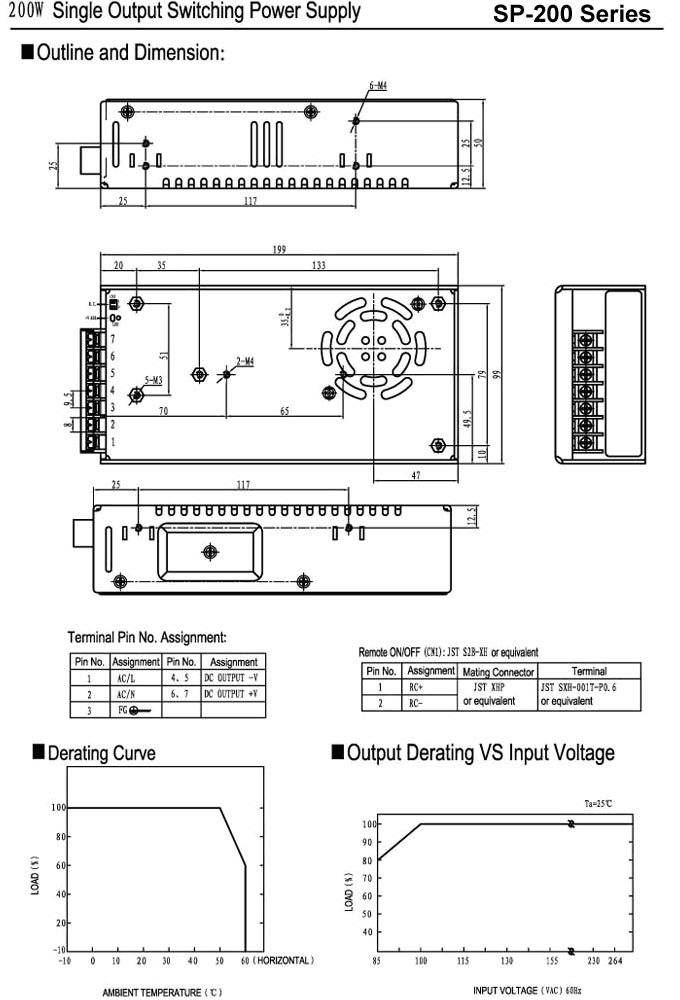

| Others | Dimension | 199*99*50mm (L*W*H) | ||||||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||||||
| Model | SP-200-3.3 | SP-200-5 | SP-200-7.5 | SP-200-12 | SP-200-13.5 | SP-200-15 | SP-200-24 | SP-200-27 | SP-200-48 | |
| Output | DC voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V | |
| Voltage tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1% | |
| Rated current | 40A | 40A | 26.7A | 16.7A | 14.9A | 13.4A | 8.4A | 7.5A | 4.2A | |
| Current range | 0-40A | 0-40A | 0-26.7A | 0-16.7A | 0-14.9A | 0-13.4A | 0-8.4A | 0-7.5A | 0-4.2A | |
| Rated power | 200W | 200W | 200W | 200W | 200W | 200W | 200W | 200W | 200W | |
| Ripple&noise | 100mvp-p | 100mvp-p | 100mvp-p | 100mvp-p | 100mvp-p | 100mvp-p | 150mvp-p | 150mvp-p | 2000mvp-p | |
| DCvoltage ADJ.range | -9%~+10% | -9%~+10% | -9%~+10% | -9%~+10% | -9%~+10% | ±10% | ±10% | ±10% | ±10% | |
| Input | Voltage range | 90~264VAC，120~373VDC | ||||||||
| frequency | 47~63HZ | |||||||||
| AC current | 1.6A/115VAC，0.8A/230VAC | |||||||||
| efficiency | 65% | 71% | 76% | 79% | 80% | 81% | 83% | 83% | 84% | |
| Inrush current | Cold start current 20A/115VAC，40A/230VAC | |||||||||
| Leakage current | < 3.5mA/240VAC | |||||||||
| Protection | overload | Rated output power115%~150% start over load protection | ||||||||
| Protection type：cutoff output，auto recovery after fault condition is removed | ||||||||||
| Protection type：hiccup mode，auto-recovery after fault condition is removed | ||||||||||
| Environment | Working temp,humidity | -10℃~+60℃，20%~90%RH | ||||||||
| Storagetemp,humidity | -20℃~+85℃，10%~95%RH non-condensing | |||||||||
| Withstand vibration | 10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | |||||||||
| Safety | Withstand voltage | I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||||||||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | |||||||||
| Fitstandard | Safety standard | Fit UL1012 | ||||||||
| EMC standard | EN55022，CLASSA | |||||||||
| Others | Dimension | 199*99*50mm (L*W*H) | ||||||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||||||
