SP-150 150W AC to DC Single output switching power supply with PFC Function

Share to:

SP-150 150W AC to DC Single output switching power supply with PFC Function

Features:
·Universal AC input/ full range
·Built-in active PFC function, PF>0.93
·100% full load burn-in test
·Protections: Short circuit/ Over load / Over voltage/ Over temperature
·Built-in constant current limiting circuit
·LED indicator for power on
·Remote ON-OFF control (Optional)
·Fixed switching frequency at PF: 67KHz PWM: 134 KHz
·2 years warranty

Quantity:



Inquire Add to Basket

Model:
SP-150
Brand:
Winston
Code:
8504401990
Model:
SP-150
Trademark:
Winston
Origin:
Made in China
Packing:
Export standard carton box
Unit:
PCS
Min order:
10
TransTime:
3-7days

Technical Data Sheet

Model		SP-150-5	SP-150-7.5	SP-150-12	SP-150-13.5	SP-150-15	SP-150-24	SP-150-27	SP-150-48
Output	DC voltage	5V	7.5V	12V	13.5	15V	24V	27V	48V
	Voltage tolerance	±2%	±2%	±2%	±2%	±2%	±1%	±1%	±1%
	Rated current	30A	20A	12.5A	11.2A	10A	6.3A	5.6A	3.2A
	Current range	0~30A	0-20A	0~12.5A	0-11.2A	0~10A	0~6.3A	0~5.6A	0~3.2A
	Rated power	150W	150W	150W	150W	150W	150W	150W	150W
	Ripple&noise	100mvp-p	100mvp-p	100mvp-p	100mvp-p	100mvp-p	150mvp-p	150mvp-p	150mvp-p
	DC voltage ADJ.range	-9%~+10%	±10%	±10%	±10%	±10%	±10%	±10%	±10%
Input	Voltage range	90~264VAC，120~373VDC
	frequency	47~63HZ
	AC current	0.93A/115VAC，0.93A/230VAC
	efficiency	75%	79%	80%	80%	81%	83%	84%	84%
	Inrush current	Cold start current 20A/115VAC，40A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	overload	Rated output power115%~150% start over load protection
	overload	Protection type：cutoff output，auto recovery after fault condition is removed
	Over voltage
	Over voltage	Protection type：hiccup mode，auto-recovery after fault condition is removed
	-----	-----
	-----	-----
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storagetemp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC
Safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	EN55022，CLASSA

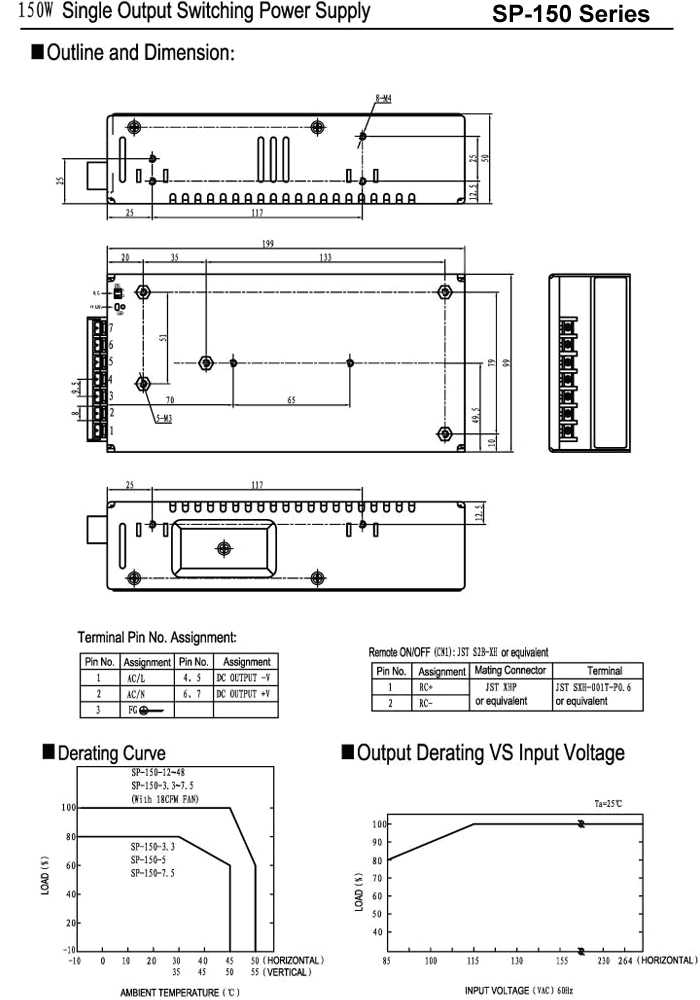

Others	Dimension	1999950mm (LWH)
Others	Weight/packing	0.7kg/30pcs/24kg/0.034 m⊃3;/1.20CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
