Inductance proximity sensor M18 works

Quantity:
  • LM18
  • Winston

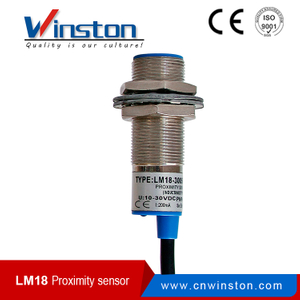

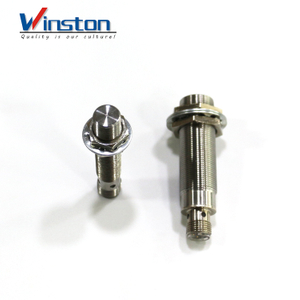

This sample came from Winston Electric CO.,Ltd, it's inductance type, As you see, the model number of this one is LM18, it used to detect metal, The features of this series are compact volume and good performance of anti-interference. i will show you next. The detection distance of this type is 5mm, it can be made long or short as required, When it works, the led light is on


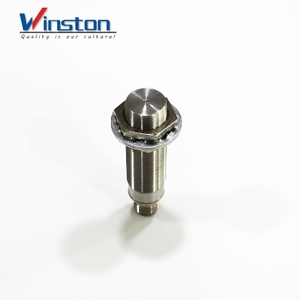

LM18 Inductive proximity sensor
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life



 Model explanation of proximity switch


 1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
 2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
 3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
 4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
 5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
 L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
 6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
 7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
 H: High temp resistance; R: Ring type)

 Technical Parameters:


       OVERALL DIMENSIONS








                    DETECTION DISTANCE                            5mm
       Flush        DC 10-30V        NPN        NO        LM18-3005NA
       NC        LM18-3005NB
       NO+NC        LM18-3005NC
       PNP        NO        LM18-3005PA
       NC        LM18-3005PB
       NO+NC        LM18-3005PC
       two wire system        NO        LM18-3005LA
       NC        LM18-3005LB
       AC 90-250V        SCR Control-lable silicon        NO        LM18-2005A
       NC        LM18-2005B
       NO+NC
       Relay output
               DETECTION DISTANCE                            8mm
       Non-Flush        DC 10-30V        NPN        NO        LM18-3008NA
       NC        LM18-3008NB
       NO+NC        LM18-3008NC
       PNP        NO        LM18-3008PA
       NC        LM18-3008PB
       NO+NC        LM18-3008PC
       two wire system        NO        LM18-3008LA
       NC        LM18-3008LB
       AC 90-250V        SCR Control-lable silicon        NO        LM18-2008A
       NC        LM18-2008B
       NO+NC
       Relay output
       Controloutput        DC        200mA
       SCR/ Relay        300mA
       Output voltagc dropDC/AC        NPN/PNP<3V,Two wire<3.9V,AC<10V
       Consumption current        DC<15mA,AC<10mA
       Standard detected object        18*18*1(A3 iron)
       Repeated precision        0.02
       DC/AC        200Hz/25Hz
       Working environment temperature        -25℃~+70℃
       Insulation resistance        50MΩ
       Shell material        Metal
       Protection grade        IP67
         Altemative model at home and abroad        LJ18A3-8-
