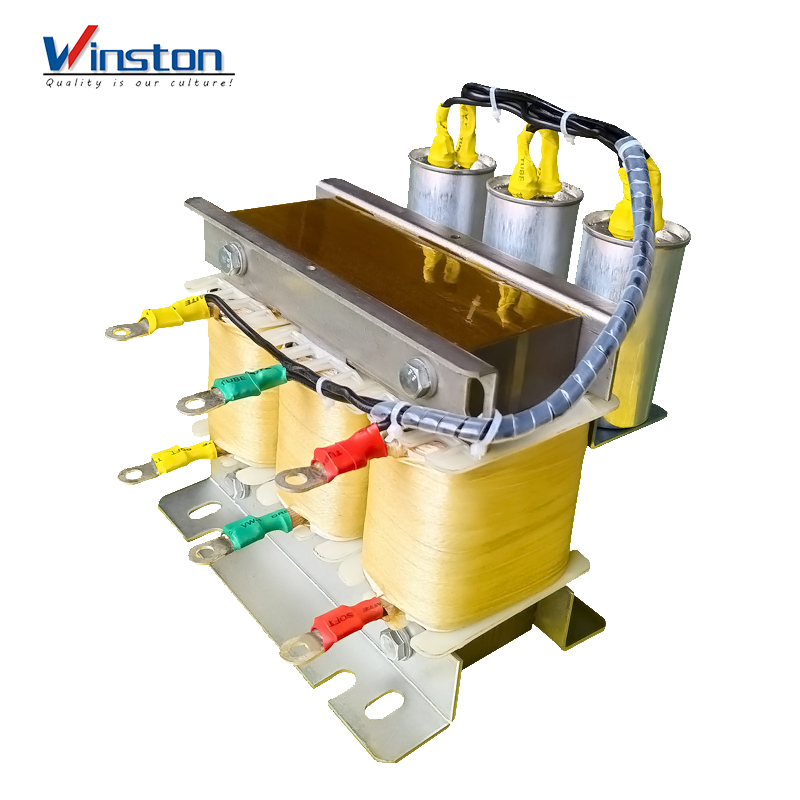

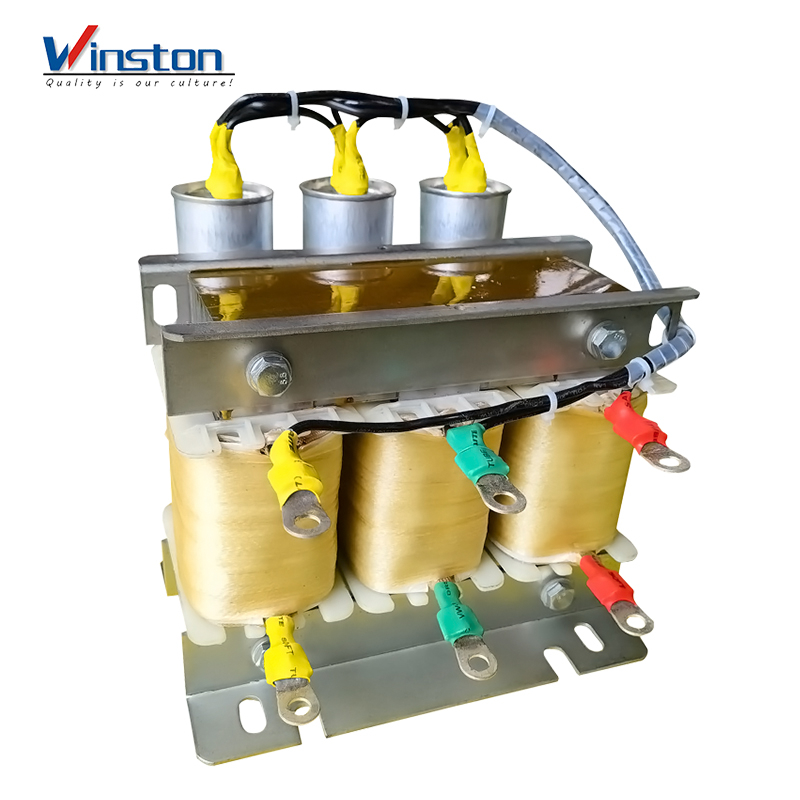

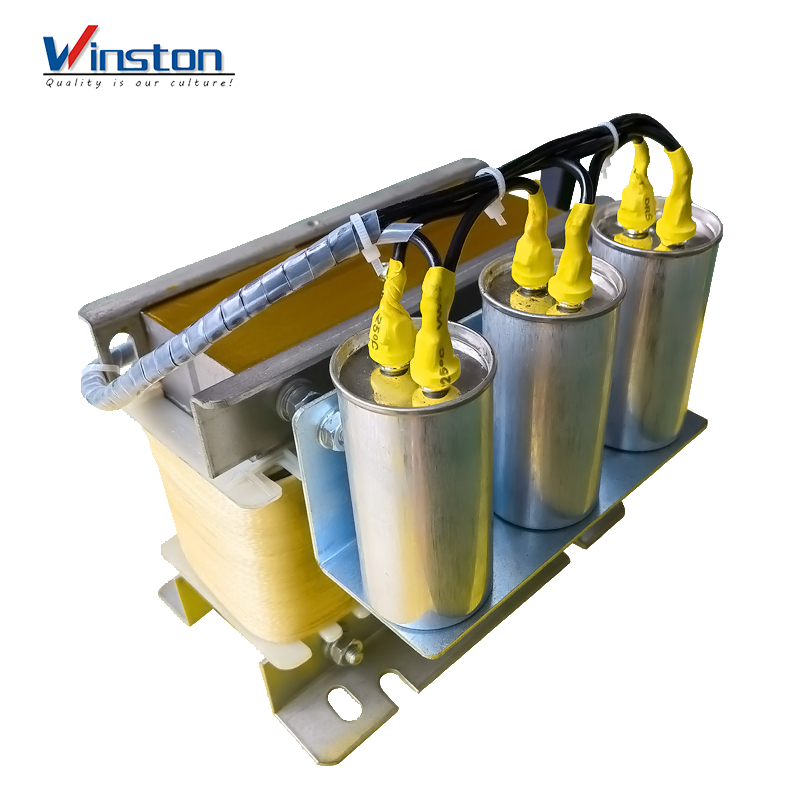

High Quality 1.5KW - 400KW Inverter Dedicated Output Reactor

Availability:
Quantity:
Inquire Add to Basket

  • WST-SCR

  • Winston

Features


Technical Parameters
Model
Adaptive power (KW)
Carrier frequency (KHz)
Rated current (A)
WST-SCR-0003A-0.4
1.5
4
3
WST-SCR-0005A-0.4
2.2
4
5
WST-SCR-0010A-0.4
4
4
10
WST-SCR-0013A-0.4
5.5
4
13
WST-SCR-0020A-0.4
7.5
4
20
WST-SCR-0025A-0.4
11
4
25
WST-SCR-0030A-0.4
15
4
60
WST-SCR-0040A-0.4
18.5
4
40
WST-SCR-0050A-0.4
22
4
50
WST-SCR-0060A-0.4
30
3
60
WST-SCR-0080A-0.4
37
3
80
WST-SCR-0090A-0.4
45
3
90
WST-SCR-0110A-0.4
55
3
110
WST-SCR-0150A-0.4
75
3
150
WST-SCR-0180A-0.4
90
3
180
WST-SCR-0240A-0.4
110
2
240
WST-SCR-0270A-0.4
132
2
270
WST-SCR-0330A-0.4
160
2
330
WST-SCR-0400A-0.4
200
2
400
WST-SCR-0440A-0.4
220
2
440
WST-SCR-0500A-0.4
250
2
500
WST-SCR-0560A-0.4
280
2
560
WST-SCR-0630A-0.4
315
2
630
WST-SCR-0720A-0.4
350
2
720
WST-SCR-0800A-0.4
400
2
800


Packaging & Shipping
