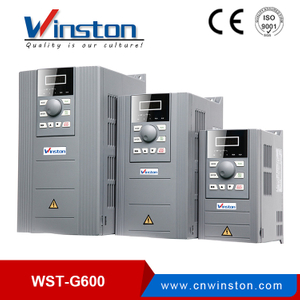

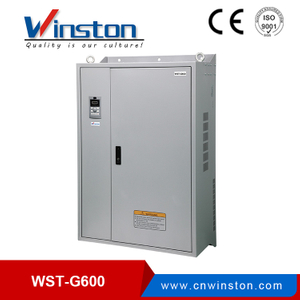

China WSTG600 3- phase Frequency drive inverter

WST-600 Frequency inverter
Single phase:220VAC ,0.4KW,0.75KW,1.5KW,2.2KW,4KW
Three phase:380VAC,480VAC,690VAC,1140VAC,from 0.75KW to 630KW
OEM
RS485

Quantity:
  • WSTG600
  • Winston
  • 8504409999


Power input:

Rated input voltage Rated input current Frequency Allowable Voltage range

3-phase :

380VAC/400VAC/415VAC/

440VAC/460VAC/480VAC

     See the table "Model

information of WSTG600 series*

50Hz/60Hz, tolerance ±5%

Voltage consecutive fluctuation±10%,

short fluctuation -15%~10% i.e. 323V-528V

Voltage out-of-balance rate:<3% ,

THD meets the standards of IEC61800-2.



Power output:

Applicable motor Rated current Output voltage Output frequency Over load capability
See the table "Model Information of WSTG600 series" See the table "Model information of WSTG600 series" 3-phase: 0~ rated input j voltage, error less than 1 ±3% 0.00Hz~600Hz, Resolution 0.01Hz. 150% 1 min ; 180% 10s ; 200% 0.5s,once per10mins.

Control characteristics:

Control pattern V/F control Speed-sensorless control 1 Speed-sensorless control 2 Speed-sensor control Position control
Starting torque 0.5Hz 180% 0.5Hz 180% 0.25Hz 180% 0Hz 200%
Speed range 1:100 1:100 1:200 1:100
Speed accuracy ±0.5% ±0.2% ±0.2% ±0.02%
Speed ripple - ±0.3% ±0.3%  ±0.1%
Torque control  No  No Yes Yes
Torque accuracy - - ±7.5% ±5%
Torque response - <10ms <10ms <5ms
Positioning accuracy - - - ±1 pulse



Dimension

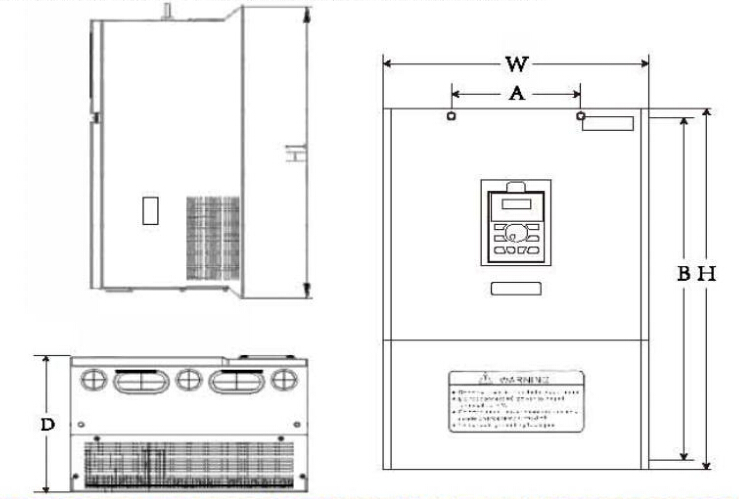

wst600 dimension.jpg


Safety procautions
1. Before Installation:

 ! Danger * Do not use the water-logged inverter, damaged inverter or inverter with missing parts. Otherwise, there may be risk of injury.
* Use the motor with Class B or above insulation. Otherwise, there may be risk of electric shock.
! Danger * Carefully handled when loading, otherwise it may damage the inverter.
* Plwase don't use the damaged driver or inverter with missing parts, there may be risk of injury.
* Do not touch the electronic parts and components; otherwise it will cause static electricity.

2. During Installation:

! Danger * Install the inverter on incombustible surface such as metal, and keep away from flammable substances. Otherwise it may cause fire.
* Do not loose the set screw of the equipment, especially the swrews marked in RED.
! Danger * Do not drop the cable residual or screw in the inverter. Otherwise it may damage the inverter.
* Please install the driver in the place where there is no direct sunlight or less vibratory.
* When more than two inverters are to be installed in one cabinet, due attenton should be paid to the installation locations to ensure the heat sinking effect.

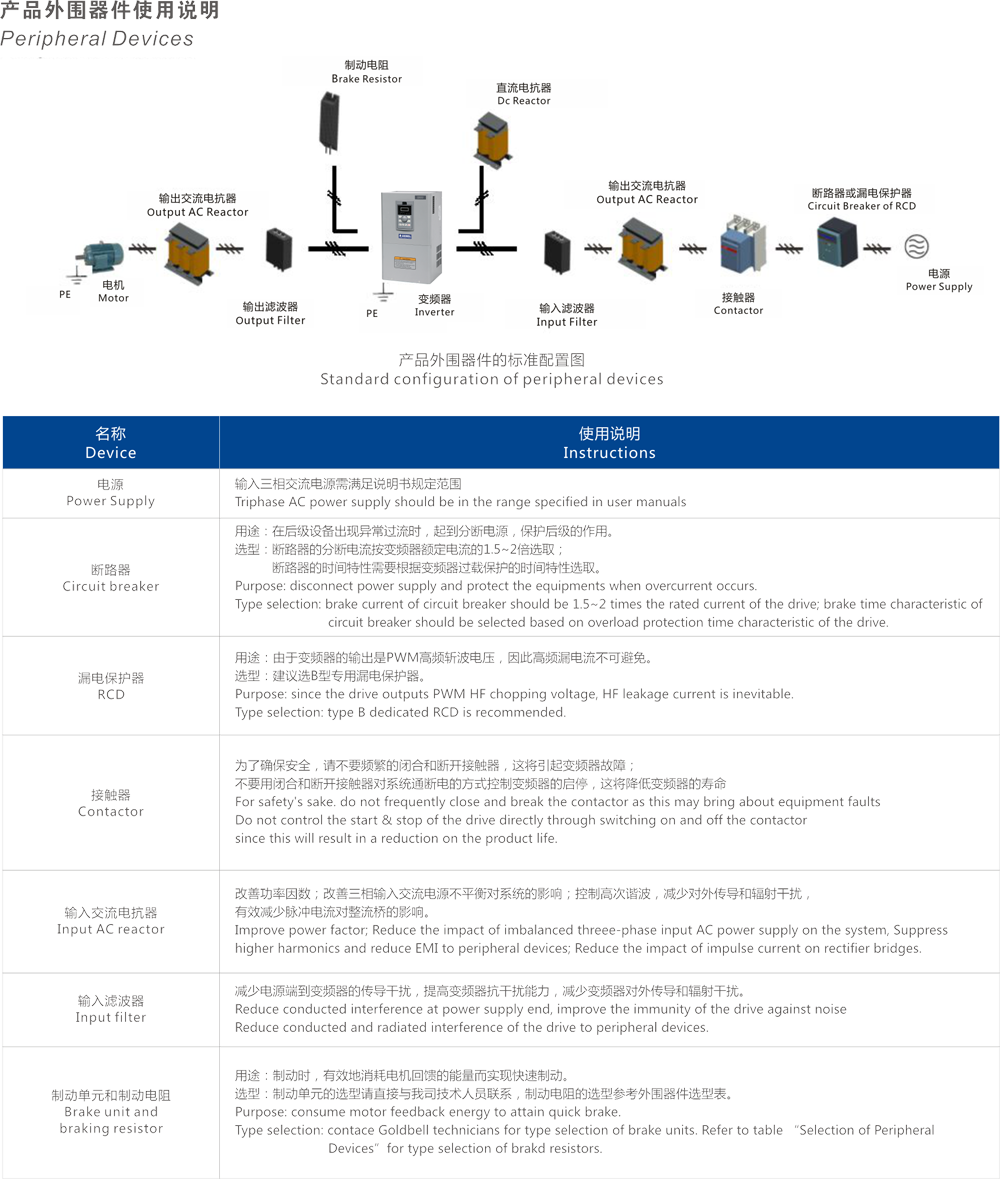

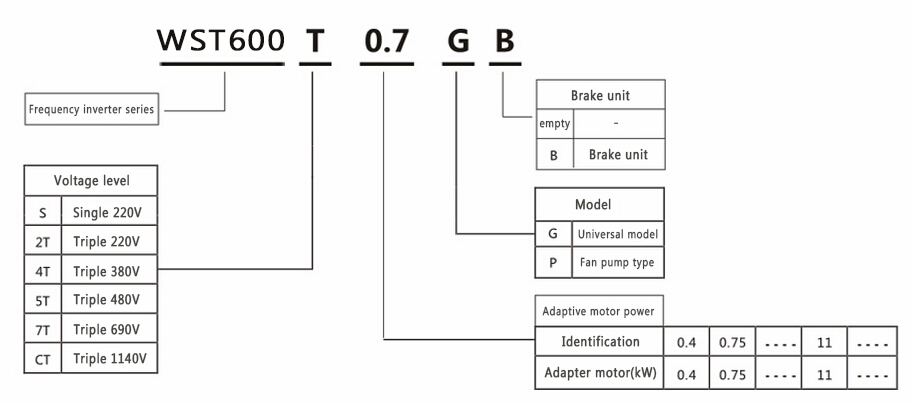

Model explanation

frequency inverter



Model Information:

Single phase power supply 220V 50/60Hz

Model Power Capacity                         (KVA)       Input Current            (A)     Output current   (A) Applicable motor
kW HP
WSTWSTG600-2S 0.4GB 1.0 5.4 2.3 0.4 0.5
WSTG600-2S 0.7GB 1.5 8.2 4.0 0.75 1
WSTG600-2S 1.5GB 3.0 14.0 7.0 1.5 2
WSTG600-2S 2.2GB 4.0 23.0 9.6 2.2 3
WSTG600-2S 4.0GB 5.9 18 19.2 4 5

  Three-phase power supply 380V 50/60Hz

Model Power Capacity              (KVA) Input current                    (A) Output current   (A) Applicable motor
kW HP
WSTG600-4T0.7GB 1.5 3.4 2.1 0.75 1
WSTG600-4T1.5GB 3.0 5.0 3.8 1.5 2
WSTG600-4T2.2GB 4.0 5.8 5.1 2.2 3
WSTG600-4T4.0GB 5.9 10.5 9.0 4.0 5
WSTG600-4T5.5GB WSTG600-4T5.5P-B 8.9 14.6 13.0 5.5 7.5
WSTG600-4T7.5GB WSTG600-4T7.5P-B 11.0 20.5 17.0 7.5 10
WSTG600-4T11GB WSTG600-4T11P-B 17.0 26.0 25.0 110 15
WSTG600-4T15GB WSTG600-4T15P-B 21.0 35.0 32.0 15.0 20
WSTG600-4T18.5G WSTG600-4T18.5P-B 24.0 38.5 37.0 18.5 25
WSTG600-4T22G WSTG600-4T22P 30.0 46.5 45.0 22 30
WSTG600-4T30G WSTG600-4T30P 40.0 62.0 60.0 30 40
WSTG600-4T37G WSTG600-4T37P 57.0 76.0 75.0 37 so
WSTG600-4T45G WSTG600-4T45P 69.0 92.0 91.0 45 60
WSTG600-4T55G WSTG600-4T55P 85.0 113.0 112.0 55 70
WSTG600-4T75G WSTG600-4T75P 114.0 157.0 150.0 75 100
WSTG600-4T90G WSTG600-4T90P 134.0 180.0 176.0 90 125
WSTG600-4T110G WSTG600-4T110P 160.0 214.0 2100 110 150
WSTG600-4T132G WSTG600-4T132P 192.0 256.0 253.0 132 175
WSTG600-4T160G WSTG600-4T160P 231.0 307.0 304.0 160 210
WSTG600-4T185G WSTG600-4T185P 234.0 326.0 350.0 185 250
WSTG600-4T200G WSTG600-4T200P 250.0 385.0 377.0 200 260
WSTG600-4T220G WSTG600-4T220P 280.0 430.0 426.0 220 300
WSTG600-4T250G WSTG600-4T250P 355.0 468.0 465.0 2S0 350
WSTG600-4T280G WSTG600-4T280P 396.0 525.0 520.0 280 370
WSTG600-4T315G WSTG600-4T315P 445.0 590.0 585.0 315 500
WSTG600-4T355G WSTG600-4T355P 500.0 665.0 650.0 355 420
WSTG600-4T400G WSTG600-4T400P 565.0 785.0 725.0 400 530
WSTG600-4T450P 630.0 883.0 820.0 450 600



Frequency inverter function:

  • Support synchronous and asynchronous motor.

  • Speed-sensor control and speed-sensorless control programmable.

  • Position control, speed conrol and torque control programmable.


And the frequency inverter commonly used models are WSTG600-2S single-phase 220V , WSTG600-4T three-phase 380V.


We will check the goods before shipment, and then pack them, indicating the size and weight.

Professional manufacturer, quality is our culture!
READ MORE>>
