3Phase 75KW 100HP High Performance Vector Frequency Inverter (WSTG600-4T75)

Quantity:
  • WSTG600-4T75G WSTG600-4T75P
  • Winston

3Phase 75KW 100HP High Performance Vector Frequency (WSTG600-4T75)

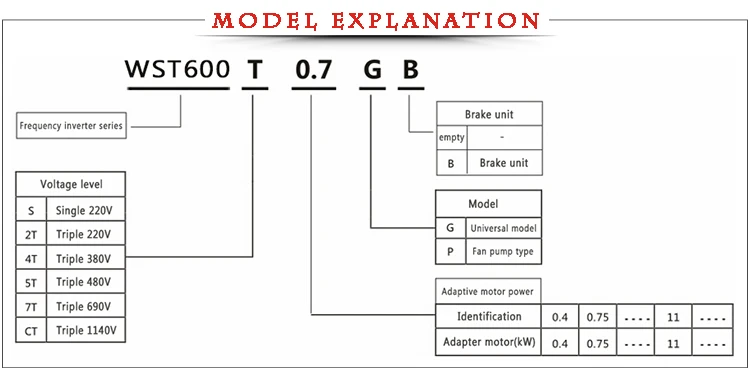

Model Explanation


Three-Phase power supply : 380V 50/60Hz
Model Power Capacity    KVA Input current output current Adapation Notor
KW HP
WSTG600-4T0.7GB 1.5 3.4 2.1 0.75 1
WSTG600-4T1.5GB 3.0 5.0 3.8 1.5 2
WSTG600-4T2.2GB 4.0 5.8 5.1 2.2 3
WSTG600-4T4.0GB 5.9 10.5 9.0 4 5
WSTG600-4T5.5GB   WSTG600-4T5.5PB 8.9 14.6 13.0 5.5 7.5
WSTG600-4T7.5GB   WSTG600-4T7.5PB 11.0 20.5 17.0 7.5 10
WSTG600-4T11GB     WSTG600-4T11PB 17.0 26.0 25.0 11 15
WSTG600-4T15GB     WSTG600-4T15PB 21.0 35.0 32.0 15 20
WSTG600-4T18.5G    WSTG600-4T18.5PB 24.0 38.5 37.0 18.5 25
WSTG600-4T22G        WSTG600-4T22P 30.0 46.5 45.0 22 30
WSTG600-4T30G        WSTG600-4T30P 40.0 62.0 60.0 30 40
WSTG600-4T37G        WSTG600-4T37P 57.0 76.0 75.0 37 50
WSTG600-4T45G        WSTG600-4T45P 69.0 92.0 91.0 45 60
WSTG600-4T55G        WSTG600-4T55P 85.0 113.0 112.0 55 70
WSTG600-4T75G        WSTG600-4T75P 114.0 157.0 150.0 75 100
WSTG600-4T90G        WSTG600-4T90P 134.0 180.0 176.0 90 125
WSTG600-4T110G      WSTG600-4T110P 160.0 214.0 210.0 110 150
WSTG600-4T132G      WSTG600-4T132P 192.0 256.0 253.0 132 175
WSTG600-4T160G      WSTG600-4T160P 231.0 307.0 304.0 160 210
WSTG600-4T185G      WSTG600-4T185P 234.0 326.0 350.0 185 250
WSTG600-4T200G      WSTG600-4T200P 250.0 385.0 377.0 200 260
WSTG600-4T220G      WSTG600-4T220P 280.0 430.0 426.0 220 300
WSTG600-4T250G      WSTG600-4T250P 355.0 468.0 465.0 250 350
WSTG600-4T280G      WSTG600-4T280P 396.0 525.0 520.0 280 370

WSTG600-4T315G      WSTG600-4T315P

445.0 590.0 585.0 315 500
WSTG600-4T355G      WSTG600-4T355P 500.0 665.0 650.0 355 420
WSTG600-4T400G      WSTG600-4T400P 565.0 785.0 725.0 400 530
WSTG600-4T450P 630.0 883.0 820.0 450 600

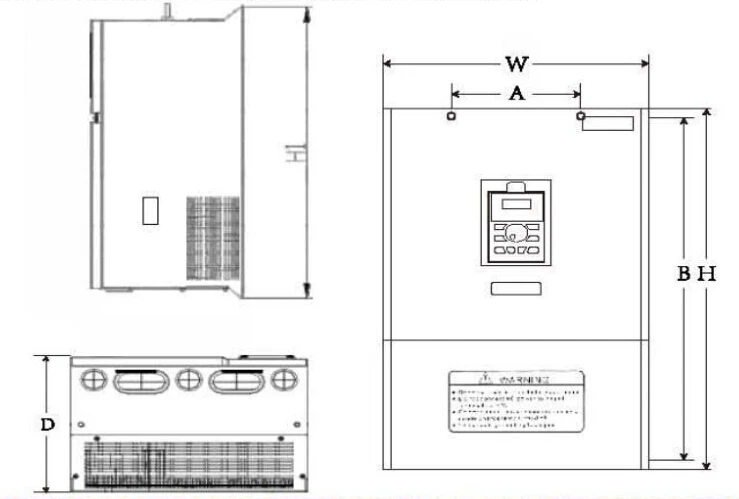

Overall dimensions

wst600 dimension.jpg


Product Description

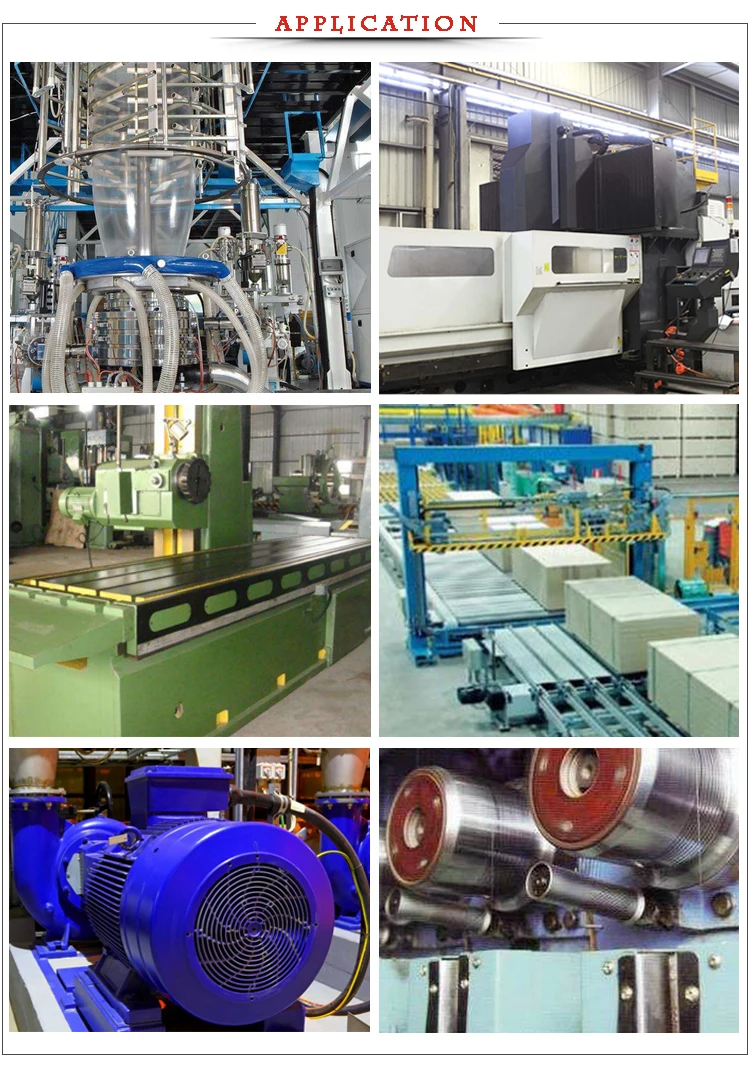

Application


Why Choose Us


Packaging & Shipping

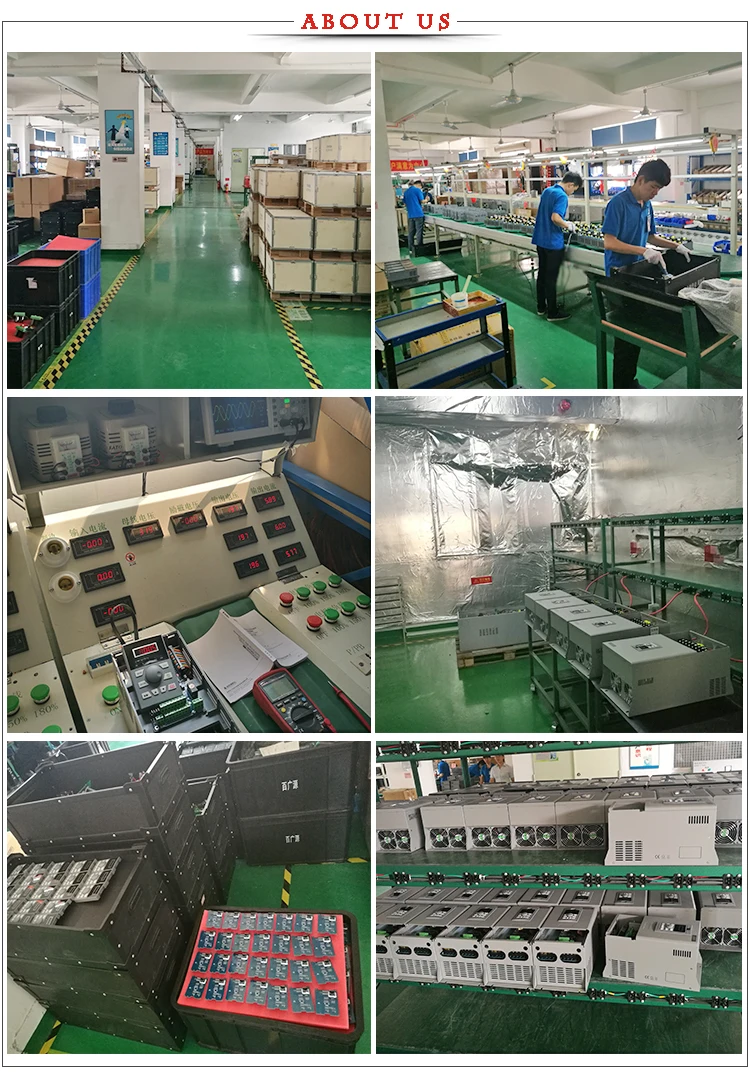

About us


Professional manufacturer, quality is our culture!
