E6B2-CWZ6C
Winston
Products Description
E6B2-CWZ6C 1000P Incremental Rotary Encoder (body diamter 40mm)
E6B2-CWZ6C Incremental Rotary Encoder (40-mm-dia.)Rotary Encoder,Motor encoders,manual encoders,
hollow shaft encoder,servo motor
Rotary encoder E6B2
INCREMENTAL ROTARY ENCODERS,OUTSIDE DIAMΦ40
Product advantage
Technical parameter
| Electrical parameters | Mechanical parameters | ||
| Resolution | 10-3600P/R | Start the moment | 2 x10^-3N - m (+ 25 ° C) |
| Power supply voltage | DC5V-24V,DC5V | Allowable shaft load | 9.8N axial and 9.8N radial |
| Output voltage VH | ≥3.5.≥Vcc-2.5 V | The moment of inertia | 4x10^-7 Kg㎡ |
| Output voltage VL | ≤0.5V ≤1.0 V | The largest number of revolutions | 5000r/min |
| Current consumption | ≤100mA | Working temperature | -20℃~+70℃ |
| The output phase | A, B, Z, A, B, Z | Storage temperature | -20℃~+80℃ |
| Response frequency | 0-100kHz | Protection grade | IP65 |
| Rise/fall time | 24V ＜1us 5V driver ≤0.1 us | Shock resistant | 50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each) |
| Impact resistant | 980m/s^2 | ||
Dimension

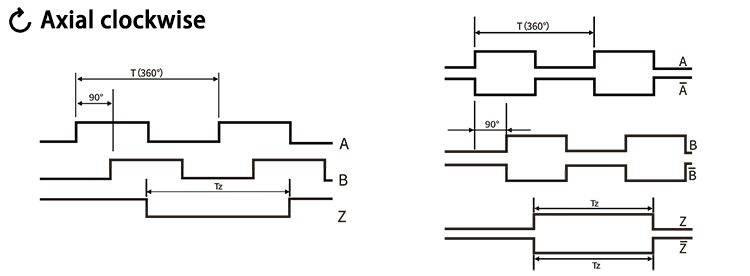

Output waveform

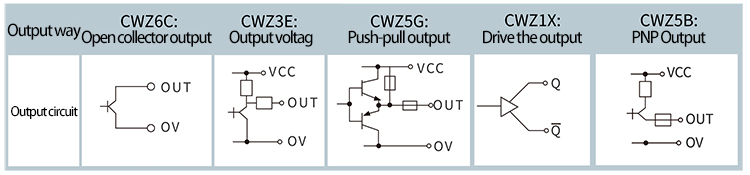

Wiring diagram
| Signal | VCC | OV | SIG A | SIGA | SIG B | SIGB | SIGZ | SIGZ | N.C |
| Cable color | Brown | Blue | Black | Black/Red | White | White/Red | Orange | Orange/Red | Bronze |
