OVW2 optical incremental rotary encoder made in china with switch ip67

Availability:
Quantity:
  • OVW2
  • Winston

OVW2 optical incremental rotary encoder made in china with switch ip67


Products Description


   Widely used in automatic control, automatic measurement, as the angle and speed sensors.

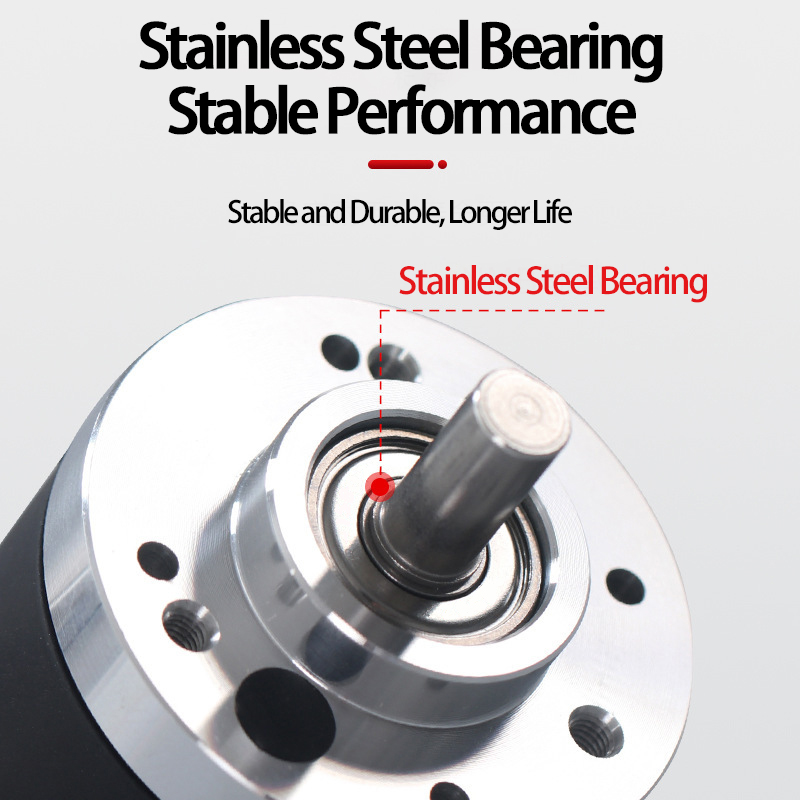

Good reliability,long life, anti-jamming performance. Stainless steel shaft has a higher stability
and protection.Metal shell is more solid andanti-impact. Bearing load heavy, anti-oil and water.


详情页1详情页2


Product advantage


优势

Technical parameter


Electrical parameters
Mechanical parameters
Resolution
10-3600P/R
Start the moment
2 x10^-3N - m (+ 25 ° C)
Power supply voltage
DC5V-24V,DC5V
Allowable shaft load
9.8N axial and 9.8N radial
Output voltage VH
≥3.5.≥Vcc-2.5 V
The moment of inertia
4x10^-7 Kg㎡
Output voltage VL
≤0.5V ≤1.0 V
The largest number of revolutions
5000r/min
Current consumption
≤100mA
Working temperature
-20℃~+70℃
The output phase
A, B, Z, A, B, Z
Storage temperature
-20℃~+80℃
Response frequency
0-100kHz
Protection grade
IP65
Rise/fall time
24V <1us
5V driver ≤0.1 us
Shock resistant
50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each)
Impact resistant
980m/s^2

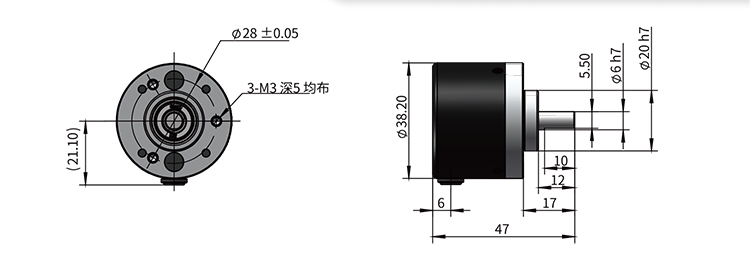

Dimension


尺寸

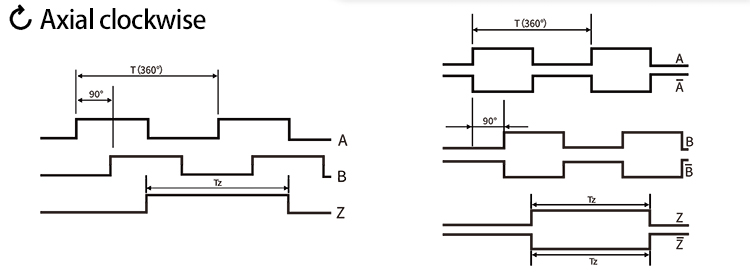

Output waveform


12


Wiring diagram


Signal
VCC
OV
SIG A
SIGA
SIG B
SIGB
SIGZ
SIGZ
N.C
Cable color
Red
Black
Green
Blue
White
Grey
Yellow
Orange
Bronze

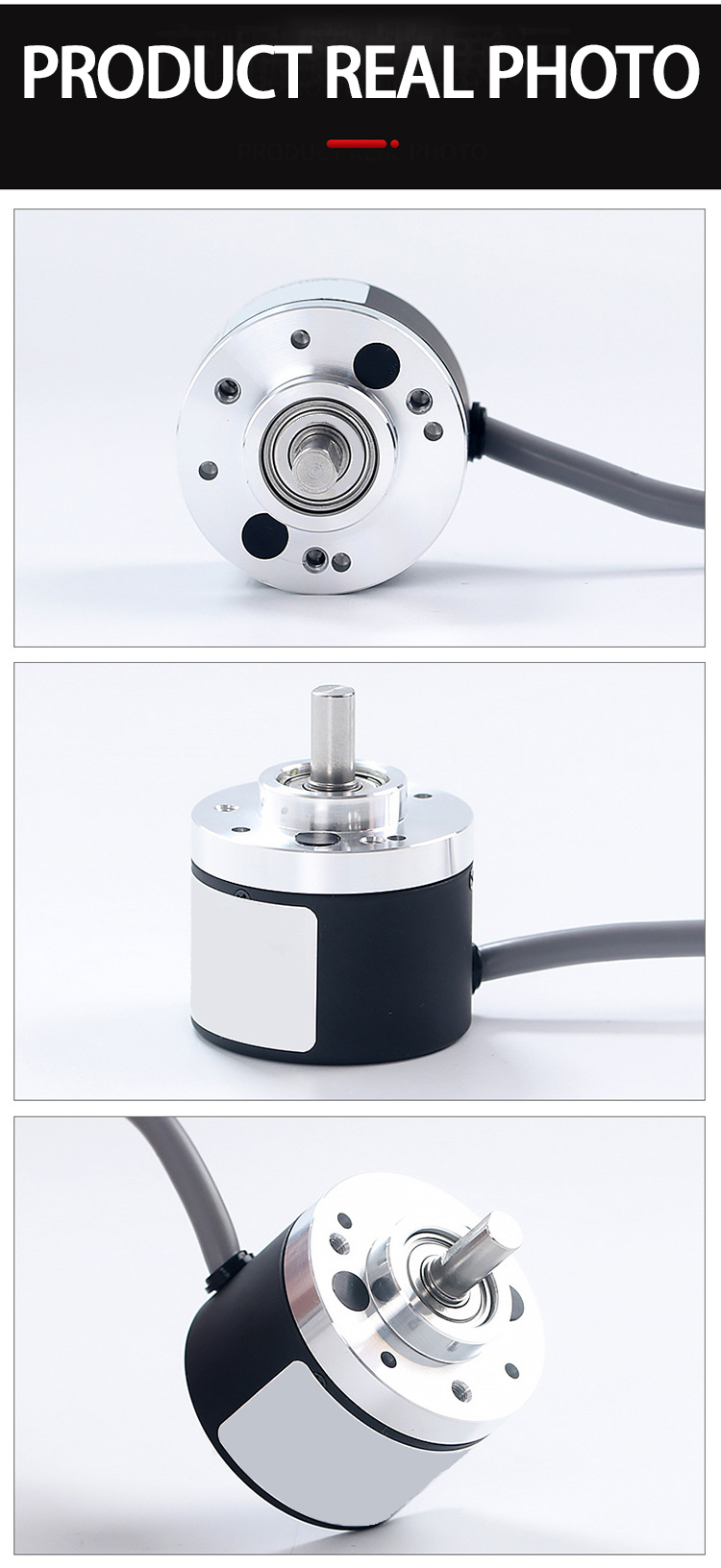

详情页3
