WST9000(0.75-3KW)
Winston
Technical parameter
| 1. standard functions maximum frequency |
| 2. Carrier frequency 0.5-16kHz the carrier frequency is automatically adjusted based on the load features. |
| 3. Input frequency resolution: digital setting 0.01Hz, Analog setting: maximum frequency 0.025%. |
| 4. Control mode: V/F control |
| 5. Startup torque: 150% |
| 6. Speed range: 1:50 |
| 7. Speed stability accuracy: 1% |
| 8. Overload capacity: G type :60s for 150% of the rated current, P type:60s for 130% of the rated current. |
| 9. Torque boost: fixed boost,Customized boost 0.1%-30.0% |
| 10. V/F curve: straight_line V/F curve,multi_point V/F curve,Square V/F curve |
| 11. Ramp mode: straight_line ramp,S_curve ramp two groups of acceleration /deceleration time with the range of 0.00-300.0s(m) |
| 12. DC braking: DC braking frequency:0.00Hz to maximum frequency , braking time: 0.0-36.0s, braking action current value:0.0%-100.0% |
| 13. JOG control: JOG frequency range：0.00Hz to maximum frequency JOG acceleration/deceleration time 0.00-300.0s |
| 14. Simple PLC,multi_speed running: it implements up to 8 speeds via the simple PLC function or combination of DI terminal states |
| 15. Built_in PID: it implements the closed_loop process control system easily. |
| 16. Auto voltage regulation(AVR): it can keep constant of output voltage automatically when the mains voltage changes. |
| 17. Over current stall control: the current is limited automatically during the running so as to avoid frequency tripping due to over current. |
| 18. Rapid current limit: it decreases the over current faults to the minimum and ensures normal running of theAC drive. |
Application
1. Wire drawing machines，industrial washing machines
2. Fluid machinery：Fan water pump，blower，music fountain.
3. Paper_making equipment,chemical industry
4. Pharmaceutical industry，textile industry
5. Public mechanical equipment，such as precision CNC machine tools etc.

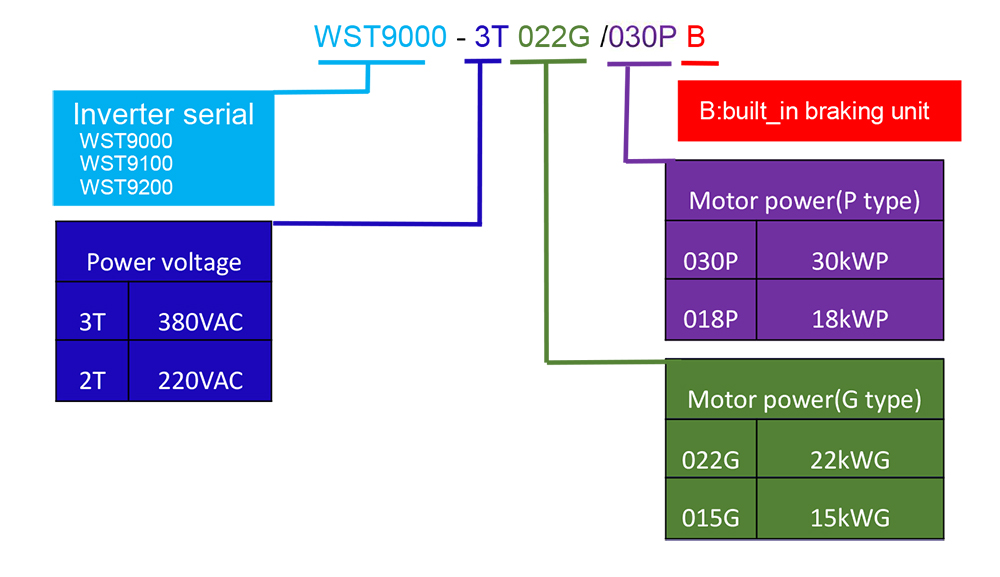

Model Explanation

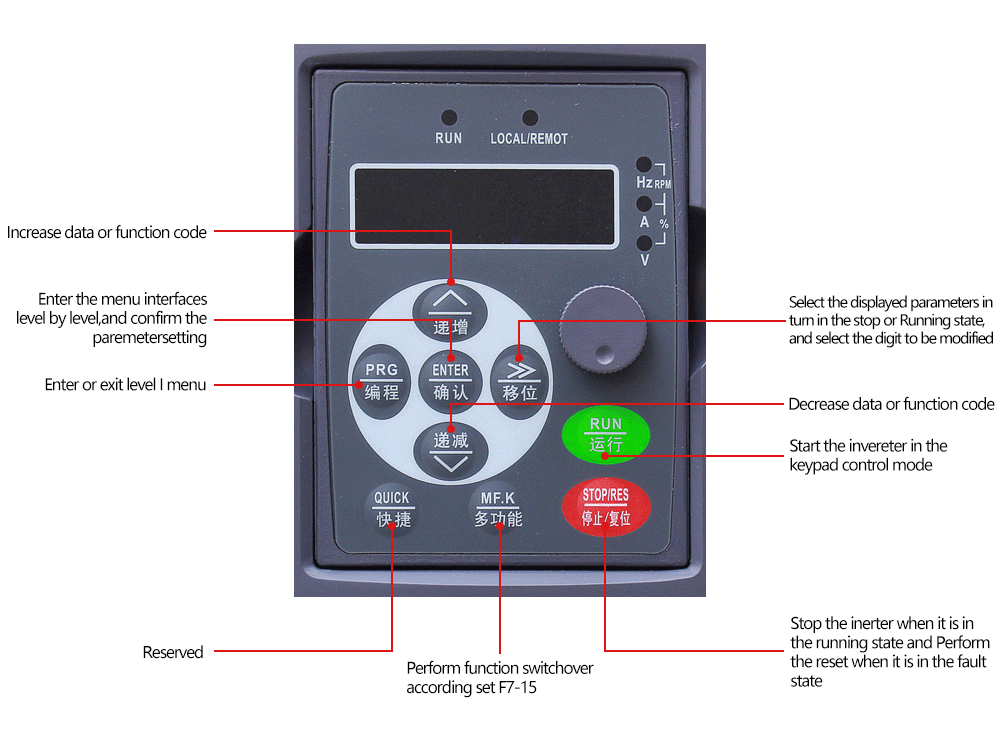

Keypad Description

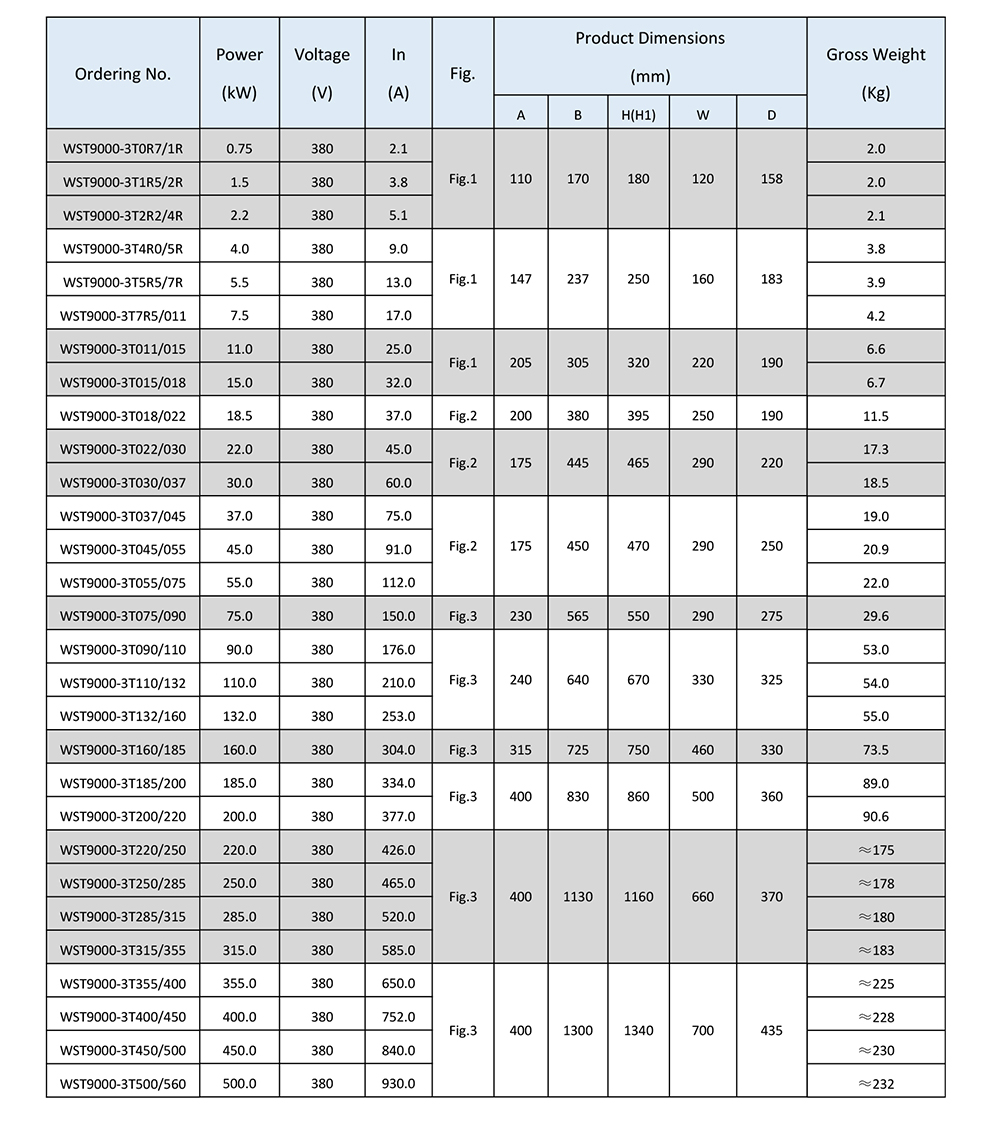

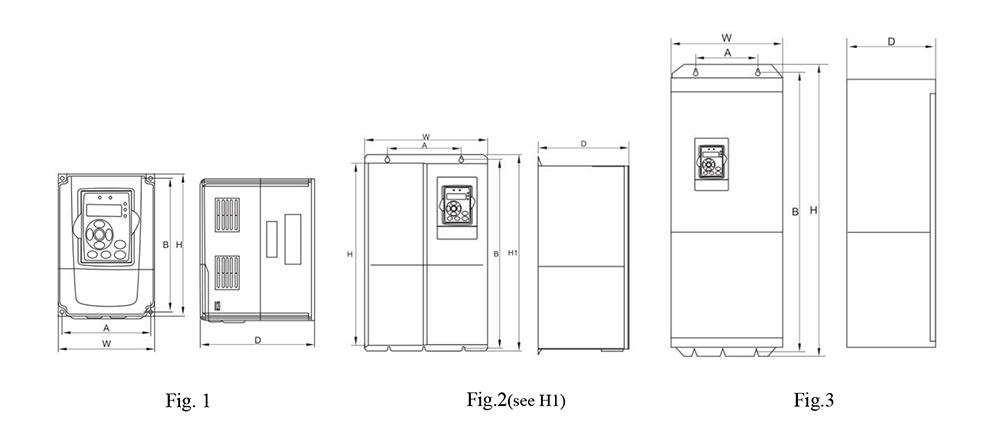

Dimension

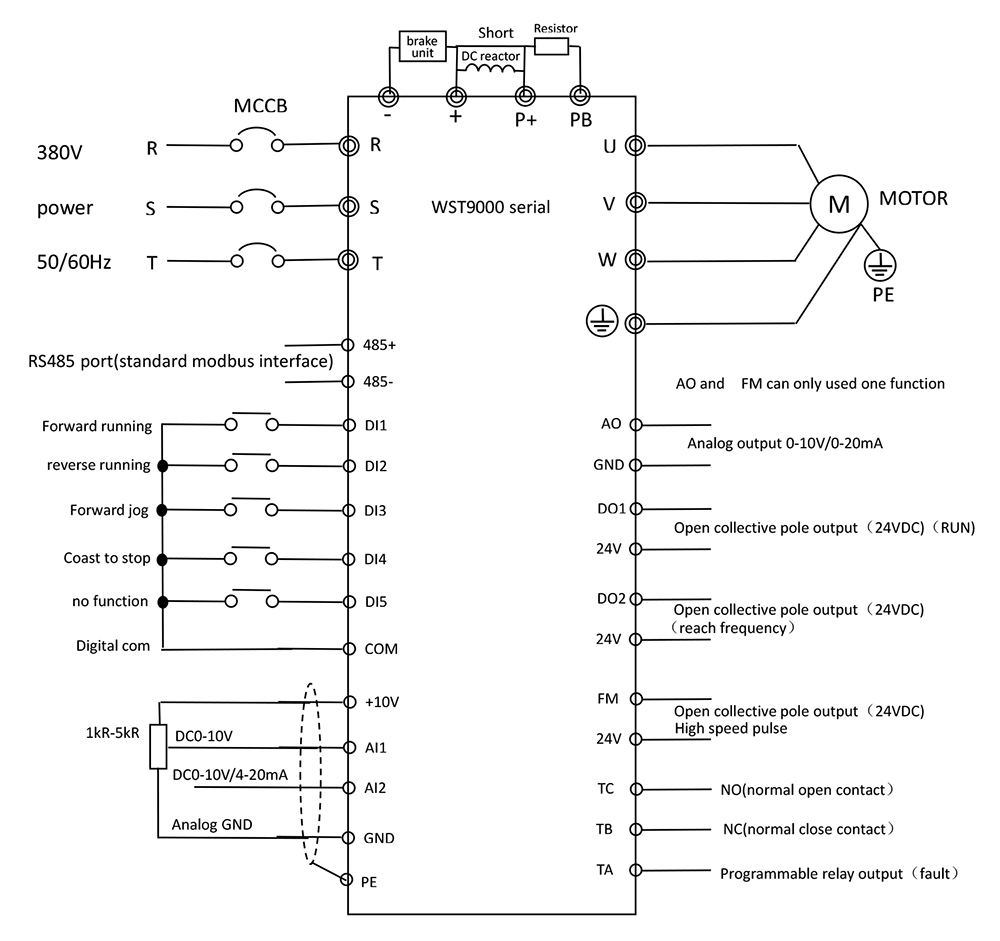

Wiring diagram
Packaging & Shipping
