WST-E11P Board Back Type Flat Button Explosion-Proof Push Button

1. This products are made by aluminum alloy, stainless steel or medium carbon stee
2. The explosion-proof signal lamp should be used together with flame proof enclosure, can't be used alone at explosive atmosphere.
Availability:
Quantity:
Inquire Add to Basket

  • WST-E11P

  • Winston

WST-E11P Board Back Type  Flat Button Explosion-Proof Push Button

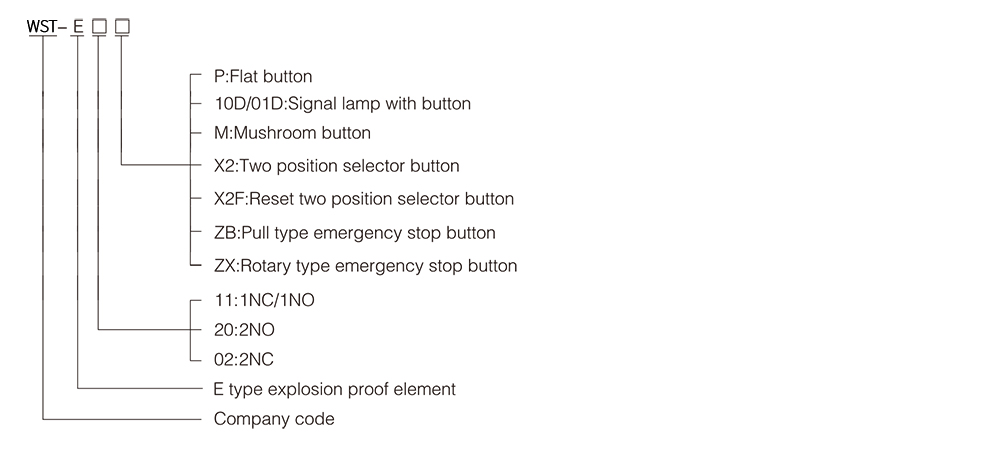

Model Explanation

型号

Application


1. Hazardous areas: Zone 1&2 or zone 20. 21. 22;

2. Explosive gas atmosphere: class I A. IIB. IC or Flammable dust atmospheres.


Features


1. This products are made by aluminum alloy, stainless steel or medium carbon stee

2. The explosion-proof signal lamp should be used together with flame proof enclosure, can't be used alone at explosive atmosphere.


Technical parameter



Rated capacity
AC-15
200V/6A   380V/4A   600V/2A

AC-13
24V/6A   480V/3A   110V/1A   220V/0.5A
Ex-mark
Exd IIB Gb Exd IIC Gb DIP A20
Degree of protection
IP65   IP66


Dimension


尺寸

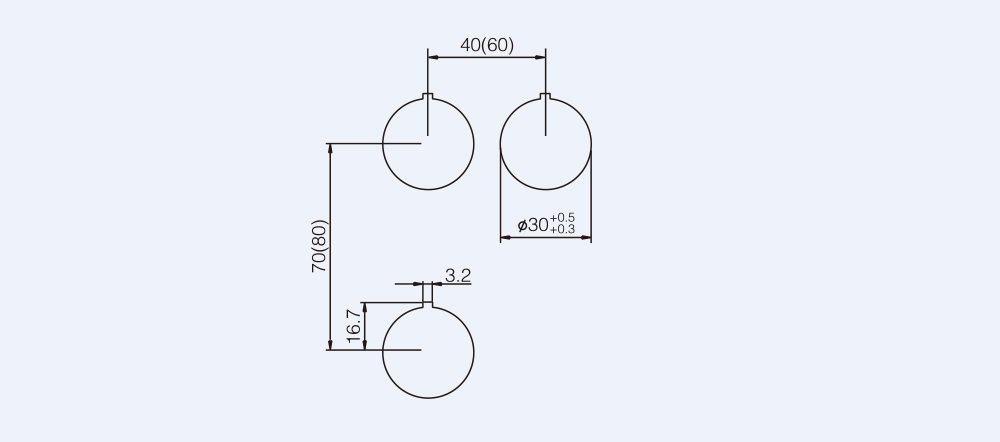

Mounting distance and cut-out dimensions


开孔

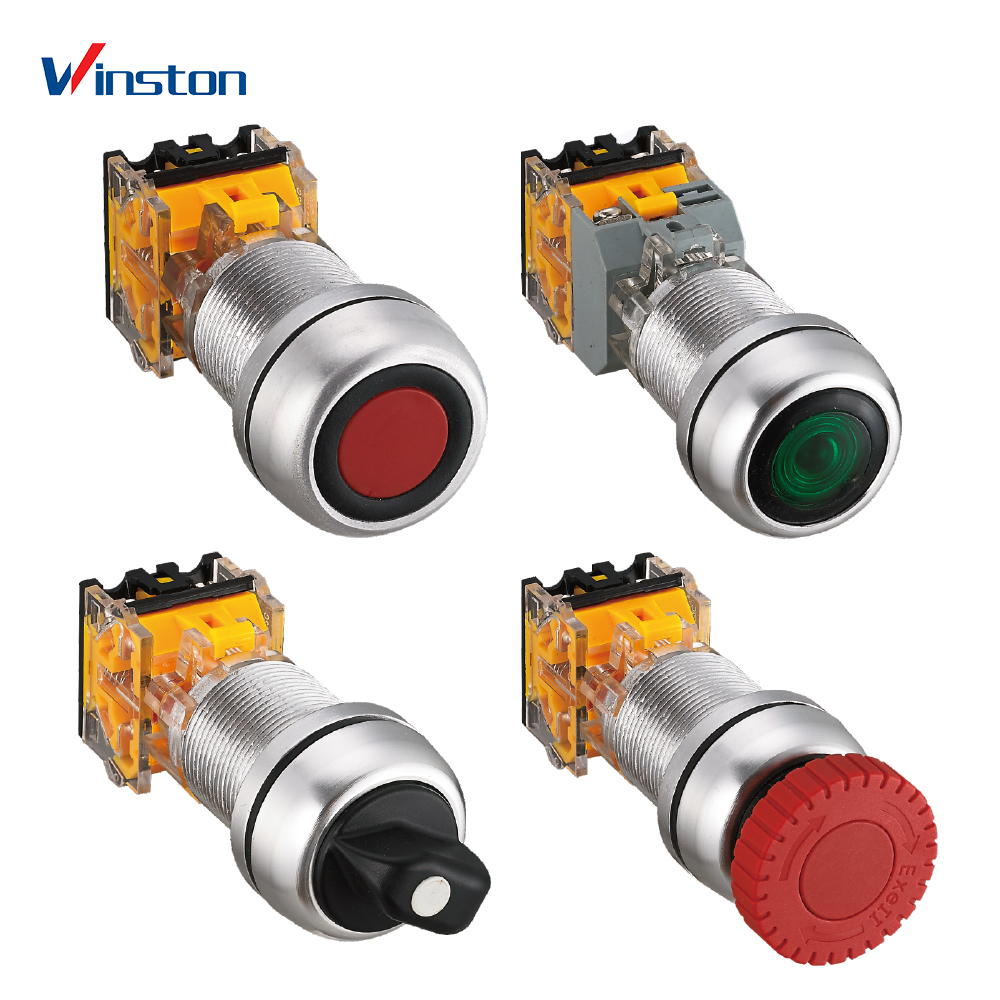

Main Products

5

防爆按钮附件


Packaging & Shipping

说明板块_01


Company Profile

说明板块_03OUR-SERVICES说明板块_04说明板块_05
