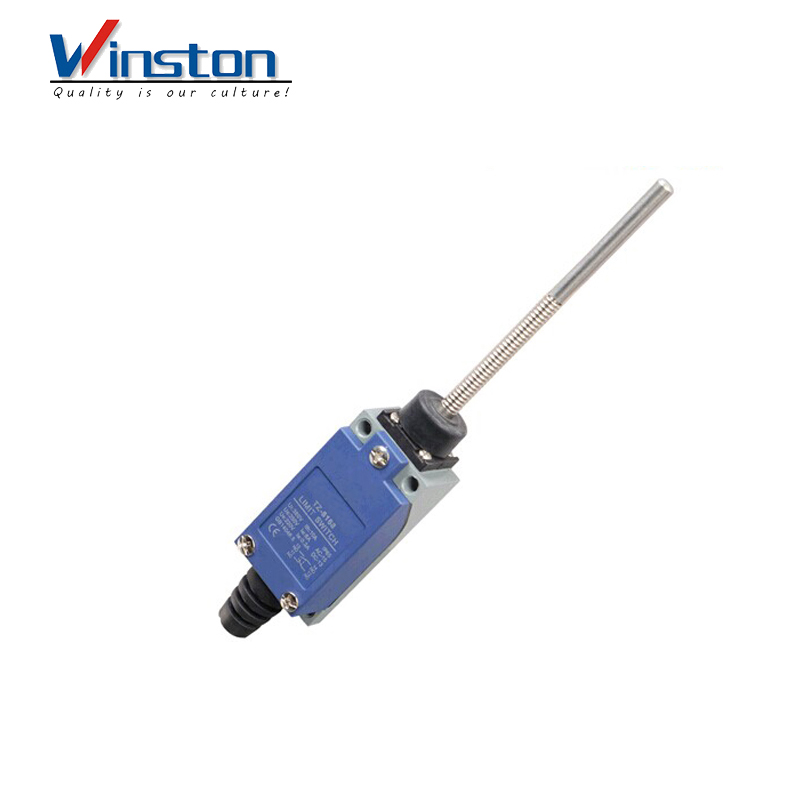

TZ-8168
Winston
● Double circuit type of limit switch
● Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
● Small volume, water-proof and oil-proof construction
● Built-in basic switch with double spring mechanism, longer mechanical life
● Smooth operation with greater OT
● Easy-to-wire circuit opening design
● Wide varity of actuators, easily use
● Double circuit type of limit switch
● Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
● Small volume, water-proof and oil-proof construction
● Built-in basic switch with double spring mechanism, longer mechanical life
● Smooth operation with greater OT
● Easy-to-wire circuit opening design
● Wide varity of actuators, easily use
Characteristics Of Contact Module
Rated operating characteristics | Inductive Inad: -AC15 B300 (Ue-240V. le-1.5A) -DC-13,R300(Ue=250V,le=0.1A) Resistive load: 250V, 5A |
Rated insulation voltage | Ui=500V,class of pollution is 3,comply with IEC 60947-1 Ui=300V,comply with UL508, CSA C22-2n° 14 |
Insulation resistance | >100MΩ,500V >100MΩ, at 500V |
Operating frequency | 120 times/min |
Electrical life | 1,000,000 times, AC-15 (Ue=240V, le=1.5A) |
Contact resistance | ≤25ΜΩ, 5V, 5mA, after ten million times of operation |
Environmental Characteristics
Normative reference | Product | IEC60947-5-1, EN60947-5-1,UL508,CSAC22-2N° 14 |
Components | IEC60204-1, EN60204-1 | |
Ambient temperature | Operation | -25...+70℃ |
Storage | -40...+70℃ | |
Vibration resistance | Comply with IEC60068-2-6 | 55Hz, 1.5mm double-amplitude |
Shock resistance | Comply with IEC60068-2-27 | 30gn 18ms, in any position |
Degree of protection | IP65, comply with IEC60529 | |
Mechanical life | 15,000,000 times |
Characteristics Of Contact Module
Rated operating characteristics | Inductive Inad: -AC15 B300 (Ue-240V. le-1.5A) -DC-13,R300(Ue=250V,le=0.1A) Resistive load: 250V, 5A |
Rated insulation voltage | Ui=500V,class of pollution is 3,comply with IEC 60947-1 Ui=300V,comply with UL508, CSA C22-2n° 14 |
Insulation resistance | >100MΩ,500V >100MΩ, at 500V |
Operating frequency | 120 times/min |
Electrical life | 1,000,000 times, AC-15 (Ue=240V, le=1.5A) |
Contact resistance | ≤25ΜΩ, 5V, 5mA, after ten million times of operation |
Environmental Characteristics
Normative reference | Product | IEC60947-5-1, EN60947-5-1,UL508,CSAC22-2N° 14 |
Components | IEC60204-1, EN60204-1 | |
Ambient temperature | Operation | -25...+70℃ |
Storage | -40...+70℃ | |
Vibration resistance | Comply with IEC60068-2-6 | 55Hz, 1.5mm double-amplitude |
Shock resistance | Comply with IEC60068-2-27 | 30gn 18ms, in any position |
Degree of protection | IP65, comply with IEC60529 | |
Mechanical life | 15,000,000 times |
