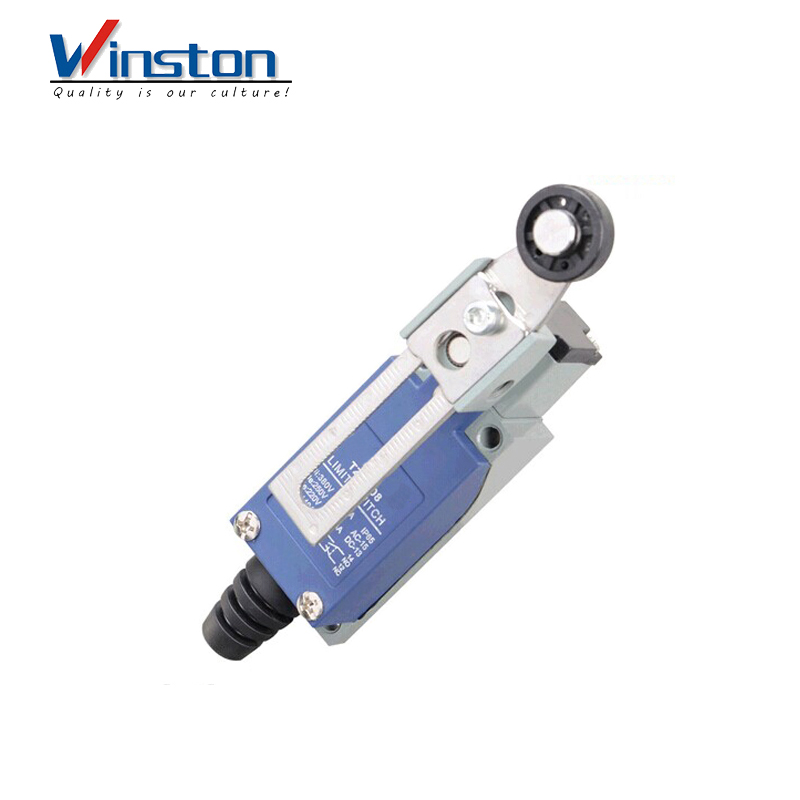

TZ-8108 Mini Limit Switch

Availability:
Quantity:
  • TZ-8108

  • Winston

 ● Double circuit type of limit switch

 ● Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)

 ● Small volume, water-proof and oil-proof construction

 ● Built-in basic switch with double spring mechanism, longer mechanical life

 ● Smooth operation with greater OT

 ● Easy-to-wire circuit opening design

 ● Wide varity of actuators, easily use

TZ-8参数4

Characteristics Of Contact Module


Rated operating characteristics

Inductive Inad:

-AC15 B300 (Ue-240V. le-1.5A)

-DC-13,R300(Ue=250V,le=0.1A)

Resistive load: 250V, 5A

Rated insulation voltage

Ui=500V,class of pollution is 3,comply with IEC 60947-1

Ui=300V,comply with UL508, CSA C22-2n° 14

Insulation resistance

>100MΩ,500V

>100MΩ, at 500V

Operating frequency120 times/min
Electrical life1,000,000 times, AC-15 (Ue=240V, le=1.5A)
Contact resistance≤25ΜΩ, 5V, 5mA, after ten million times of operation


Environmental Characteristics


Normative referenceProductIEC60947-5-1, EN60947-5-1,UL508,CSAC22-2N° 14
ComponentsIEC60204-1, EN60204-1
Ambient temperatureOperation-25...+70℃
Storage-40...+70℃
Vibration resistanceComply with IEC60068-2-655Hz, 1.5mm double-amplitude
Shock resistanceComply with IEC60068-2-2730gn 18ms, in any position
Degree of protection
IP65, comply with IEC60529
Mechanical life
15,000,000 times


TZ-8尺寸
