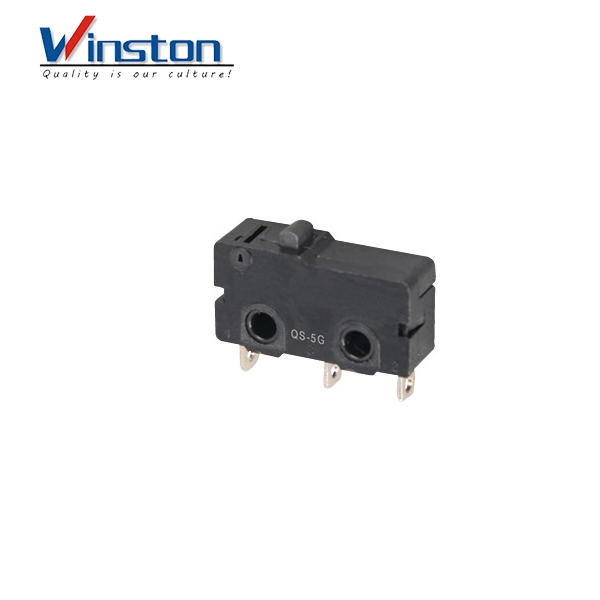

QS-5G
Winston
High precision micro switch
Features
High accuracy of action position, small contact spacing, fast and sensitive action. PT moves small.
Long life
More than 100,000 cycles (5A 250VAC)
High precision micro switch
Features
High accuracy of action position, small contact spacing, fast and sensitive action. PT moves small.
Long life
More than 100,000 cycles (5A 250VAC)
item | sort | 5A. 3A/125, 250VAC |
Allowable operating speed | 0.1mm-1m/ SEC (push-button type) | |
Allowable on-off frequency | Mechanical 400 times/min Electrical 30 times/min | |
Insulation resistance | More than 100MΩ (detected with DC500V insulation resistance meter) | |
Contact resistance | Within 30mΩ at the beginning | |
Breakdown resistance voltage | Non-connecting terminals | AC1000V 50/60Hz 1 minute |
Between non-live metal parts and terminals | AC1500V 50/60Hz 1 minute | |
Between grounding and terminals | ||
Vibration resistance | maloperation | Double amplitude 1.5mm 10-50Hz |
Impact resistance | durability | 1000m/s |
maloperation | 300m/s | |
Life span | Electrical life | More than 100,000 times |
Mechanical life | More than 10,000,000 times | |
Ambient temperature and humidity | -25-+80℃ (non-freezing), 35%-85%RH |
item | sort | 5A. 3A/125, 250VAC |
Allowable operating speed | 0.1mm-1m/ SEC (push-button type) | |
Allowable on-off frequency | Mechanical 400 times/min Electrical 30 times/min | |
Insulation resistance | More than 100MΩ (detected with DC500V insulation resistance meter) | |
Contact resistance | Within 30mΩ at the beginning | |
Breakdown resistance voltage | Non-connecting terminals | AC1000V 50/60Hz 1 minute |
Between non-live metal parts and terminals | AC1500V 50/60Hz 1 minute | |
Between grounding and terminals | ||
Vibration resistance | maloperation | Double amplitude 1.5mm 10-50Hz |
Impact resistance | durability | 1000m/s |
maloperation | 300m/s | |
Life span | Electrical life | More than 100,000 times |
Mechanical life | More than 10,000,000 times | |
Ambient temperature and humidity | -25-+80℃ (non-freezing), 35%-85%RH |
