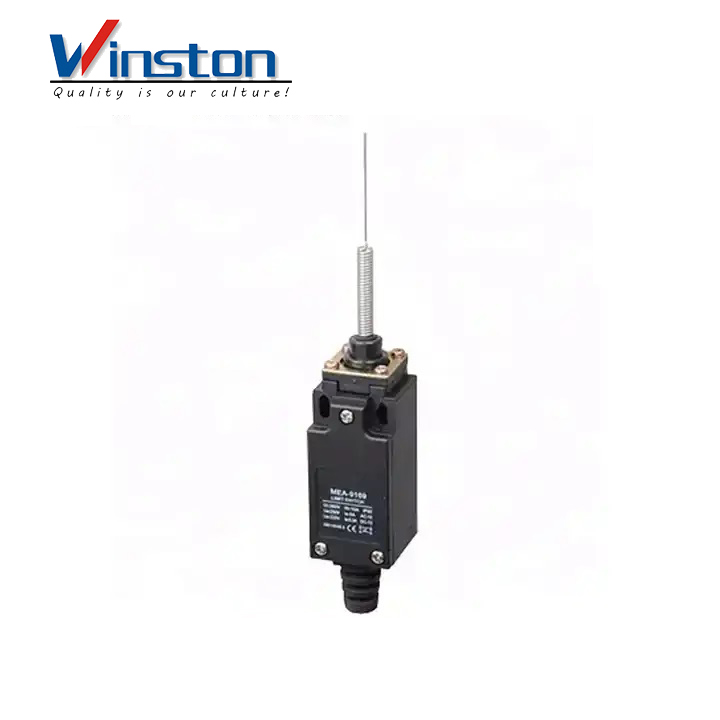

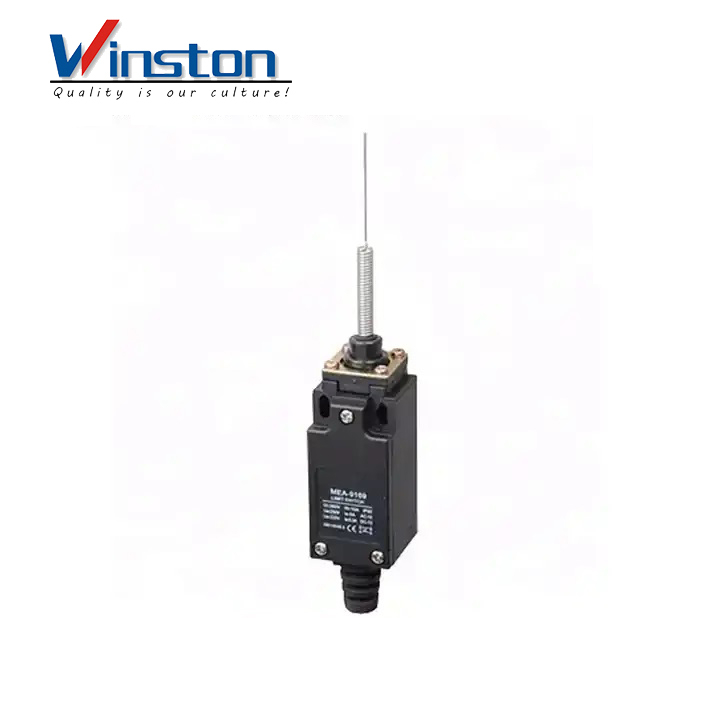

MEA-9169
Winston
Characteristics/Application
| Total plastic enclosure, light weight switch | ||
| Wide choice of heads and actuators | ||
| Captive cover screws | ||
| Dustproof, oil-tight, water-resitant | ||
| Double contact | NO/NC contacts | |
| Protection degree | IP65 | |
| Scope of work | 6A 125 or 250VAC | |
| Insulation resistance | 100MΩ max at 500VDC | |
| Max.operating freq. | Mechanical | 120 times/m |
| Electrical | 30 times/m | |
| Life test-electrical mechanical | Mechanical | More than 10 million times |
| Electrical | More than 500,000 times | |
| Ambient openating temperature | -25C-+70℃ | |
Characteristics/Application
| Total plastic enclosure, light weight switch | ||
| Wide choice of heads and actuators | ||
| Captive cover screws | ||
| Dustproof, oil-tight, water-resitant | ||
| Double contact | NO/NC contacts | |
| Protection degree | IP65 | |
| Scope of work | 6A 125 or 250VAC | |
| Insulation resistance | 100MΩ max at 500VDC | |
| Max.operating freq. | Mechanical | 120 times/m |
| Electrical | 30 times/m | |
| Life test-electrical mechanical | Mechanical | More than 10 million times |
| Electrical | More than 500,000 times | |
| Ambient openating temperature | -25C-+70℃ | |
