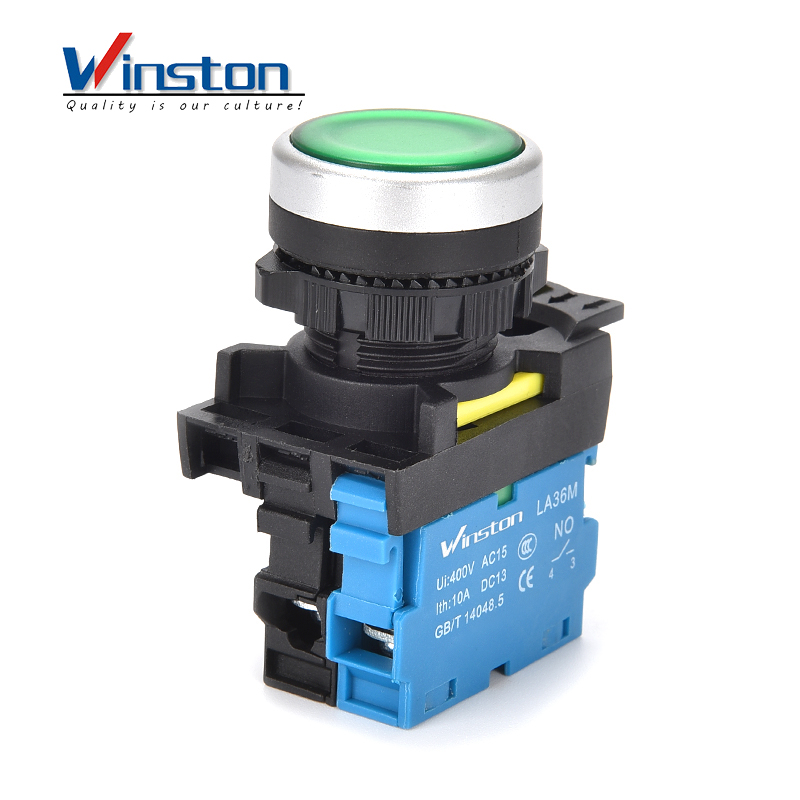

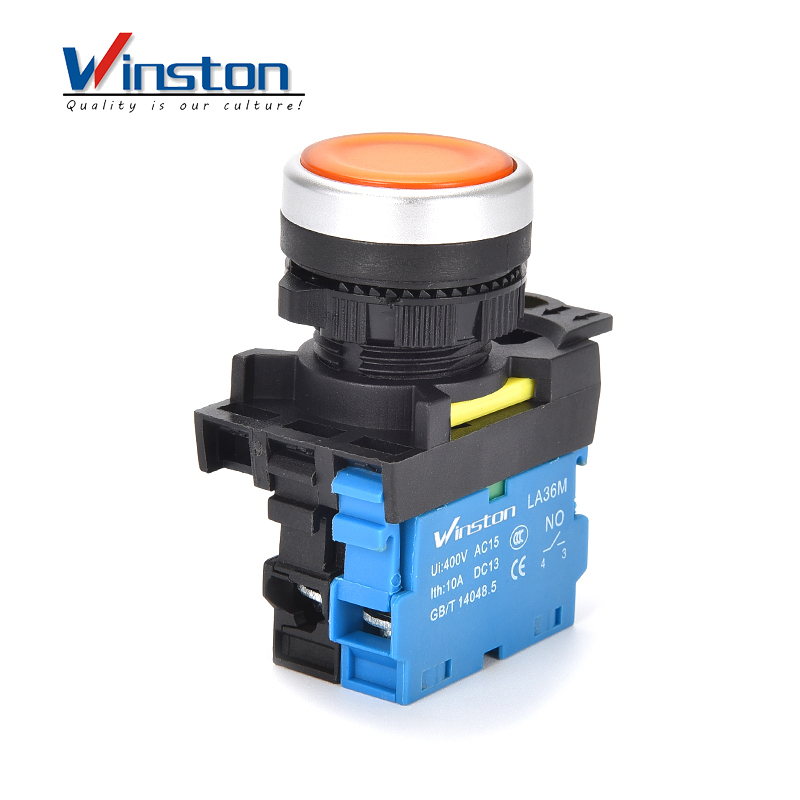

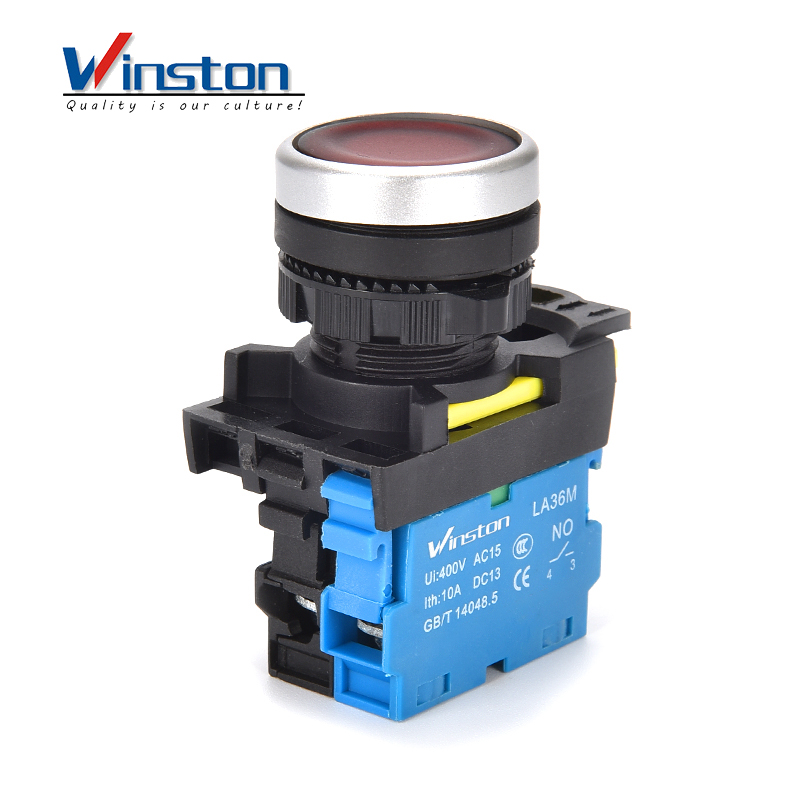

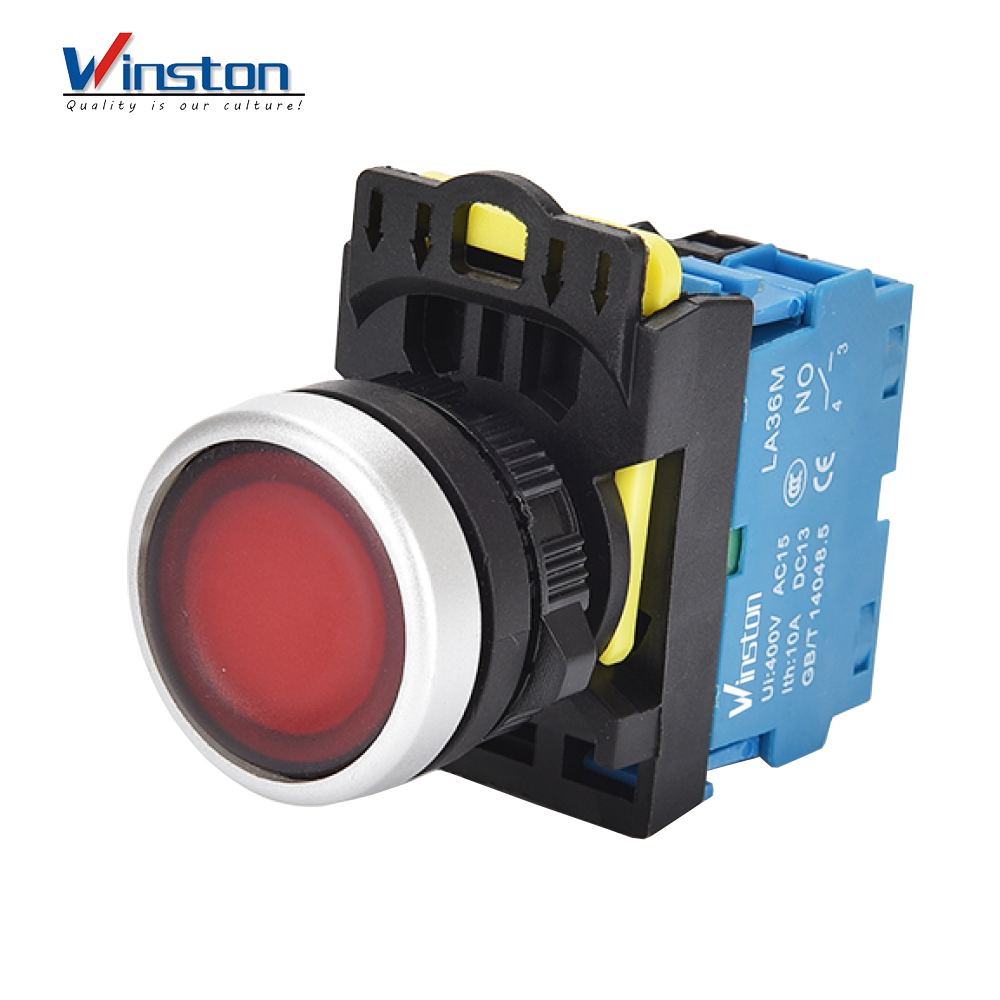

LA36M-10DN
Winston
Type description
Type description
| working temperature | -25°℃~+55°℃ (no freezing) | |
| working humidity | 45-85%RH | |
| contact resistance | ≤50mΩ | |
| insulation strength | ≥100ΜΩ | |
| power frequencywithstand voltage | 1890VAC/50Hz/60s | |
| Vibration Resistance | amplitude Is about 1.0mm/50Hz | |
| Impact Resistance | >10g | |
| mechanical life | self-reset | ≥2000, 000 times |
| selt-lock, rotary konb | ≥1000, 000 times | |
| key rotary konb, emergency stop | ≥500, 000 times | |
| electrical life | ≥200, 000 times | |
| Type Of Function | Model |
| Self-Reset Flat Cap Button Switch With LED Light | LA36M-10DN△○ |
| LA36M-01DN△○ | |
| Self-Lock Flat Cap Button Switch With LED Light | LA36M-10DNZS△○ |
| LA36M-01DNZS△○ |
| working temperature | -25°℃~+55°℃ (no freezing) | |
| working humidity | 45-85%RH | |
| contact resistance | ≤50mΩ | |
| insulation strength | ≥100ΜΩ | |
| power frequencywithstand voltage | 1890VAC/50Hz/60s | |
| Vibration Resistance | amplitude Is about 1.0mm/50Hz | |
| Impact Resistance | >10g | |
| mechanical life | self-reset | ≥2000, 000 times |
| selt-lock, rotary konb | ≥1000, 000 times | |
| key rotary konb, emergency stop | ≥500, 000 times | |
| electrical life | ≥200, 000 times | |
| Type Of Function | Model |
| Self-Reset Flat Cap Button Switch With LED Light | LA36M-10DN△○ |
| LA36M-01DN△○ | |
| Self-Lock Flat Cap Button Switch With LED Light | LA36M-10DNZS△○ |
| LA36M-01DNZS△○ |
