LA36M series 2P 3P self-lock self-reset rotary knob Switch

Availability:
Quantity:
  • LA36M-10X/21

  • Winston

Type description

01平钮_01

working temperature-25°℃~+55°℃ (no freezing)
working humidity45-85%RH
contact resistance≤50mΩ
insulation strength≥100ΜΩ
power frequencywithstand voltage1890VAC/50Hz/60s
Vibration Resistanceamplitude Is about 1.0mm/50Hz
Impact Resistance>10g
mechanical lifeself-reset≥2000, 000 times
selt-lock, rotary konb≥1000, 000 times
key rotary konb, emergency stop≥500, 000 times
electrical life≥200, 000 times


Type Of FunctionModel
2P self-reset rotary knobLA36M-10X/21
2P self-lock rotary knobLA36M-10X/22
3P self-reset rotary knobLA36M-20X/31
3P self-lock rotary knobLA36M-20X/33
3P right-self-reset left-self-lock rotary knobLA36M-20X/32


01平钮_08

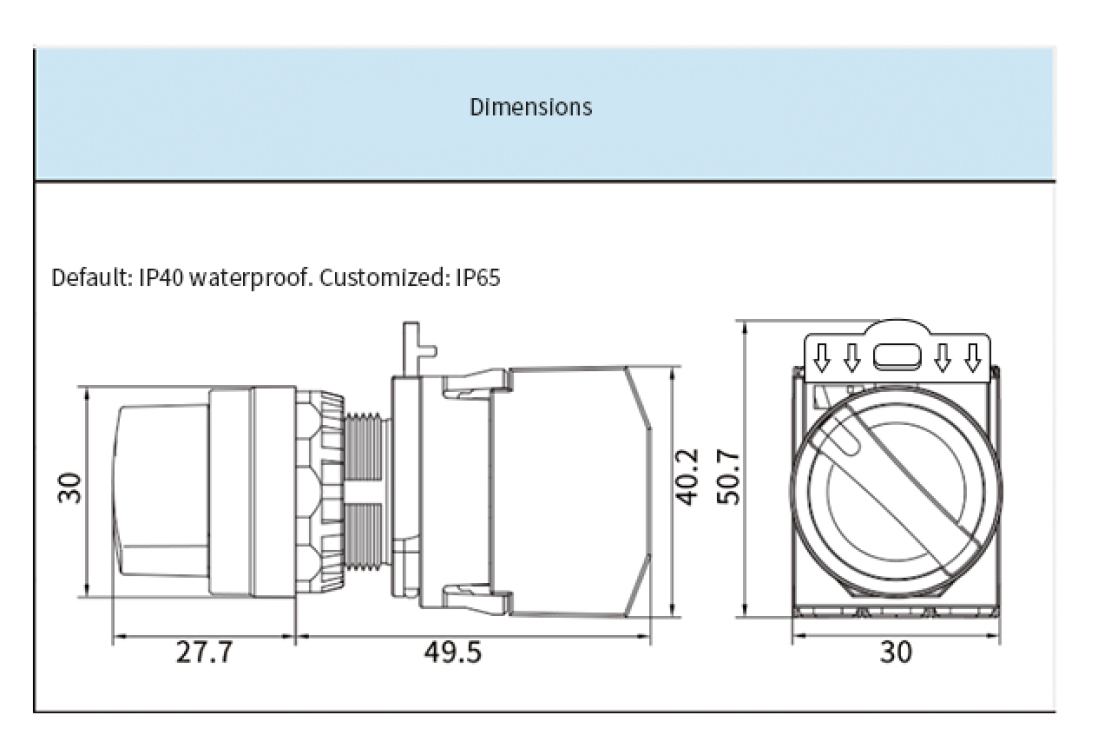

旋钮_02
